Installing the Quick-Load Guides

The Quick-Load guides may, depending on model, be factory-installed
or be enclosed in the box for optional installation by the user. They
replace the standard edge guide.
The Quick-Load guides facilitate media load from behind the print
mechanism and help guiding the media when using an external supply.
Quick-Load guides cannot be used for peel-off operation.
The standard ring-shaped edge guide is used when you want to load the
media from the side rather than from behind and is necessary for peel-off
operation
The Quick-Load guides can be used with media that is 40-60 mm
(1.57-2.36 in.) wide. The inner guide should be fi tted fl ush to the center
section, whereas the outer of the guide is adjustable for various media
widths. Refer to Chapter 4, "Media Load/Tear-Off with Quick-Load
Guides" for loading instructions.

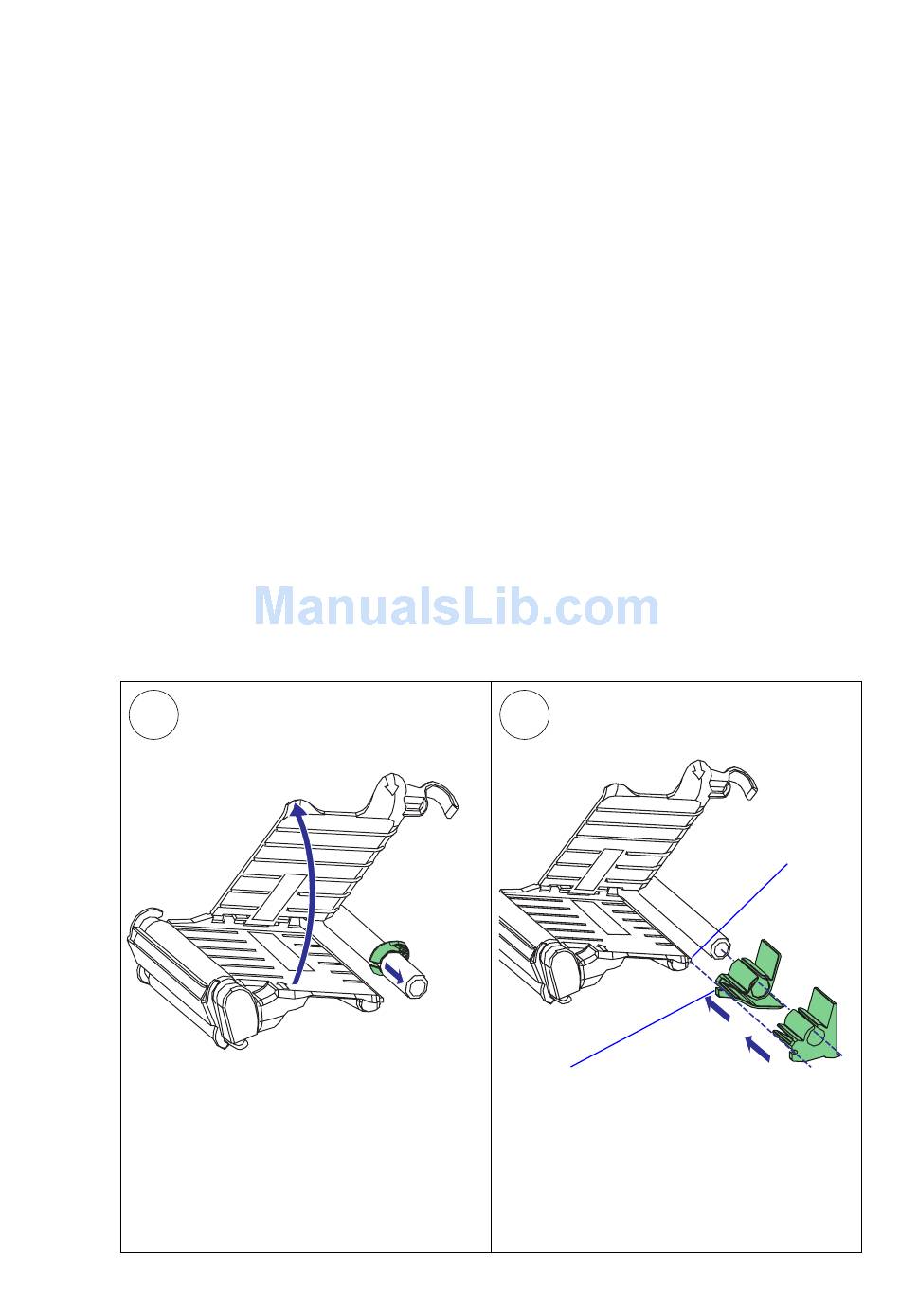

1
Lift up the upper media guide and pull
out the green edge guide (save it for
later use).
Intermec EasyCoder PF2i—User's Guide (Fingerprint version)
Chapter 12—Adjustments
2
Notch
Press the Quick-Load guides onto the
shaft as illustrated, making sure that
the notches fi t the rail at the rear of the
lower media guide.
Rail
