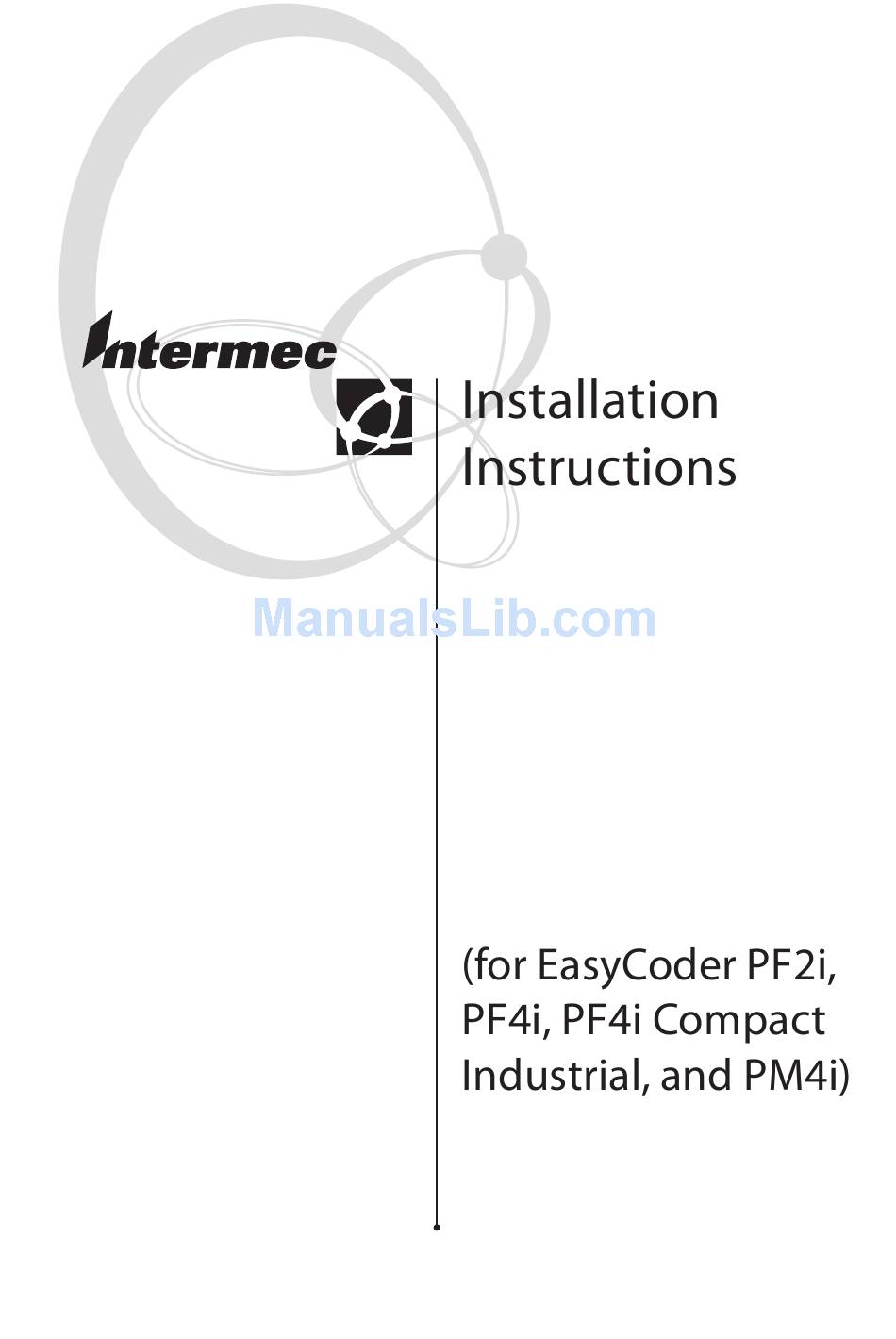

- Page 1 Thermal Printhead...
- Page 2 Service support: +46 31 869500 The information contained herein is proprietary and is provided solely for the purpose of allowing customers to operate and/or service Intermec manufactured equipment and is not to be released, reproduced, or used for any other purpose without written permission of Intermec.
- Page 3 Introduction This Installation Instructions booklet describes how to install a replace- ment printhead in an EasyCoder PF2i, PF4i, PF4i Compact Industrial, or PM4i printer. The illustrations shows installation in an EasyCoder PF4i printer, but the same principles apply to all printers mentioned above, even if the width of the printhead or the appearance of the print mechanism differ to some extent.
- Page 4 The labels must not contain any aggressive substances such as chloride or grinding substances such as titanium dioxide. • Only use original Intermec transfer ribbons or ribbons recommended by Intermec. Always switch off the power while replacing the printhead.
-
Page 5: Installation Instructions
EasyCoder PF2i, PF4i, PF4i Compact Industrial, and PM4i Installation Instructions (For illustrated instructions, refer to the printer’s User’s Guide). Switch off the power to the printer. Open the side door (and the front door, if any). Turn the printhead lift lever clockwise to raise the printhead. - Page 6 EasyCoder PF2i, PF4i, PF4i Compact Industrial, and PM4i Printhead Installation Instructions...
- Page 7 Intermec Printer AB *1-960605-00*...
