Auto Switching; Current Wan Transmit Mode; Figure 3-35 Stdma/Scpc Auto Switching Screen - Comtech EF Data Vipersat CDM-570 User Manual

V i p e r s a t C o nf i g u r a t i o n
Load switching is controlled by both the Hub and the Remote, and thus related
commands appear in both screens. The initial Load switch request is made by
the Hub. Once in SCPC mode, subsequent Load switch requests (Step Up, Step
Down) are made by the Remote.
Application switching, ToS switching, and QoS switching are controlled by the
Remote, and thus appear only in the Remote Auto Switching screen.

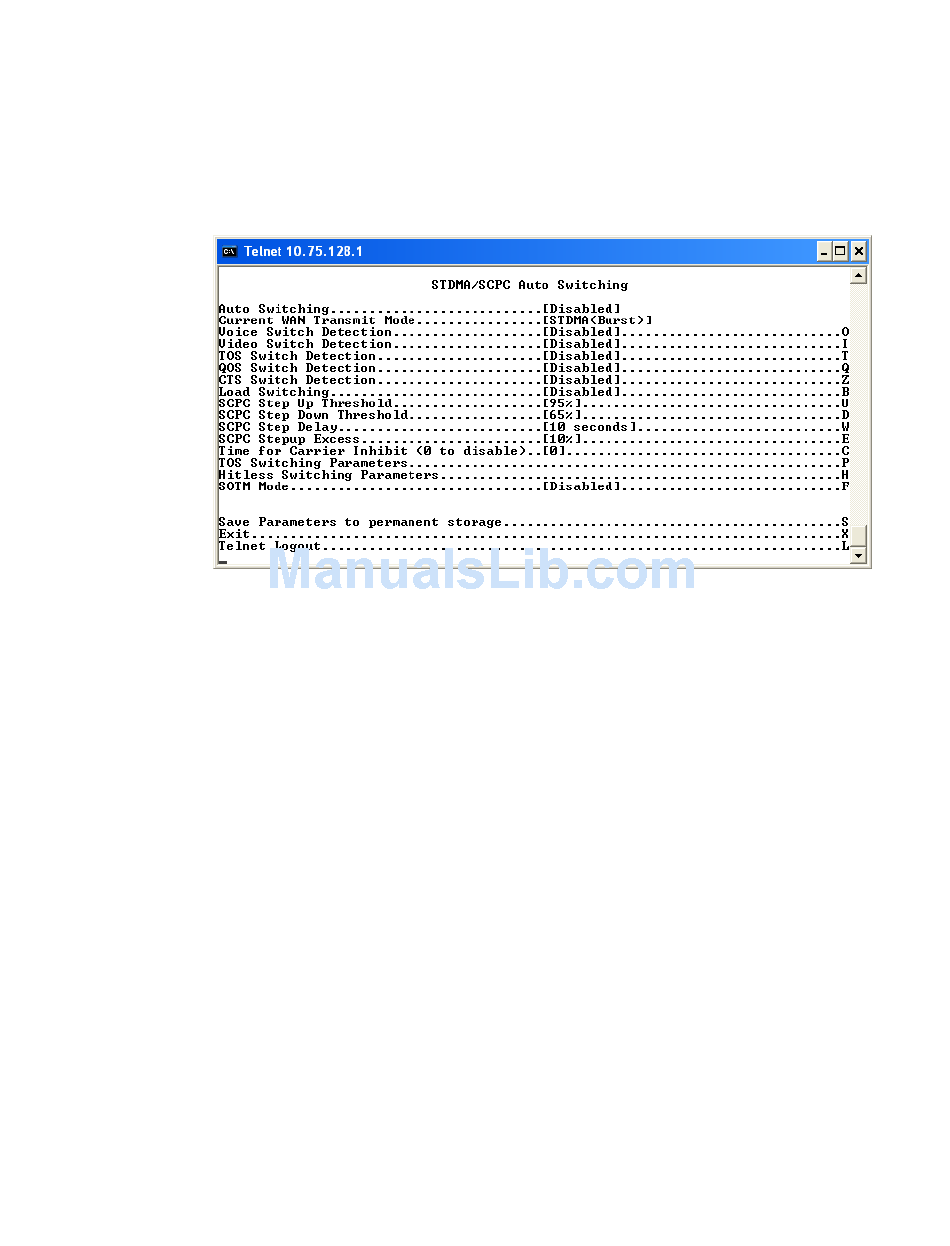

Figure 3-35 STDMA/SCPC Auto Switching screen (Remote)

Auto Switching

The Auto Switching item is for information only and shows the current config-
uration of this feature for the target CDM-570/570L. This feature is Enabled and
Disabled as described in the section "Feature Configuration" on page 3-5. Auto
Switching must be Enabled in order to utilize any of the related features/
commands in this menu.
Note that Auto Switching must be Enabled on a Hub STDMA Controller that is
configured for Entry Channel mode.

Current WAN Transmit Mode

The Current WAN Transmit Mode item is for information only and reflects
the current status (STDMA mode or SCPC mode) of the CDM-570/570L. If the
CDM-570/570L is functioning as a Hub in the network, this item will always
read Continuous as shown in figure 3-34. If the CDM-570/570L is functioning
as a Remote in the network and STDMA is enabled, this item will show
STDMA (Burst) when in STDMA mode, as shown in figure 3-35, or Continu-
ous when switched out into SCPC mode.
