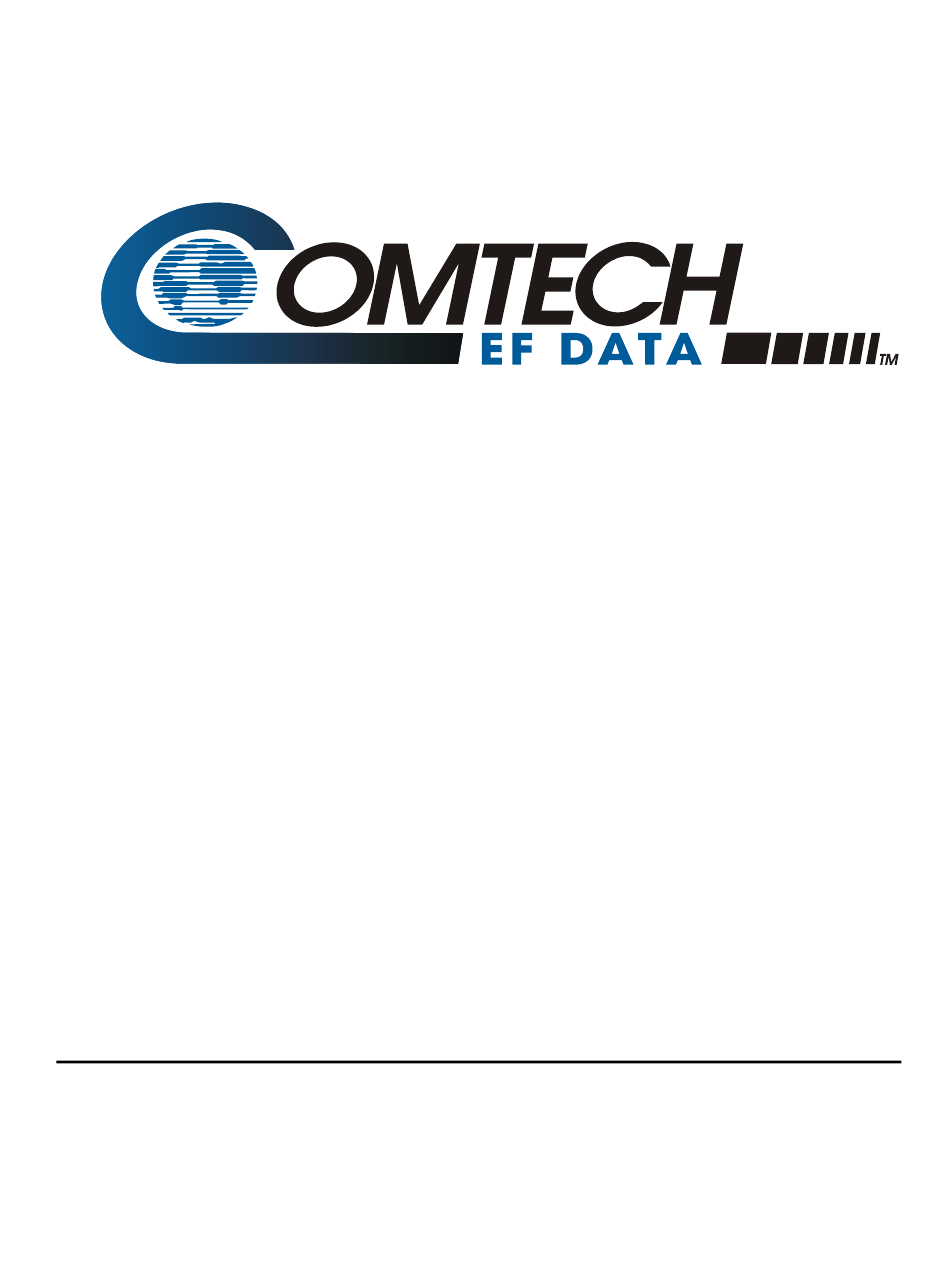

CDM-570L
L-band Satellite Modem with Optional IP Module
Installation and Operation Manual
Part Number MN/CDM570L.IOM Revision 1

Advertisement

Table of Contents
loading

Related Manuals for Comtech EF Data CDM-570L

Summary of Contents for Comtech EF Data CDM-570L

  • Page 1 CDM-570L L-band Satellite Modem with Optional IP Module Installation and Operation Manual Part Number MN/CDM570L.IOM Revision 1...
  • Page 3 This information will be incorporated into the next revision. Change Specifics: Fuses The CDM-570L is fitted with two fuses - one each for line and neutral connections. These are contained within the body of the IEC power inlet connector, behind a small plastic flap. •...
  • Page 4 Revision 1 Comtech EF Data is an ISO 9001 July 12, 2004 Registered Company. Copyright © Comtech EF Data, 2004. All rights reserved. Printed in the USA. Comtech EF Data, 2114 West 7th Street, Tempe, Arizona 85281 USA, 480.333.2200, FAX: 480.333.2161...
  • Page 5 Date: November 3, 2004 Part Number: MN/CDM570L.EB1 Related Document: CDM-570L Rev. 1, dated July 12, 2004 MN/CDM570L.IOM L-Band Satellite Modem with Optional IP Module Collating Instructions: Attach this page to page 24 Comments: This information will be incorporated into the next revision.
  • Page 6 CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM This page is intentionally blank...
  • Page 7 Date: November 8, 2004 Part Number: MN/CDM570L.EC1 Related Document: CDM-570L Rev. 1, dated July 12, 2004 MN/CDM570L.IOM L-Band Satellite Modem with Optional IP Module Collating Instructions: Attach this page to page 119 Comments: This information will be incorporated into the next revision.

  • Page 8: Table Of Contents

    Table of Contents PREFACE ........................XIII CUSTOMER SERVICE ......................XIII ABOUT THIS MANUAL......................XIV CONVENTIONS AND REFERENCES..................XIV ELECTRICAL SAFETY ......................XV TELECOMMUNICATIONS TERMINAL EQUIPMENT DIRECTIVE ..........XVI EMC (ELECTROMAGNETIC COMPATIBILITY)..............XVII WARRANTY POLICY......................XVIII CHAPTER 1. INTRODUCTION ....................1 1.1 INTRODUCTION........................1 1.1.1 EDMAC..........................2 1.1.2 AUPC..........................
  • Page 9 CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM CHAPTER 5. CONNECTOR PINOUTS..................19 5.1 CONNECTOR OVERVIEW....................19 5.2 DATA INTERFACE CONNECTOR ..................20 5.3 BALANCED G.703 INTERFACE CONNECTOR..............21 5.4 REMOTE CONTROL INTERFACE CONNECTOR............. 21 5.5 BNC CONNECTORS ......................22 5.6 UNIT ALARMS ........................
  • Page 10 CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM 6.9.2 (CONFIG, FRAME) EDMAC or EDMAC-2 ..............50 6.10 (CONFIG) INTERFACE..................... 51 6.11 (CONFIG) REFERENCE....................53 6.12 (CONFIG) MASK....................... 54 6.13 (CONFIG) ODU ......................... 56 6.13.1 (CONFIG, ODU) BUC....................56 6.13.2 (CONFIG, ODU) LNB ....................60 6.14 MONIT (MONITOR) ......................
  • Page 11 CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM 7.5.2 TPC modes available in the CDM-570L ................ 89 7.5.3 End-to-End Processing Delay..................90 7.5.4 Comparison of all TPC Modes..................91 7.6 UNCODED OPERATION (NO FEC) ..................92 CHAPTER 8. OFFSET QPSK OPERATION ................103 CHAPTER 9.
  • Page 12 CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM CHAPTER 13. SERIAL REMOTE CONTROL................. 127 13.1 INTRODUCTION......................127 13.2 RS-485 ..........................127 13.3 RS-232 ..........................128 13.4 BASIC PROTOCOL ......................128 13.5 PACKET STRUCTURE....................129 13.5.1 Start Of Packet ......................129 13.5.2 Address........................
  • Page 13 Administrative Data base ..................256 17.2.6 Reset Unit....................... 258 CHAPTER 18. SNMP INTERFACE ..................259 18.1 SNMP INTERFACE ....................259 18.2 CDM-570L MANAGEMENT INFORMATION BASE (MIB) FILES ......259 18.3 SNMP COMMUNITY STRINGS ................260 18.4 SNMP TRAPS......................261 18.5 MIB-II ......................... 262 18.5.1...
  • Page 14 CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM 18.7.1 System Group ......................273 18.7.2 Config Group ......................273 18.7.3 Monitor Group ......................274 18.7.4 Test Group ......................276 18.7.5 SaveLoad Group ....................276 18.7.6 Util Group ....................... 276 APPENDIX A. CABLE DRAWINGS ..................277 APPENDIX B.
  • Page 15 CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM USB PROCEDURE: ......................... 306...
  • Page 16 Figure 14. Comtech EF Data Turbo Product Codec Rate 3/4 QPSK/OQPSK, 8-PSK AND 16-QAM ..97 Figure 15. Comtech EF Data Turbo Product Codec Rate 7/8 QPSK/OQPSK, 8-PSK AND 16-QAM ..98 Figure 16. Comtech EF Data Turbo Product Codec Rate 21/44 QPSK, Rate 0.95 QPSK and Rate 0.95 8-PSK ..............................99 Figure 17.
  • Page 17 CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM Tables Table 1. External Connections ........................19 Table 2. Data Interface Connector Pin Assignments .................20 Table 3. Balanced G.703 Interface Connector Pin Assignments...............21 Table 4. Remote Control Interface Connector Pin Assignments ..............21 Table 5.

  • Page 18: Preface

    • To ensure that the product is not damaged during shipping, pack the product in its original shipping carton/packaging. • Ship the product back to Comtech EF Data. (Shipping charges should be prepaid.) For more information regarding the warranty policies, see p. xiv.

  • Page 19: About This Manual

    About this Manual This manual provides installation and operation information for the Comtech EF Data CDM-570L satellite modem with IP Module. This is a technical document intended for earth station engineers, technicians, and operators responsible for the operation and maintenance of the CDM-570L with IP Module.

  • Page 20: Electrical Safety

    The user should observe the following instructions: IMPORTANT Fuses The CDM-570L is fitted with two fuses - one each for line and neutral connections. These are contained within the body of the IEC power inlet connector, behind a small plastic flap.

  • Page 21: Telecommunications Terminal Equipment Directive

    The equipment is not designed for connection to a power system that has no direct connection to ground. The CDM-570L is shipped with a line inlet cable suitable for use in the country of operation. If it is necessary to replace this cable, ensure the replacement has an equivalent specification.

  • Page 22: Emc (Electromagnetic Compatibility)

    (Also tested to FCC Part 15 Class B) Immunity: EN 50082 Part 1 - Generic immunity standard, Part 1: Domestic, commercial and light industrial environment. Additionally, the CDM-570L has been shown to comply with the following standards: EN 61000-3-2 Harmonic Currents Emission EN 61000-3-3...

  • Page 23: Warranty Policy

    For equipment under warranty, the customer is responsible for freight to Comtech EF Data and all related custom, taxes, tariffs, insurance, etc. Comtech EF Data is responsible for the freight charges only for return of the equipment from the factory to the customer.

  • Page 24: Chapter 1. Introduction

    Chapter 1. INTRODUCTION Figure 1. CDM-570L 1.1 Introduction The CDM-570L (Figure 1-1, shown above) is an L-band Satellite Modem, intended for closed network applications. • It offers variable data rates from 2.4 kbps to 5 Mbps, in BPSK, QPSK, Offset QPSK, 8-PSK, and 16-QAM modes.

  • Page 25: Edmac

    1.1.2 AUPC An important feature in the CDM-570L is the addition of Automatic Uplink Power Control (AUPC). This feature enables the modem to automatically adjust its output power to maintain the Eb/No of the remote end of the satellite link constant. This provides protection against rain fading, a particularly severe problem with Ku-band links.

  • Page 26: Verification

    1.1.5 Data Interfaces The CDM-570L includes, as standard, a universal data interface that eliminates the need to exchange interface cards for different applications. The interfaces offered include: • EIA-422 (EIA530) DCE (at rates up to 5 Mbps) •...

  • Page 27: Fast Accessible Options

    1.3.2 FAST System Theory FAST is an enhancement feature available in Comtech EF Data products, enabling on- location upgrade of the operating feature set without removing a modem from the setup. When service requirements change, the operator can upgrade the topology of the modem to meet those requirements within minutes after confirmation by Comtech EF Data.

  • Page 28: Implementation

    The access code can be purchased at any time from Comtech EF Data. Once obtained, the access code is loaded into the unit through the front panel keyboard or the rear remote port.

  • Page 29: Mn/Cdm570L.iom

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM This page is intentionally blank...

  • Page 30: Chapter 2. Installation

    Chapter 2. INSTALLATION 2.1 Unpacking Inspect shipping containers for damage. If shipping containers are damaged, keep them until the contents of the shipment have been carefully inspected and checked for normal operation. The modem and manual are packaged in pre-formed, reusable, cardboard cartons containing foam spacing for maximum shipping protection.

  • Page 31: Mounting

    MN/CDM570L.IOM 2.2 Mounting If the CDM-570L is to be mounted in a rack, ensure that there is adequate clearance for ventilation, particularly at the sides. In rack systems where there is high heat dissipation, forced air cooling must be provided by top or bottom mounted fans or blowers. Under no circumstance should the highest internal rack temperature be allowed to exceed 50°C...

  • Page 32: Figure 2. Installation Of The Optional Mounting Bracket, Kt/6228-2

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM Equipment Rack Mounting Rail #10 Socket head screw BRACKET BOLTS Support Bracket Bracket #10 Flat Washer #10 Hex Nut Back of Modem * Note: Components of mounting kit KT/6228-1 Figure 2. Installation of the Optional Mounting Bracket, KT/6228-2...

  • Page 33: Configuration

    ‘FRONT PANEL OPERATION’ section). The demod should synchronize, and the green RECEIVE TRAFFIC LED should illuminate. If the unit does not pass this test, call Comtech EF Data Customer Support department for assistance. 2.5 Connect External Cables Having verified correct operation in IF loop, enter the desired configuration, and proceed...

  • Page 34: Chapter 3. Functional Description

    Chapter 3. FUNCTIONAL DESCRIPTION The CDM-570L has two fundamentally different types of interface - IF and data. • The data interface is a bi-directional path which connects with the customer’s equipment (assumed to be the DTE) and the modem (assumed to be the DCE).

  • Page 35: Mn/Cdm570L.iom

    32-bit RISC microprocessor, which also controls all front panel, serial and Ethernet interfaces. Physically the CDM-570L modem is comprised of a single printed circuit card assembly, with two expansion slots for FEC codecs and other option cards.

  • Page 36: Chapter 4. Physical Description

    DESCRIPTION 4.1 Introduction The CDM-570L is constructed as a 1U high rack-mounting chassis, which can be free- standing, if desired. Rack handles at the front facilitate removal from and placement into a rack. Figure 3 shows the front panel of the modem.

  • Page 37: Rear Panel

    PC. 4.3 Rear Panel Figure 4. Rear Panel (Shown with optional IP Module Ethernet Interface installed) External cables are attached to connectors on the rear panel of the CDM-570L. These comprise: • IEC line input connector •...

  • Page 38: Mn/Cdm570L.iom

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM IEC line input connector The IEC line input connector contains the ON/OFF switch for the unit. It is also fitted with two fuses, one each for line and neutral connections (or L1, L2, where appropriate).

  • Page 39: Mn/Cdm570L.iom

    Module) This is a standard RJ45 receptacle for connecting UTP cable to an Ethernet hub, router, switch, PC, etc. Used for Ethernet traffic, management of CDM-570L and IP Module functions via Telnet/HTTP/SNMP, upgrading of CDM-570L IP Module software. Serial Console port (Console, with optional IP Module)

  • Page 40: Dimensional Envelope

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM 4.4 Dimensional Envelope 16 inches (406.4 mm) UNIT STATUS STORED EVENT 1.72 inches Comtech CDM-570L Modem TRANSMIT TRAFFIC REMOTE USB 1.1 CDM-570L Firmware Version 1.0.1 (44 mm) RECEIVE TRAFFIC EDMAC MODE...

  • Page 41: Cdm-570L Satellite Modem With Ip Module Revision

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM This page is intentionally blank...

  • Page 42: Chapter 5. Connector Pinouts

    Chapter 5. CONNECTOR PINOUTS 5.1 Connector Overview The rear panel connectors (Figure 6) provide all necessary external connections between the modem and other equipment. Table 1. External Connections Name Connector Type Function Rx IF ‘N’ type (female) RF Input Tx IF ‘N’...

  • Page 43: Data Interface Connector

    Furthermore, pins 6, 18, 20, 21, 22, 23 and 25 are reserved for use by the 1:N system. DO NOT connect signals to any of these pins in this mode. Certain pins have DC voltages present that may damage equipment other than a Comtech EF Data redundancy switch. •...

  • Page 44: Balanced G.703 Interface Connector

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM 5.3 Balanced G.703 Interface Connector The Balanced G.703 connection is a 15-pin female connector located on the rear panel of the modem. Refer to Table 3 for pin assignments. Table 3. Balanced G.703 Interface Connector Pin Assignments...

  • Page 45: Bnc Connectors

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM 5.5 BNC Connectors There are three BNC connectors located on the rear panel of the modem. Refer to Table 5 for pin assignments. Table 5. BNC Connectors Description Direction Connector EXT REF External Reference Input G.703 Out...

  • Page 46: 1:1 Control Connector

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM 5.7 1:1 Control Connector The 1:1 Control connection is a 9-pin female connector located on the rear panel of the modem. Refer to Table 7 for pin assignments. only The 1:1 Control connector is intended for connection to a CRS-170 Redundancy Switch.

  • Page 47: Ethernet Interface Connectors (Traffic And M&C)

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM 5.9 Ethernet Interface Connectors (Traffic and M&C) The 10/100 BaseT Ethernet connector is a RJ45-8 modular jack located on the rear panel. This interface is used for data traffic and M&C. This interface is a Network Interface Card (NIC) pinout.

  • Page 48: Chapter 6. Front Panel Operation

    6.1 Introduction Figure 7. Front Panel View The user can fully control and monitor the operation of the CDM-570L from the front panel, using the keypad and display. Nested menus are used, which display all available options, and prompt the user to carry out a required action.

  • Page 49: Table 10. Front Panel Led Indicators

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM Table 10. Front Panel LED Indicators Color Condition A Unit Fault exists (Example: PSU fault) Unit No Unit Faults, but a Traffic Fault, or ODU (BUC or LNB) fault exists Orange...

  • Page 50: Figure 8. Keypad

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM The keypad is shown in Figure 8: Figure 8. Keypad The function of these keys is as follows: This key is used to select a displayed function or to execute a (Enter) modem configuration change.

  • Page 51: Figure 9. Menu Trees

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM SELECT CONFIGURE CONFIGURE REMOTE CONTROL MONITOR REMOTE TEST ADDR INTERFACE LOCAL INFORMATION TRANSMIT BAUD RATE REMOTE SERIAL SAVE/LOAD RECEIVE ETHERNET UTILITY FRAME IP ADDRESS/RANGE INTERFACE CONFIGURE ALL REFERENCE (COMPLETE CONFIGURATION) ALARM MASKS...

  • Page 52: Opening Screen

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM 6.2 OPENING SCREEN This screen is displayed whenever power is first applied to the unit. If the Internal Reference warm-up delay feature has been disabled (see under UTIL, REF, Warm-up Delay) the following screen is displayed:...

  • Page 53: Config

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM 6.4 CONFIG Move the cursor to the desired choice using the ◄ ► arrow keys, then press ENTER. CONFIG: Remote All Tx Rx Frame Intfc Ref Mask ODU (Remote Control) This menu sub-branch permits the user to define whether the unit is being controlled locally, or remotely.

  • Page 54: Config) Remcont (Remote Control)

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM 6.5 (CONFIG) REMCONT (Remote control) Select Local or Remote using the ◄ ► arrow keys, then press ENTER. Remote Control: Local Remote (◄ ►,ENTER) If Local is selected then remote control will be disabled. Remote monitoring is still possible.

  • Page 55: Config, Remote) Ethernet

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM (CONFIG, REM, INTFC, ADDR) RS485 BUS ADDRESS However, if either RS485 mode is selected, the user will be further prompted: RS485 Bus Address: 0245 (◄ ►,▲ ▼,ENTER) Edit the RS485 bus address of this unit. This is accomplished by selecting the digit to be edited, using the ◄...

  • Page 56: Config) All

    (Clock Source) This sub-menu permits the user to select the clock source for transmission. This can be from the CDM-570L’s high stability internal source, from an external source, or from the distant-end of the satellite link (loop timed).

  • Page 57: Config, Tx) Fec Type

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM VERY IMPORTANT NOTE: The FEC type takes the highest configuration priority, and the selection here depends on what, if any, optional plug-in codecs are installed. The choice of FEC type then determines what modulation types, code rates, and data rates are available.

  • Page 58: Config, Tx) Modulation

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM 6.7.2 (CONFIG, TX) MODULATION Modulation: BPSK QPSK OQPSK 8-PSK 16-QAM 8-QAM IMPORTANT NOTE: All possible choices are presented at all times. If an option is not installed (either Hardware, or FAST) or valid , the ◄ ► arrow keys will force the cursor to skip past the unavailable choice.

  • Page 59: Config, Tx) Data Rate

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM 6.7.4 (CONFIG, TX) DATA RATE Tx Dat Rate:5000.000kbps 2500.000ksym (◄ ►,▲ ▼,ENT) The overall range of data rates is from 2.4 to 5000 kbps. The overall range of symbol rates is from 4.8 to 2500 ksymbols/second. The minimum and maximum data rates are dependent on modulation type and FEC encoder rate.

  • Page 60: Config, Tx) Frequency

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM Important Note: Where noted in the table above, if EDMAC framing is employed, the upper data rate will be reduced by 5% for data rates up to 2.048 Mbps, and by 1.6% for data rates above 2.048 Mbps, where EDMAC2 framing is used, or for Rate 21/44 BPSK/QPSK Turbo, or...

  • Page 61: Config, Tx) Power

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM lock, because the TX ouput is off. The net result is that the demod will not lock, and the Tx carrier will not turn on.) USE THE RTI FEATURE WITH EXTREME CARE! 6.7.7 (CONFIG, TX) POWER...

  • Page 62: Mn/Cdm570L.iom

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM (CONFIG, TX, PWR, MODE) AUPC Target-Eb/No Max-Range Alarm DemodUnlock (◄ ►) Select either Target EbNo, Max-Range, Alarm or Demod-Unlock using the ◄ ► arrow keys. The user should then press ENTER.

  • Page 63: Config, Tx) Scrambling

    Select Int (Internal), Ext (External) or Loop-Timed, using the ◄ ► arrow keys, then press ENTER. Internal indicates that the CDM-570L will supply a clock to the DTE, which is derived from its internal high-stability source. If the IP Module is installed and the selected Data Interface is IP, then Internal is the only valid selection.

  • Page 64: Config, Tx) Inversion Functions

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM Loop-Timed indicates that the transmit timing source should be the receive clock, from the direction of the satellite. This is a useful mode, in that no external connection needs to be made in this mode. If the demodulator loses lock, or if there is no receive signal present, the internal clock is substituted.

  • Page 65: Mn/Cdm570L.iom

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM The sub-branches available are: Rx:FEC Dem Code Data Frq Acq Descram Buf Inv EbNo Select FEC, Dem, Code, Data, Frq, Acq, Descram, Buf, Inv or EbNo using the ◄ ► arrow keys, then press ENTER. The user will then be taken to a further sub-menu. Each...

  • Page 66: Config, Rx) Fec Type

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM VERY IMPORTANT NOTE: The FEC type takes the highest configuration priority, and the selection here depends on what, if any, optional plug-in codecs are installed. The choice of FEC type then IMPORTANT determines what demodulation types, code rates, and data rates are available.

  • Page 67: Config, Rx) Demodulation

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM 6.8.2 (CONFIG, RX) DEMODULATION Demodulation: BPSK QPSK OQPSK 8-PSK 8-QAM 16-QAM IMPORTANT NOTE: All possible choices are presented at all times. If an option is not installed (either Hardware, or FAST) or valid, the ◄ ► arrow keys will force the cursor to skip past the unavailable choice.

  • Page 68: Config, Rx) Code Rate

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM 6.8.3 (CONFIG, RX) CODE RATE Rx Code Rate: 5/16 21/44 1/2 2/3 3/4 7/8 0.95 Unc IMPORTANT NOTE: All possible choices are presented at all times. If an option is not installed (either Hardware, or FAST) or valid, the ◄...

  • Page 69: Config, Rx) Frequency

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM Viterbi QPSK/OQPSK Rate 7/8 8.4 kbps to 4.375 Mbps Yes – see note below Viterbi + RS BPSK Rate 1/2 2.4 kbps to 1.112 Mbps Yes – see note below Viterbi + RS...

  • Page 70: Config, Rx) Acq

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM 6.8.6 (CONFIG, RX) ACQ Demod Acquisition Range: (▲ ▼,ENTER) +/- 010 kHz Edit the acquisition search range of the demodulator (the value entered here determines the amount of frequency uncertainty the demodulator will search over in order to find and lock to an incoming carrier).

  • Page 71: Config, Rx) Buffer

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM The default descrambler types are: Uncoded: ITU V.35 (Intelsat variant) IMPORTANT Viterbi, no framing: ITU V.35 (Intelsat variant) Viterbi, EDMAC frame: Comtech proprietary, frame synchronized Viterbi + RS or TCM/RS: Per IESS-308, frame synchronized...

  • Page 72: Config, Rx) Inversion Functions

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM 6.8.9 (CONFIG, RX) INVERSION FUNCTIONS Rx Inversion functions: Data (◄ ►,ENT) Spectrum Select Spectrum or Data, using the ◄ ► arrow keys, then press ENTER. If Spectrum is selected, the following sub-menu will be displayed: Select Normal or Inverted, using the ◄...

  • Page 73: Config, Frame) Unframed

    ‘standard’ configuration. 6.9.2 (CONFIG, FRAME) EDMAC or EDMAC-2 Comtech EF Data’s proprietary framing is added. The framing permits the bi-directional passing of M&C and AUPC data between local and distant-end units. EDMAC is backwards compatible with the CDM-500, CDM-550, CDM-550T, CDM-600 and CDM- 600L.

  • Page 74: Config) Interface

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM An EDMAC Slave is a unit which is not local to the M&C computer, which is at the distant-end of a satellite link. If Master is selected then the following sub-menu is...

  • Page 75: Mn/Cdm570L.iom

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM RS422, V.35, or RS232 are selected, the following sub menu will be displayed: RTS/CTS Operation: (▲ ▼) Loop,RTS Controls Tx Out The option is changed using the ▲ ▼ arrow keys. The user should then press ENTER.

  • Page 76: Config) Reference

    (~ 2Hz) phase-locked loop (PLL), so the CDM-570L actually phase locks to the reference external signal. There are IMPORTANT two distinct advantages to this scheme: 1) It permits hitless switching between the operation of internal and external reference.

  • Page 77: Config) Mask

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM 6.12 (CONFIG) MASK Alarm Mask: Transmit Receive Ref BUC LNB (◄ ►) Select Transmit, Receive or Reference, using the ◄ ► arrow keys, then press ENTER. If Transmit is selected the following sub-menu will be displayed: Tx Alarm Mask: Tx-FIFO G.703-BPV Tx-AIS(◄...

  • Page 78: Mn/Cdm570L.iom

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM If the user selects Active, then a Receive Traffic fault will be generated whenever the demodulator sees that the composite input level being applied will cause compression in the IF stages, and hence degrade the performance of the demodulator.

  • Page 79: Config) Odu

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM 6.13 (CONFIG) ODU ODU (Outdoor Unit): (◄ ►,ENTER) The ODU (Outdoor Unit) menu permits the user to choose between controlling and monitoring either a BUC (Block Upconverter) or an LNB (Low-noise Block downconverter).

  • Page 80: Mn/Cdm570L.iom

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM Select Comms, Address, Tx-On/Off, or Pwr-Level, using the ◄ ► arrow keys, then press ENTER. If an FSK-capable BUC is employed, this menu turns the FSK-Comms FSK between the modem and BUC either ON or OFF.

  • Page 81: Mn/Cdm570L.iom

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM Select On or Off , using the ◄ ► arrow keys, then press ENTER. (CONFIG, ODU, BUC) DC-POWER If DC-Power is selected, the following sub-menu is displayed: BUC DC Power: (◄ ►,ENTER) On Off Select On or Off , using the ◄...

  • Page 82: Mn/Cdm570L.iom

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM The user should then press ENTER. The range of current is 500 to 4000 mA. If Lower is selected, the following sub-menu is displayed: BUC Current Alarm Lower Limit:1200mA (◄ ►,▲ ▼,ENT) Edit BUC Current Alarm Lower limit.

  • Page 83: Config, Odu) Lnb

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM (CONFIG, ODU, BUC) MIX If Mix is selected, the following sub-menu is displayed: BUC Frequency Mix: High-Side Low-Side (◄ ►) Select High-Side or Low-Side, using the ◄ ► arrow keys, then press ENTER.

  • Page 84: Mn/Cdm570L.iom

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM (CONFIG, ODU, LNB) 10MHz If 10MHz is selected, the following sub-menu is displayed: LNB 10MHz Reference: (◄ ►,ENTER) Select On or Off , using the ◄ ► arrow keys, then press ENTER.

  • Page 85: Monit (Monitor)

    ◄ ► arrow keys, then press ENTER. If the user selects Alarms, the following sub-menu is displayed: 6.14.1 (MONIT) ALARMS IMPORTANT NOTE: The CDM-570L uses a system of Fault Prioritization. In each category of fault, only the highest priority fault is displayed. For IMPORTANT...

  • Page 86: Mn/Cdm570L.iom

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM instance, if the demodulator is unlocked, it is irrelevant if there are other receive faults present. If the demodulator then locks, but there is a fault of a lower priority present, this will then be displayed. This also holds true for the faults reported via the remote control.

  • Page 87: Monit) Rx-Params (Receive Parameters)

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM The screen will indicate if there are any ODU Alarms. If not, it will display ‘None’. Pressing ENTER takes the user back to the previous menu. LISTING OF PRIORITIZED FAULTS: Unit Faults:...

  • Page 88: Monit) Stored Events

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM If the user selects Rx-Params, the following sub-menu is displayed: EbNo=05.7dB BER=3.4E-9 ∆F=+11.7k Buf=50 RSL=-64 If the demodulator is locked, this screen shows the following: This shows the value of Eb/No calculated by the demodulator. The...

  • Page 89: Monit) Stats (Link Statistics)

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM to the previous menu. The event log can store up to 255 events. When a fault condition occurs, it is time-stamped and put into the log. Similarly, when the fault condition clears, this is also recorded, as shown below: Log240:30/11/97 10:37:35 Clear - Demod Lock (▲...

  • Page 90: Mn/Cdm570L.iom

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM The top line of the display indicates the log entry number, and the time and date of the entry. Note that in accordance with international convention, the date is shown in DAY-MONTH-YEAR format.

  • Page 91: Monit) Aupc

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM If the user selects Clear-All, the following screen is displayed: Clear all Stored Stats? (▲ ▼, ENTER) If the user selects Yes, the Statistics log is cleared, and the user is taken directly back to the previous menu.

  • Page 92: Test

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM Select LNB or BUC, using the ◄ ► arrow keys, then press ENTER. If LNB is selected, the following menu is displayed: LNB Voltage: 13.1 volts LNB Current: 235 mA(ENT) The menu displays the LNB Voltage and Current. Press ENTER or CLEAR to return to the next-highest menu.

  • Page 93: Mn/Cdm570L.iom

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM (Normal) This clears any test modes or loopbacks, and places the unit back into Norm an operational state. (IF Loopback) This test mode invokes an internal IF loop. This is a particularly useful feature, as it permits the user to perform a quick diagnostic test without having to disturb external cabling.

  • Page 94: Figure 10. Loopback Modes

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM IF LOOPBACK DIGITAL LOOPBACK I/O LOOPBACK Figure 10. Loopback Modes...

  • Page 95: Info (Information)

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM 6.16 INFO (Information) INFO:All Tx Rx Buf Frame Intfc Rem Msk Ref ID 1:1 Select All, Tx, Rx, Buf, Frame, Intfc, Rem, Mask, Red, ID or 1:1, using the ◄ ► arrow keys, then press ENTER.

  • Page 96: Info) Rx (Receive Information)

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM 6.16.3 (INFO) RX (Receive information) Rx:1140.000 5000.000 TUR 8P 0.95 D BUF +/-32k The information displayed here is as follows: Top line: Receive Frequency and Data Rate (NOTE: Due to space limitations, the...

  • Page 97: Info) Intfc (Interface Information)

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM Framing: AUPC+EDMAC2 Master,0240 (ENT or CLR) Framing: AUPC+EDMAC Slave, 0241 (ENT or CLR) This screen shows EDMAC mode, and shows if the unit is EDMAC Master or Slave, with the appropriate address. Pressing ENTER or CLEAR takes the user back to the previous menu.

  • Page 98: Info) Mask (Alarm Mask Information)

    Mask: FIFO BPV TAIS RAIS AGC EbNo BUF Ref BUC LNB 6.16.9 (INFO) REF (Frequency Reference) This shows the source of the frequency reference for the CDM-570L. Frequency Reference: Internal 10 MHz (ENTER) 6.16.10 (INFO) ID (Circuit ID) This displays the user-defined Circuit ID string, which is entered via the UTIL, ID screen.

  • Page 99: Info) 1:1 (1:1 Redundancy Information)

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM 6.16.11 (INFO) 1:1 (1:1 Redundancy information) Redundancy State:Standby Serial 1:1 Link: Active This screen shows the following: Redundancy status - either Online or Standby (1:1 or 1:N) 1:1 link status - this shows the status of the serial link between the two units. –...

  • Page 100: Save/Load) Load

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM The user is shown the time and date stamp of the previously stored configuration, for identification purposes. Select the location where the current configuration will be stored, using the ▲ ▼...

  • Page 101: Utility

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM If the selected location contains valid data, the following screen will be displayed: New Config has been Loaded from Loc 9 (ENT) Pressing ENTER or CLEAR will take the user back to the previous menu.

  • Page 102: Util) Ref (Reference)

    Enable Select Disable or Enable using the ◄ ► arrow keys, then press ENTER. If the user selects Disable, the CDM-570L will power-up and go into normal operational service without any delay. Because the CDM-570L uses a high-stability oven-controlled 10 MHz reference oscillator (OCXO) there is a finite time required for the oven to reach operating temperature.

  • Page 103: Util) Id (Circuit Id)

    Revision 1 MN/CDM570L.IOM clock. For a CDM-570L operating on its own, this may not be a problem, but if the 10 MHz reference signal is being used to drive an externally-connected BUC, the frequency error at the RF output may be large, particularly at Ku or Ka-band.

  • Page 104: Util) 1:1 (Manual 1:1 Switchover)

    ENTER. 6.18.7 (UTIL) FIRMWARE This series of sub-menus permits the user to view information about the CDM-570L internal firmware. The modem can store two complete firmware images, and the user can select which image will be loaded the next time the unit re-boots.

  • Page 105: Util) Fast (Fast Code Options)

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM If the user selects Info, the following sub-menu is displayed: Firmware Info: Bootrom Image#1 Image #2 MPP50 The user may select, using the ◄ ► arrow keys and ENTER key, to view information about the Bootrom, the 2 images, or the IP module (if installed).

  • Page 106: Mn/Cdm570L.iom

    Demo Mode. When enabled, Demo Mode allows access to ALL CDM-570L FAST options for 604800 seconds (7 full days). Demo Mode may be turned on and off an unlimited number of...

  • Page 107: Mn/Cdm570L.iom

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM time until the 604800 seconds have expired. The seconds count is only decrement when the mode is On. When the Demo period expires the following menu is display displayed: FAST Demo Mode: Off...

  • Page 108: Chapter 7. Forward Error Correction Options

    At the time of writing, Comtech EF Data is planning to release a new codec, which is a combination of Turbo Product Coding and Low Density Parity Check (LDPC) coding.

  • Page 109: Viterbi

    (i.e., does not fail rapidly below a certain value of Eb/No). Note that in BPSK mode, the CDM-570L only permits a coding rate of 1/2. Because the method of convolutional coding used with Viterbi, the encoder does not preserve the original data intact, and is called non-systematic.

  • Page 110: Table 12. Concatenated Rs Coding Summary

    Viterbi decoder is spread out over a number of interleaving frames, so errors entering the RS decoder do not exceed its capacity to correct those errors. In the case of the CDM-570L, two different RS code rates are used, according to the mode of operation.

  • Page 111: Trellis Coding (Requires 8-Psk/8-Qam Fast Option)

    – the natural consequences of the higher-order modulation. The CDM-570L implements a Closed Network version of Rate 2/3 8-PSK/TCM/RS, using either the 220, 200 or 200,180 Reed-Solomon outer codes. Although not compatible, it provides identical performance to the Open Network IESS-310 standard.

  • Page 112: Turbo Product Codec (Hardware Option)

    2 – 3 dB below the Viterbi/R-S or TCM cases With this release of the CDM-570L, Comtech EF Data now provides the best Forward Error Correction technology currently available, offering a very broad range of TPC code rates, combined with the entire range of modulation types, from BPSK to 16-QAM.

  • Page 113: End-To-End Processing Delay

    In many cases, FEC methods that provide increased coding gain do so at the expense of increased processing delay. However, with TPC, this increase in delay is very modest. The table below shows, for the CDM-570L, the processing delays for the major FEC types, including the three TPC modes: Table 15.

  • Page 114: Comparison Of All Tpc Modes

    (9.5 dB) The occupied bandwidth is defined at the width of the transmitted spectrum taken at the –10 dB points on the plot of power spectral density. This equates to 1.19 x symbol rate for the CDM-570L transmit filtering. Included for comparative purposes...

  • Page 115: Uncoded Operation (No Fec)

    There are occasions when a user may wish to operate a satellite link with no forward error correction of any kind. For this reason, the CDM-570L offers this uncoded mode for three modulation types - BPSK, QPSK, and OQPSK. However, the user should be aware of some of the implications of using this approach.

  • Page 116: Cdm-570L Satellite Modem With Ip Module Revision

    However, if uncoded operation is used, there is no way to recognize a data false lock. The demodulator will indicate that it is correctly locked, but the data out will not be correct. This problem has been almost entirely eliminated in the CDM-570L with the fast acquisition algorithm which includes Fast Fourier Transform (FFT) techniques. However,...

  • Page 117: Figure 11. Viterbi Decoding

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM Eb/No in dB 1E-1 Uncoded BPSK/QPSK Viterbi Decoding 1E-2 Typical Performance 1E-3 1E-4 1E-5 1E-6 Specification limit, Rate 7/8 1E-7 Coding 1E-8 Specification Specification limit Rate 1/2 limit, Rate 3/4 Coding...

  • Page 118: Figure 12. Viterbi With Concatenated Rs Outer Code

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM Eb/No in dB 1E-1 Viterbi with Uncoded BPSK/QPSK concatenated RS 220,200 1E-2 Outer Code Sync threshold, Rate 3/4 1E-3 Sync threshold, Rate 7/8 1E-4 Combined sync 1E-5 threshold, demod and Viterbi...

  • Page 119: Figure 13. 8-Psk/Tcm Rate 2/3 With Concatenated Rs Outer Code

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM Eb/No in dB 1E-1 Uncoded BPSK/QPSK 8-PSK/TCM Rate 2/3 Decoding, with 220, 1E-2 200 RS Outer Code 1E-3 1E-4 Typical Performance 1E-5 1E-6 1E-7 1E-8 Specification limit Specification Rate 2/3 Coding and...

  • Page 120: Figure 14. Comtech Ef Data Turbo Product Codec Rate 3/4 Qpsk/Oqpsk, 8-Psk And 16-Qam

    1E-3 Spec limit Rate 3/4 Uncoded 8-PSK 8-PSK 1E-4 Spec limit Rate 3/4 QPSK/OQPSK 1E-5 1E-6 1E-7 Spec limit Rate 3/4 16-QAM 1E-8 Typical performance 1E-9 Figure 14. Comtech EF Data Turbo Product Codec Rate 3/4 QPSK/OQPSK, 8-PSK AND 16-QAM...

  • Page 121: Figure 15. Comtech Ef Data Turbo Product Codec Rate 7/8 Qpsk/Oqpsk, 8-Psk And 16-Qam

    1E-3 Spec limit Rate 7/8 Spec limit 8-PSK Rate 7/8 Uncoded QPSK/OQPSK 8-PSK 1E-4 1E-5 1E-6 1E-7 Spec limit Rate 7/8 16-QAM 1E-8 Typical performance 1E-9 Figure 15. Comtech EF Data Turbo Product Codec Rate 7/8 QPSK/OQPSK, 8-PSK AND 16-QAM...

  • Page 122: Figure 16. Comtech Ef Data Turbo Product Codec Rate 21/44 Qpsk, Rate 0.95 Qpsk And Rate 0.95 8-Psk

    Spec limit Spec limit Rate 0.95 Rate 1/2 QPSK/OQPSK QPSK/OQPSK 1E-5 1E-6 1E-7 Spec limit Rate 0.95 8-PSK 1E-8 Typical performance 1E-9 Figure 16. Comtech EF Data Turbo Product Codec Rate 21/44 QPSK, Rate 0.95 QPSK and Rate 0.95 8-PSK...

  • Page 123: Figure 17. Rate 21/44 Bpsk And Rate 5/16 Bpsk Turbo

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM Eb/No in dB 1E-1 Comtech Turbo Product Codec Rate 21/44 BPSK Rate 5/16 BPSK 1E-2 Spec limit Rate 5/16 BPSK 1E-3 Spec limit Rate 21/44 BPSK 1E-4 Uncoded BPSK/QPSK 1E-5 1E-6...

  • Page 124: Figure 18. 16-Qam Viterbi, Rate 3/4 And Rate 7/8 With 220,200 Rs Outer Code

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM Eb/No in dB 1E-1 16-QAM Viterbi, Rate 3/4 and Rate 7/8 with 220,200 RS Outer Code Uncoded BPSK/QPSK 1E-2 Uncoded 16-QAM 1E-3 1E-4 Specification limit Rate 7/8 Viterbi and 220,200 RS...

  • Page 125: Figure 19. Differential Encoding - No Fec, No Scrambling

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM Eb/No in dB 1E-1 Differential Encoding - No FEC, no Uncoded BPSK/QPSK 1E-2 scrambling 1E-3 1E-4 1E-5 1E-6 1E-7 1E-8 1E-9 Figure 19. Differential Encoding - No FEC, no scrambling...

  • Page 126: Chapter 8. Offset Qpsk Operation

    Chapter 8. OFFSET QPSK OPERATION Offset QPSK modulation is a variation of normal QPSK, which is offered in the CDM- 570L. Normal, bandlimited, QPSK produces an RF signal envelope that necessarily goes through a point of zero amplitude when the modulator transitions through non-adjacent phase states.

  • Page 127: Mn/Cdm570L.iom

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM This page is intentionally blank...

  • Page 128: Chapter 9. Clocking Modes

    It is optional whether the DTE also returns the clock (Terminal Timing, or TT). The modem can accept it if it is present, but uses ST if it is not. At rates above 2 Mbps, Comtech EF Data highly recommends that the user returns TT to ensure the correct clock/data relationship.

  • Page 129: Tx Terrestrial

    G.703: Does not apply. 9.1.4 Rx Loop-Timed, Rx<>Tx (Asymmetric Loop Timing) The CDM-570L incorporates circuitry which permits loop timing when the Tx and Rx data rates are not the same. In this case the clock frequency appearing at ST will be whatever the TX data rate is programmed to, but phase-locked to the demodulator’s...

  • Page 130: Receive Clocking

    Revision 1 MN/CDM570L.IOM 9.2 Receive Clocking There are three receive clocking modes in the CDM-570L, plus an additional setting used for Drop and Insert only – see later section. 9.2.1 Buffer Disabled (Rx Satellite) When the buffer is disabled, the receive clock (Receive Timing, or RT) is derived directly from the demodulator, and hence will be subject to plesiochronous and Doppler offsets.

  • Page 131: Figure 20 Tx Clock Modes

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM Figure 20 Tx Clock Modes...

  • Page 132: Figure 21 Rx Clock Modes

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM Figure 21 Rx Clock Modes...

  • Page 133: Mn/Cdm570L.iom

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM This page is intentionally blank...

  • Page 134: Chapter 10. Edmac Channel

    Chapter 10. EDMAC CHANNEL 10.1 Theory Of Operation EDMAC is an acronym for E mbedded D istant-end M onitor A nd C ontrol. This is a feature which permits the user to access the M&C features of modems which are at the distant-end of a satellite link.

  • Page 135: M&C Connection

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM begin its processing at exactly the right time. This method does not multiply errors, and therefore has a clear advantage over V.35 scrambling. This is fortunate, as there is a penalty to be paid for adding the framing. By adding the extra 5% to the transmitted data rate, the effective Eb/No seen by the user will degrade by a factor of 10log(1.05), or 0.21...

  • Page 136: Setup Summary

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM This approach does not require any additional cabling; connection is made using the normal M&C remote port. Furthermore, the user does not have to worry about configuring the baud rate of the M&C connection to match the lowest data rate modem in the system.

  • Page 137: Mn/Cdm570L.iom

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM This page is intentionally blank.

  • Page 138: Chapter 11. Automatic Uplink Power Control

    Chapter 11. AUTOMATIC UPLINK POWER CONTROL 11.1 Introduction Automatic Uplink Power Control (AUPC) is a feature whereby a local modem is permitted to adjust its own output power level in order to attempt to maintain the Eb/No at the remote modem. The user MUST obtain permission from the Satellite Operator to use this feature.

  • Page 139: Setting Aupc Parameters

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM 11.2 Setting AUPC Parameters 1) The user, under the menu ( CONFIG, Frame) first ensures that Framing is selected. EDMAC or EDMAC-2 may be selected, then the Framing mix – either AUPC-Only or AUPC +EDMAC . The important consideration is that EDMAC framing should be enabled.

  • Page 140: Alarm

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM 11.2.3 Alarm The Alarm parameter defines how the user wants the modem to act if, under AUPC control, the maximum power limit is reached. The two choices are: • None (no action) •...

  • Page 141: Monitoring

    AUPC is disabled, this will indicate 0.0 dB. This value is also available via the remote control interface. CAUTION Comtech EF Data strongly cautions against the use of large values of permitted power level increase under AUPC control. Users should consider using the absolute minimum range necessary to improve rain- CAUTION fade margin.

  • Page 142: Chapter 12. Summary Of Specifications

    Chapter 12. SUMMARY OF SPECIFICATIONS 12.1 Modulator BPSK, QPSK, OQPSK, 8-PSK, and 16-QAM Modulation 8-QAM (planned future upgrade – consult Factory for latest information) Symbol rate range 4.8 ksps to 2.5 Msps Data rate range See Section 14.4 Operating modes Transparent, Closed Network, IESS-315 (VSAT Turbo) Proprietary EDMAC framed mode: * 5% overhead - EDMAC...

  • Page 143: Mn/Cdm570L.iom

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM QPSK/OQPSK: Rate 1/2, Rate 3/4 and Rate 7/8 16-QAM: Rate 3/4 and Rate 7/8 (requires Reed-Solomon) Reed-Solomon (Closed Network): 220,200 outer code (transparent mode) 200,180 outer code (EDMAC modes) Interleaver depth = 4...

  • Page 144: Demodulator

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM 0.00 0.10 0.20 0.30 0.40 0.50 0.60 0.70 0.80 0.90 1.00 1.10 1.20 1.30 1.40 1.50 Symbol Rate, Rs Comtech EF Data CDM-570L Transmit Power Spectral Density, referred to symbol rate...

  • Page 145: Mn/Cdm570L.iom

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM VITERBI Rate 1/2 (B, Q, OQ) Rate 3/4 (Q, OQ) Rate 7/8 (Q, OQ) BER performance Guaranteed Eb/No: Guaranteed Eb/No: Guaranteed Eb/No: (met in the presence of (typical value in (typical value in...

  • Page 146: Data And Miscellaneous Interfaces

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM TURBO PRODUCT Rate 7/8 (Q, OQ) Rate 7/8 (8-PSK) Rate 7/8 (16-QAM) CODEC Guaranteed Eb/No: Guaranteed Eb/No: Guaranteed Eb/No: Rate 7/8 QPSK (typical value in (typical value in (typical value in...

  • Page 147: Automatic Uplink Power Control

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM Modem Alarms Relay outputs (Tx, Rx & unit faults) 15-pin D-sub (male) Demodulator I & Q test outputs (constellation) Demodulator Rx Signal Level output (0 to 10 volts) External carrier off input...

  • Page 148: Miscellaneous

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM Turbo QPSK/OQPSK Rate 0.95 9.1 kbps to 4.72 Mbps Yes – see note below TPC/LDPC 8-PSK/8-QAM Rate 2/3 9.6 kbps to 5.00 Mbps Yes – see note below Turbo or TPC/LDPC...

  • Page 149: Cdm-570L Satellite Modem With Ip Module Revision

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM This page is intentionally blank...

  • Page 150: Chapter 13. Serial Remote Control

    13.1 Introduction This section describes the protocol and message command set for remote monitor and control of the CDM-570L Modem. The electrical interface is either an EIA-485 multi-drop bus (for the control of many devices) or an EIA-232 connection (for the control of a single device), and data is transmitted in asynchronous serial form, using ASCII characters.

  • Page 151: 128

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM Each target has a unique address, and each time the controller transmits, in a framed ‘packet’ of data, the address of the intended recipient target is included. All of the targets receive the packet, but only one (the intended) will reply.

  • Page 152: Packet Structure

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM 13.5 Packet Structure Controller-to-target: Start of Target Address Instruction Code Qualifier Optional End of Packet Packet Address De-limiter Code Arguments < = or ? Carriage Return ASCII ASCII ASCII code 61...

  • Page 153: Instruction Code

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM The controller sends a packet with the address of a target - the destination of the packet. When the target responds, the address used is the same address, to indicate to the controller the source of the packet.

  • Page 154: Mn/Cdm570L.iom

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM The = code (target to controller) is used in two ways: First, if the controller has sent a query code to a target (for example TFQ?, meaning ‘what’s the Transmit frequency?’), the target would respond with TFQ=xxxx.xxxx, where xxxx.xxxx represents the frequency in question.

  • Page 155: Message Arguments

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM 13.5.5 Message Arguments Arguments are not required for all messages. Arguments include ASCII codes for the characters 0 to 9 (ASCII 48 to 57), period (ASCII 46) and comma (ASCII 44), plus miscellaneous printable characters.

  • Page 156: Mn/Cdm570L.iom

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM Command Arguments Query Parameter (Instruction for Command Response to (Instruction Description of Arguments Response to Query Type Code and or Response Command Code and Qualifier) to Query Qualifier) Unit ITF= 1 byte, value Command or Query.

  • Page 157: Mn/Cdm570L.iom

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM Command Arguments Query Parameter (Instruction for Command Response to (Instruction Description of Arguments Response to Query Type Code and or Response Command Code and Qualifier) to Query Qualifier) Tx Frequency TFQ= 9 bytes Command or Query.

  • Page 158: Mn/Cdm570L.iom

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM Command Arguments Query Parameter (Instruction for Command Response to (Instruction Description of Arguments Response to Query Type Code and or Response Command Code and Qualifier) to Query Qualifier) Tx FEC Code...

  • Page 159: Mn/Cdm570L.iom

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM Command Arguments Query Parameter (Instruction for Command Response to (Instruction Description of Arguments Response to Query Type Code and or Response Command Code and Qualifier) to Query Qualifier) AUPC Enable AUP= 1 byte, value Command or Query.

  • Page 160: Mn/Cdm570L.iom

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM Command Arguments Query Parameter (Instruction for Command Response to (Instruction Description of Arguments Response to Query Type Code and or Response Command Code and Qualifier) to Query Qualifier) Tx Clock TCK= 1 byte, value 0 Command or Query.

  • Page 161: Mn/Cdm570L.iom

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM Command Arguments Query Parameter (Instruction for Command Response to (Instruction Description of Arguments Response to Query Type Code and or Response Command Code and Qualifier) to Query Qualifier) Rx Frequency RFQ= 9 bytes Command or Query.

  • Page 162: Mn/Cdm570L.iom

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM Command Arguments Query Parameter (Instruction for Command Response to (Instruction Description of Arguments Response to Query Type Code and or Response Command Code and Qualifier) to Query Qualifier) Rx FEC Code...

  • Page 163: Mn/Cdm570L.iom

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM Command Arguments Query Parameter (Instruction for Command Response to (Instruction Description of Arguments Response to Query Type Code and or Response Command Code and Qualifier) to Query Qualifier) Rx Data Invert...

  • Page 164: Mn/Cdm570L.iom

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM Command Arguments Query Parameter (Instruction for Command Response to (Instruction Description of Arguments Response to Query Type Code and or Response Command Code and Qualifier) to Query Qualifier) EDMAC EFM= 1 byte, value Command or Query.

  • Page 165: Mn/Cdm570L.iom

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM Command Arguments Query Parameter (Instruction for Command Response to (Instruction Description of Arguments Response to Query Type Code and or Response Command Code and Qualifier) to Query Qualifier) Unit Alarm MSK= 12 bytes Command or Query.

  • Page 166: Mn/Cdm570L.iom

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM Command Arguments Query Parameter (Instruction for Command Response to (Instruction Description of Arguments Response to Query Type Code and or Response Command Code and Qualifier) to Query Qualifier) Command or Query. Global Configuration of CDM570L, in the MGC=abcdddd.ddddefg...

  • Page 167: Mn/Cdm570L.iom

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM Command Arguments Query Parameter (Instruction for Command Response to (Instruction Description of Arguments Response to Query Type Code and or Response Command Code and Qualifier) to Query Qualifier) Configuration CST= 1 byte Command only.

  • Page 168: Mn/Cdm570L.iom

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM Command Arguments Query Parameter (Instruction for Command Response to (Instruction Description of Arguments Response to Query Type Code and or Response Command Code and Qualifier) to Query Qualifier) Number of 3 bytes Query only.

  • Page 169: Mn/Cdm570L.iom

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM Command Arguments Query Parameter (Instruction for Command Response to (Instruction Description of Arguments Response to Query Type Code and or Response Command Code and Qualifier) to Query Qualifier) Initialize IEP= None Command only.

  • Page 170: Mn/Cdm570L.iom

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM Command Arguments Query Parameter (Instruction for Command Response to (Instruction Description of Arguments Response to Query Type Code and or Response Command Code and Qualifier) to Query Qualifier) Initialize ISP= None Command only.

  • Page 171: Mn/Cdm570L.iom

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM Command Arguments Query Parameter (Instruction for Command Response to (Instruction Description of Arguments Response to Query Type Code and or Response Command Code and Qualifier) to Query Qualifier) Rx BER 5 bytes Query only.

  • Page 172: Mn/Cdm570L.iom

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM Command Arguments Query Parameter (Instruction for Command Response to (Instruction Description of Arguments Response to Query Type Code and or Response Command Code and Qualifier) to Query Qualifier) Software variable Query only.

  • Page 173: Mn/Cdm570L.iom

    = BUC option: 0 = None, 1 = 100 Watt, 2 = 150 Watt h = Spare – for future use i = Spare – for future use Example: EID=157101311xx means Turbo, CDM-570L, No RS codec, up to 2048bps, 8-PSK/8-QAM and 16-QAM, IP Module installed, 100 Watt BUC supply installed...

  • Page 174: Mn/Cdm570L.iom

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM Command Arguments Query Parameter (Instruction for Command Response to (Instruction Description of Arguments Response to Query Type Code and or Response Command Code and Qualifier) to Query Qualifier) Query only. Faults and...

  • Page 175: Mn/Cdm570L.iom

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM Command Arguments Query Parameter (Instruction for Command Response to (Instruction Description of Arguments Response to Query Type Code and or Response Command Code and Qualifier) to Query Qualifier) LNB Power LPC= 1 byte, value Command or Query.

  • Page 176: Mn/Cdm570L.iom

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM Command Arguments Query Parameter (Instruction for Command Response to (Instruction Description of Arguments Response to Query Type Code and or Response Command Code and Qualifier) to Query Qualifier) BUC Address BAD= 2 byte, value Command or Query.

  • Page 177: Mn/Cdm570L.iom

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM Command Arguments Query Parameter (Instruction for Command Response to (Instruction Description of Arguments Response to Query Type Code and or Response Command Code and Qualifier) to Query Qualifier) BUC LO BLO= 6 bytes Command or Query.

  • Page 178: Mn/Cdm570L.iom

    Returns 00000.0000 if LNB LO is zero Example: TRF=11650.2249 OGC Outdoor OGC= 50 Bytes Command or Query OGC= OGC? OGC=aabcdfxxxhhhhiiii Unit Global ODU Global Configuration of CDM-570L in the form: OGC? jjjjjkxxxxxxlmnnnooopp Configuration aabcdexxxxhhhhiiiijjjjjkxxxxxxlmnnnooopppppqxxxxxx, where: OGC* pppqxxxxxx OGC# (see description of arguments)

  • Page 179: Mn/Cdm570L.iom

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM Command Arguments Query Parameter (Instruction for Command Response to (Instruction Description of Arguments Response to Query Type Code and or Response Command Code and Qualifier) to Query Qualifier) aa = BUC Address...

  • Page 180: Chapter 14. Ip Module Ethernet Interface Overview

    IP-Centric satellite modem well suited for closed network Single Channel Per Carrier (SCPC) links. It is ideal for many VSAT applications. A CDM-570L with the IP Module can also be utilized in a ViperSat satellite bandwidth management sytem. The following chapters focus on the CDM-570L IP Module capabilities and operation.

  • Page 181: 10/100Baset Ethernet Interface

    LAN. In easyConnect  Mode, the Ethernet Interface is used to forward IP and non-IP traffic over the satellite. Local or remote management of all CDM-570L and IP Module functions is also available via Telnet, HTTP, or SNMP.

  • Page 182: Configuration Backup And Restore Via Ftp

    Configuration/Interface and then selecting either RS- 422, V.35, RS-232, or G.703 as the interface rather than IP. The CDM-570L will then pass standard serial traffic, but will not pass IP traffic. The IP Module can still be accessed via the ethernet port using Telnet, HTTP, or SNMP for configuring or monitoring the CDM-570L.

  • Page 183: Easyconnect Mode

    CDM-570L IP address (as should be done with router mode). For purposes of configuration, easyConnect  mode should be viewed to function in much the same way as a bridge (however, without spanning tree protocol).

  • Page 184: Ip Module Optional Features

    14.4 IP MODULE Optional Features Enhancing the IP Module performance is easy. Additional features can be added quickly on site, using the FAST access code purchased from Comtech EF Data. To enable these features, simply enter the code at the front panel.

  • Page 185: 3Xdes Encryption With Ability To Change Keys

    Header Compression Configuration – Header Compression is completely independent from QoS, and there is no configuration required except enabling the Header Compression feature on both the sending and receiving Comtech EF Data IP modem. Packets with a Header Compression supported header will...

  • Page 186: Payload Compression

    Header Compression Statistics - These statistics will display the total bytes of the pre-compressed and post-compressed traffic and effective compression ratio. 14.4.3 Payload Compression Traffic optimization through Payload Compression is another optional feature of the CDM-570L/IP Module modem. FAST feature to upgrade Uses AHA chip Compression algorithm applied to all data (HDLC header excluded).

  • Page 187: Quality Of Service

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM ADLC Canterbury 2.04 1472 Calgary 1.66 1000 Calgary 1.66 Calgary 1.68 Calgary 1.97 1472 Canterbury 1.61 1000 Canterbury 1.62 Canterbury 1.63 Canterbury 1.91 14.4.4 Quality of Service Quality of Service (QoS) is an optional feature of the IP Module. The user may select one of three modes of QoS operation: •...

  • Page 188: Mn/Cdm570L.iom

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM Filtering - QoS also allows specific flows to be designated as “filtered,” so the IP Module will discard traffic that the user does not want to forward over a satellite link.

  • Page 189: Mn/Cdm570L.iom

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM QoS Rules created or all be included in a single Rule by selecting RTP as the protocol. The following diagram illustrates where each protocol selection resides. VOCE SNMP VDEO RTPS HTTP...

  • Page 190: Mn/Cdm570L.iom

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM The following table can be used as a reference for some well known Port numbers: Port Description Port Description TCP Port Service Multiplexer (TCPMUX) SQL Services ECHO Newsgroup (NNTP) FTP - Data...

  • Page 191: Mn/Cdm570L.iom

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM WRED allows for more graceful dropping of packets, as QoS queues get full. Without WRED, typically packets are dropped based upon a simple tail drop algorithm which was applied to packets as they were being added to the QoS queues. This can result in large numbers of contiguous packets being dropped which causes many protocols such as RTP and TCP to ungracefully degrade performance in a over-consumed or bursty scenario.

  • Page 192: Mn/Cdm570L.iom

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM Note: All traffic that does not have the DSCP Class Selector Precedence defined (000 000) will be placed in the Default Queue and have a Precedence of 9. Expedited Forwarding and Assured Forwarding DSCP – Another implementation of...

  • Page 193: Cdm-570L Ip Module Demo Mode

    Payload Compression, Quality of Service, and IGMP) to be enabled for seven Days (168 hours). To enable Demo Mode, use the CDM-570L Front Panel to select UTIL\DEMO\ON. The seven day Demo Mode Timer will start but can be stopped at any time by setting Demo Mode to OFF.

  • Page 194: Chapter 15. Typical Ip Module Operational Setups

    The CDM-570L with the IP Module has several modes of operation. This Chapter shows examples of typical setups for the CDM-570L / IP Module to determine the best mode of operation for the appropriate network topology and Ethernet traffic environment.

  • Page 195: Ip Module Working Modes

    HDLC header for each packet. Non-IP traffic is not supported in Router Mode. This section describes the functionality of these modes in order to optimize the Comtech EF Data IP modems in the network, based upon Network Topology and Ethernet Traffic requirements.

  • Page 196: Mn/Cdm570L.iom

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM Feature Support - The IP Module also has several standard and optional features to further optimize security, performance and efficiency. The following table defines how these features are supported in the two different Working Modes:...

  • Page 197: Easyconnect Working Mode

    This is the default Working Mode of the IP Module. easyConnect  only operates in Point-to- Point Mode, meaning that it is only communicating with one other Comtech EF Data IP modem. This mode allows the modem to be setup with minimal configuration (no specific routes need to be configured).

  • Page 198: Router Working Mode - Point-To-Point

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM easyConnect mode will automatically use Header Compression (even if Header Compression option has not been purchased). Because of this, some of the initial traffic sent between two devices will not be received over the satellite until a full IMPORTANT Header is transmitted.

  • Page 199: Router Working Mode - Point-To-Multipoint

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM 15.3.3 Router Working Mode – Point-to-MultiPoint Satellite IP 10.20.1.100/16 Satellite dish GW 10.20.1.1 IP 10.10.1.100/16 GW 10.10.1.1 Remote A, CDM-IP 3 (efi0) 10.20.1.1/16 Static Routes IP Dest Next Hop Type 10.10.0.0/16...

  • Page 200: Mn/Cdm570L.iom

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM remote CDM-IPs have static routes to the hub with the next Hop being HDLC 0x01. The Hub RX only CDM-IP 2 has a default route (ToEth) to Hub CDM-IP 1 because all outbound traffic will go through CDM-IP 1.

  • Page 201: Mn/Cdm570L.iom

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM The first method does not require any additional CDM-IP modems than is described in Figure 1, Router Mode, Point-to-Multipoint Diagram. Just by adding static routes, traffic could be sent between Remote Site A and B. Remote site A and B would add a static route for remote destination subnet, but since the path to the remotes must go through the Hub, the Next Hop HDLC Address would be 0x01, not the HDLC address of the Remote.

  • Page 202: Chapter 16. Ip Module Cli And Telnet Operation

    All base modem parameters configured via the IP MODULE (i.e., TX Frequency, data rate, etc.) and the Ethernet Port Address/Mask will be automatically stored in the CDM-570L base modem non-volatile RAM and will be retained if there is a power loss.

  • Page 203: Mn/Cdm570L.iom

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM The CLI and Telnet Access Levels are defined as follows: User Login Access Level User Interface Admin User Read/Write User Read Only User Full Access – no Login (direct to console port)

  • Page 204: Main Menu Page

    Protocol Configuration The Protocol Settings option allows the user to IP M configure various protocols used by the odule. These protocols currently include ARP and IGMP. Vipersat Configuration Only used when the CDM-570L is used in a Vipersat system.

  • Page 205: Mn/Cdm570L.iom

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM Menu Options/Fields Entry Description Satellite Modem The Modem Parameters option displays a set of menus Configuration that allows a user to configure and monitor the satellite base modem. Operations and The Operations & Maintenance Menu allows a user to...

  • Page 206: Administration Page

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM 16.2.1 Administration Page The Administration page is activated from the Main Menu page . Access to the Administration page is restricted to the Admin user when connecting via the Telnet, SNMP, or HTTP interface. The Administration page is available when connected via the Terminal Emulator (serial) connection because there is no log in.

  • Page 207: Mn/Cdm570L.iom

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM Menu Options/Fields Entry Description 3xDES Configuration The 3xDES Configuration Page allows the user to determine if 3xDES encryption is enabled on a device and if so, the 3xDES keys that are used to decrypt traffic.

  • Page 208: Mn/Cdm570L.iom

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM 16.2.1.1 Name/Password Configuration Page The Name/Password Configuration page is activated from the Administration page . This option allows a user to define the passwords required to access via HTTP, FTP, SNMP, and TELNET.

  • Page 209: Mn/Cdm570L.iom

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM Menu Options/Fields Entry Description Save Parameters This option allows a user to save the current configuration to permanent storage. This configuration will be restored on each successive power cycle. Exit This option allows a user to exit the current menu and return to its parent menu.

  • Page 210: Mn/Cdm570L.iom

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM Menu Options/Fields Entry Description AccessClient1 - 4 1 - 4 The Access Client list allows a user to define which remote clients can connect when the Access List Enforcement is enabled. Each entry allows a user to specify an IP Address or a subnet mask to define a unique class of machines that are allowed access.

  • Page 211: Mn/Cdm570L.iom

    The Feature Configuration menu communicates to the user the current availability for each of the features. If a feature is marked “Unavailable” then the feature is a FAST feature. FAST features must be purchased from Comtech EF Data. The Feature Configuration menu contains the following options/fields:...

  • Page 212: Mn/Cdm570L.iom

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM Menu Options/Fields Entry Description SNMP Toggles [Enabled] and [Disabled] IP M Enabled tells the odule to respond to SNMP requests against the private and public MIB. IP M Disabled tells the odule not to respond to SNMP requests against the private and public MIB.

  • Page 213: Mn/Cdm570L.iom

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM Menu Options/Fields Entry Description Receive 3XDES Decryption Read This feature must be purchased. Only IP M Available allows the odule to decrypt packets being received from the Satellite Interface. IP M...

  • Page 214: Mn/Cdm570L.iom

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM 16.2.1.4 3xDES Encrypt Configuration Page The 3xDES Encrypt/Decrypt Configuration page is activated from the Administration page . Note: This menu will only be accessible if the 3xDES FAST feature has been purchased and the license key has been entered through the modem front panel.

  • Page 215: Mn/Cdm570L.iom

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM Transmit Encrypt Enabled Read Displays feature status. This field is updated via the Only Features Configuration menu. If Transmit Encrypt is disabled, then all traffic IP M processed by the odule will be transmitted in the clear regardless of the 3xDES encryption key specified in the Route table.

  • Page 216: Mn/Cdm570L.iom

    This option allows a user to exit the current menu and return to its parent menu. Note: SMTP can be used to send an email to Comtech EF Data IP Modem Support cdmipsupport@comtechefdata.com using the Support Web Page by connecting to the IP M odule with a Web Browser.

  • Page 217: Mn/Cdm570L.iom

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM 16.2.1.6 SNMP Configuration Page The SNMP Configuration page is activated from the Administration page . The SNMP Configuration contains the following options/fields: Menu Options/Fields Entry Description SNMP Read Community GET community - allows GET operations to all...

  • Page 218: Mn/Cdm570L.iom

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM Menu Options/Fields Entry Description SNMP Enable Determines whether a MIB2 authentication trap Authentication Trap will be sent when a PDU with an invalid community string is encountered. A community string is invalid when it does not match the Admin, the Read Write, or the Read Only community strings.

  • Page 219: Mn/Cdm570L.iom

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM 16.2.1.7 Working Mode The Working Mode page is activated from the Administration page . Changing the Working Mode (easyConnect or Router Mode) will require a system reboot. IMPORTANT The Working Mode contains the following option/field:...

  • Page 220: Mn/Cdm570L.iom

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM 16.2.1.9 easyConnect Multicast Option  The e asyConnect Multicast Option allows multicast to be either transmitted or received through the modem. This applies to easyConnect  mode only. easyConnect  mode will normally filter multicast traffic.

  • Page 221: Mn/Cdm570L.iom

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM 16.2.1.11 Payload Compression Refresh Rate The Payload Compression Refresh Rates determines how many compressed payload packets will be sent before a single full payload packet is sent. Some compressed payload traffic could be lost during deteriorated satellite link conditions.

  • Page 222: Interface Configuration Page

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM 16.2.2 Interface Configuration Page The Interface Configuration page is activated from the Main Menu page . The Interface Configuration page contains the following options/fields: Menu Options/Fields Entry Description Ethernet Interface (fei0) Activates Fast Ethernet page.

  • Page 223: Mn/Cdm570L.iom

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM 16.2.2.1 Fast Ethernet Interface (fei0) Page The Fast Ethernet Interface page is activated from the Interface Configuration page . The Fast Ethernet Interface page contains the following options/fields: Menu Entry Description...

  • Page 224: Mn/Cdm570L.iom

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM 16.2.2.2 Satellite/HDLC Interface (HDL0) Page The Satellite/HDLC Interface (HDL0) page is activated from the Interface Configuration page . The Satellite/HDLC Interface page contains the following options/fields: Menu Options/Fields Entry Description HDLC Addr Mode...

  • Page 225: Mn/Cdm570L.iom

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM 16.2.2.3 Receiver HDLC Addresses Page The Receiver HDLC Addresses page is activated from the Satellite/HDLC Interface page. This page allows the user to define up to four HDLC addresses that can carry user information on the Satellite Interface.

  • Page 226: Qos (Quality Of Service) Configuration Page

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM 16.2.3 QoS (Quality of Service) Configuration Page The QoS Configuration page is activated from the Main Menu page . The QoS Configuration page contains the following options/fields: Menu Options/Fields Entry Description QoS Mode Select;...

  • Page 227: Mn/Cdm570L.iom

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM 16.2.3.1 QoS Configuration Page – Max/Priority Mode The QoS Rules Configuration page is activated from the QoS Configuration page. The QoS Rules Configuration page contains the following options/fields when in Max/Pri Mode:...

  • Page 228: Mn/Cdm570L.iom

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM 16.2.4 UDP - User Datagram Protocol Specify Protocol for the rule TCP - Transmission Control Protocol RTP - Real Time Protocol (includes all RTP – VOCE, VDEO, and RTPS) VOCE – Voice RTP VDEO - Video RTP RTPS –...

  • Page 229: Mn/Cdm570L.iom

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM Maximum bandwidth in kbps <0 - Enter desired Maximum Bandwidth in kbps. 99999, enter = 99999 99999 If no Maximum is desired, select enter, Bandwidth will be displayed as ‘99999’ Source IP address <enter = 0.0.0.0>: x.x.x.x...

  • Page 230: Mn/Cdm570L.iom

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM 16.2.4.1 QoS Configuration Page – Min/Max Mode The QoS Rules Configuration page is activated from the QoS Configuration page . In Minimum/Maximum Mode, the QoS Rules Configuration page contains the same options/fields as in Max/Pri Mode with the following exceptions: Priority is not assigned.

  • Page 231: Mn/Cdm570L.iom

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM 16.2.4.2 QoS Configuration Page – DiffServ Mode The QoS Rules Configuration page is activated from the QoS Configuration page . In DiffServ Mode, the IP Module will prioritize all traffic by the DSCP value contained within the IP header of each packet.

  • Page 232: Route Table Configuration Page

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM 16.2.5 Route Table Configuration Page The Route Table Configuration page is activated from the Main Menu page . Do not operate a CDM-IP modem satellite link where both IP modems have a Default Route to the satellite.

  • Page 233: Mn/Cdm570L.iom

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM The Route Table Configuration page contains the following options/fields: Menu Options/Fields Entry Description Route001-Route008 Route Table allows user to define how packets the (256) odule receives are routed. Defining an entry in this table is...

  • Page 234: Mn/Cdm570L.iom

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM Menu Options/Fields Entry Description Base The Route Table menu allows the user to view up to 8 different routes per screen. To allow editing on any of the 256 entries that can be defined, the user can select a base address to control which 8 routes are displayed.

  • Page 235: Mn/Cdm570L.iom

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM Header Compression, Payload Compression or 3xDES Encryption can be configured on a per Route basis by selecting the route number. DES key select <Choose [1-8] for [key1-key8] 0=Clear 9=Random Enter= Clear>: The value of 0 [CLEAR] will force the IP Module to not encrypt any traffic destined for the route.

  • Page 236: Protocol Configuration Page

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM 16.2.6 Protocol Configuration Page The Protocol Configuration page is activated from the Main Menu page . The Protocol Configuration page contains the following options/fields: Menu Options/Fields Entry Description IGMP Activates IGMP page.

  • Page 237: Mn/Cdm570L.iom

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM 16.2.6.1 IGMP Information Page The IGMP information page is activated from the Protocol Configuration page . The IGMP Information page allows a user to view the IGMP clients that are actively listening to content being provided by the IP Module.

  • Page 238: Mn/Cdm570L.iom

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM Menu Options/Fields Entry Description CDM-IP as Server: Defines the number of membership queries that go Number of missed unanswered from LAN clients before the Ethernet responses before leaving Interface will no longer forward data for that IGMP IGMP group group.

  • Page 239: Mn/Cdm570L.iom

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM Menu Options/Fields Entry Description CDM-IP as Client: This parameter defines which version of the IGMP IGMP Version used for protocol should be followed when attempting to join a Unsolicited Reports group on a Multicast Server via an unsolicited report.

  • Page 240: Mn/Cdm570L.iom

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM Menu Options/Fields Entry Description CDM-IP as Client: The Unsolicited Report Interval configures the Unsolicited Report Interval, odule to generate unsolicited reports to join a Multicast Group at specified time intervals. Each...

  • Page 241: Mn/Cdm570L.iom

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM 16.2.6.2 ARP Table Utilities Page The ARP Table Utilities page is activated from the Protocol page. The ARP Table Utilities page allows the user to view and edit the ARP table defined by the IP Module.

  • Page 242: Mn/Cdm570L.iom

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM Menu Options/Fields Entry Description Entry001 - 008 1 - 8 The user can define up to 256 static ARP definitions on IP M odule. This table allows the user to operate/view up to 8 of these definitions. An ARP...

  • Page 243: Vipersat Configuration Page

    Automatic Switching Unit Role Expansion Unit Bandwidth Group ID Unit Name Only used when CDM-570L is used in a Vipersat system. Multicast Management IP Address Refer to Vipersat Operators Manual for more information. Multicast VMS Management IP Address Managing IP Address...

  • Page 244: Modem Parameters Page

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM 16.2.8 Modem Parameters Page The Modem Parameters page is activated by selecting Satellite Modem Configuration from the Main Menu page . The Modem Parameters page contains the following options/fields: Menu Options/Fields...

  • Page 245: Mn/Cdm570L.iom

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM 16.2.8.1 Transmit Modem Configuration Page The Transmit Modem Configuration page is activated from the Modem Parameters page . The Transmit Modem Configuration page contains the following options/fields: Note: Turbo FEC selections only displayed if Turbo card is installed.

  • Page 246: Mn/Cdm570L.iom

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM Menu Options/Fields Entry Description Encoder Rate 1 – 5/16 2 – 21/44 3 – 1/2 4 – 2/3 5 – 3/4 6 – 7/8 7 – 0.95 9 – 1/1 Modulation Type...

  • Page 247: Mn/Cdm570L.iom

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM 16.2.8.2 Receive Modem Configuration Page The Receive Modem Configuration page is activated from the Modem Parameters page . The Receive Modem Configuration Page contains the following options/fields: Note: Turbo FEC selections only diplayed if Turbo card is installed...

  • Page 248: Mn/Cdm570L.iom

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM Menu Options/Fields Entry Description Decoder Rate 1 – 5/16 2 – 21/44 3 – 1/2 4 – 2/3 5 – 3/4 6 – 7/8 7 – 0.95 9 – 1/1 Modulation Type...

  • Page 249: Operations And Maintenance Page

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM 16.2.8.3 AUPC Modem Configuration Page The AUPC Modem Configuration page is activated from the Modem Parameters page . The AUPC Modem Configuration page contains the following options/fields: Note: AUPC Modem Configuration Page is only accessible if AUPC option is available.

  • Page 250: Mn/Cdm570L.iom

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM The Operations and Maintenance page is activated from the Main Menu page . The Operations and Maintenance page contains the following options/fields: Menu Options/Fields Entry Description Unit Information Displays unit current operational Software information.

  • Page 251: Mn/Cdm570L.iom

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM Menu Options/Fields Entry Description 1. Last saved Parameter file 2. Factory – uses the internal, hard-coded factory default parameters. Statistics Activates Statistics Menu page. Event Log Activates Event Log page. Database Operations Activates Administrative Database Operations page.

  • Page 252: Mn/Cdm570L.iom

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM 16.2.9.1 Unit Information Page The Unit Information page is activated by entering “ I ” from the Operations and Maintenance page . The Unit Information page contains the following informatiom: Current System time...

  • Page 253: Mn/Cdm570L.iom

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM Will display the date/time that the EVENTLOG file was EVENTLOG last updated. Will display the date/time that the PARAM1 file was last updated. It will also show what user interface was used to last update the PARAM file.

  • Page 254: Mn/Cdm570L.iom

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM Menu Options/Fields Entry Description Clear all stats Globally resets all statistics counters. Save Parameters This option allows a user to save the current configuration to permanent storage. This configuration will be restored on each successive power cycle.

  • Page 255: Mn/Cdm570L.iom

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM 16.2.9.2.1 IP Statistics Page The IP Statistics page is activated from the Statistics Menu page . The IP Statistics page displays counts of the number of packets routed or dropped in the IP Module.

  • Page 256: Mn/Cdm570L.iom

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM The IP Statistics page contains the following options/fields: Menu Options/Fields Entry Description From Ethernet - Total Ethernet Statistics Page, Rx Good Frames To Ethernet - Total Ethernet Statistics Page, Tx Good Frames...

  • Page 257: Mn/Cdm570L.iom

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM Menu Options/Fields Entry Description Dropped - Filtered Multicast Total Dropped Multicast Packets received from the satellite due to no SAT→LAN or Dropped – Multicast Disable Multicast packet was dropped because, although route...

  • Page 258: Mn/Cdm570L.iom

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM 16.2.9.2.2 QoS Statistics Page The QoS Statistics page is activated from the Statistics Menu page. The QoS Statistics page displays the statistics for the number of IP packets routed, based upon the defined QoS Rules, by the IP Module.

  • Page 259: Mn/Cdm570L.iom

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM Queue11 – Assured Forwarding Class 3 Queue12 – Assured Forwarding Class 4 16.2.9.2.3 Ethernet Statistics Page The Ethernet Statistics page is activated from the Statistics Menu page The Ethernet Statistics page displays the statistics for the number of IP packets received from and sent to the Ethernet interface.

  • Page 260: Mn/Cdm570L.iom

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM Menu Options/Fields Entry Description Tx Maximum Collision Number of frames that are not transmitted because they Count encountered configured max collisions. Tx DMA Underrun Error Number of frames not transmitted or re-transmitted due Count to transmit DMA underrun.

  • Page 261: Mn/Cdm570L.iom

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM 16.2.9.2.4 WAN Statistics The WAN Statistics page is activated from the Statistics Menu page . The WAN Statistics page displays counts of the number of packets routed or dropped in the IP Module Satellite interface.

  • Page 262: Mn/Cdm570L.iom

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM Menu Options/Fields Entry Description WAN Rx Abort/Octet Error Count of aborted frames and octet error frames. Count WAN Rx Overrun Count Count of received frames that exceeded max frame length of 2K bytes in length (Or) overflowed the HDLC buffer.

  • Page 263: Mn/Cdm570L.iom

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM Menu Options/Fields Entry Description Actual Satellite traffic (kbps) Current satellite bandwidth being used. Percentage of WAN Displays percent of bandwidth being saved as a result Bandwidth saved of Header and/or Payload Compression, and optimized satellite framing.

  • Page 264: Mn/Cdm570L.iom

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM 16.2.9.2.5 Compression Statistics The Compression Statistics page is activated from the Statistics Menu page . The Compression Statistics page displays counts of the number of bytes before and after for both Header and Payload Compression. For Header Compression, the percentage of bandwidth savings is displayed.

  • Page 265: Mn/Cdm570L.iom

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM Menu Options/Fields Entry Description Queue01…08 Read Statistics are displayed in a table format showing: Only Pre-Header Comp Bytes Post-Header Comp Bytes Header Comp % Savings Pre-Payload Comp Bytes Post-Payload Comp Bytes...

  • Page 266: Mn/Cdm570L.iom

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM 16.2.9.3 Event Log Page The Event Log page is activated from the Operations and Maintenance page. The Event Log page allows the user to capture all IP Module events to a log. The Event...

  • Page 267: Mn/Cdm570L.iom

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM NOTE: The full Event log file can be retrieved by FTP. Use Admin login and type command ‘get eventlog’. The entire Event log can then be viewed with a text viewer.

  • Page 268: Mn/Cdm570L.iom

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM 16.2.9.4 Administrative Database Operations Page Administrative Database Operations Page is activated from Operations and Maintenance Page . The Database Operations option allows the user to view, save, or erase an existing user configuration of the IP Module.

  • Page 269: Mn/Cdm570L.iom

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM 16.2.9.5 Diagnostics Page The Diagnostics Page is activated from the Operations and Maintenance Page . Using Dump Packets Diagnostics Utilities 1. The Dump Packet Utilities will display a hexadecimal representation of each packet...

  • Page 270: Mn/Cdm570L.iom

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM Menu Options/Fields Entry Description Dump Packets received Toggles [Yes] and [No] from Ethernet Interface IP M Executing this menu option forces the odule to dump a hexadecimal representation of each packet that it receives from the Ethernet Interface.

  • Page 271: Telnet - Logout Option

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM 16.2.10 Telnet - Logout Option When connecting to the IP Module through a Telnet session, the menus present another option to logout of the Telnet session. This logout option is in all the menus and when selected, logs the user out of the Telnet session, returning control of the CLI to the serial interface.

  • Page 272: Chapter 17. Web Server Pages

    The embedded Web Server application provides the user with an easy to use interface to configure and monitor all aspects of the CDM-570L/IP Module. These web pages have been designed for optimal performance when using Microsoft’s Internet Explorer 5.5 or higher.

  • Page 273: Mn/Cdm570L.iom

    All base modem parameters configured via the IP Module (i.e., TX Frequency, data rate, etc.) and the Ethernet Port Address/Mask will be automatically stored in the CDM-570L base modem non-volitile RAM and will be retained if there is a power loss.

  • Page 274: Web Server Menu Tree

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM 17.1.1 Web Server Menu Tree IP Module Table ?. Web Server Menu Tree Level 1 Level 2 Home Home Contact Support Logoff ADMIN Access Features Remote CONFIG MDM Summary Interface Modem...

  • Page 275: Home

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM 17.2 Home Pages 17.2.1 Home Page IP Module Welcome to the CDM-570L/ Web Interface. The following sections will describe the functionality that is unique to the Web Interface.

  • Page 276: Contact Information

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM 17.2.2 Contact Information This page provides basic contact information to reach Comtech EF Data Sales and Customer Support via phone or automated e-mail links.

  • Page 277: Support

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM 17.2.3 Support Notes on SMTP – SMTP can be used to send an email to Comtech EF Data IP Modem Support cdmipsupport@comtechefdata.com from the Support Web Page. The Support Web Page allows you to compose an email message for questions or problems with the...

  • Page 278: Logoff

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM 17.2.4 Logoff IP Module Currently the only allows one connection to the CLI or the Web Interface. Use this option to formally disconnect from the Web Interface. Upon disconnection, you will be required to close the Web Browser so as to delete the security cookie to the IP Module.

  • Page 279: Administrative Data Base

    All base modem parameters configured via the IP Module (i.e., TX Frequency, data rate, etc.) and the Ethernet Port Address/Mask will be automatically stored in the CDM-570L base modem non-volitile RAM and will be retained if there is a power loss.

  • Page 280: Mn/Cdm570L.iom

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM Field Description Image Load From Determines which version of the IP Module Software Package (includes Application, FPGA, and FFPGA) will be loaded upon boot-up. The possible options are: Latest - boot the newest Software Package based upon date.

  • Page 281: Reset Unit

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM 17.2.6 Reset Unit The last item on the left-hand menu is “Reset.” This option will force the internal IP Module to reboot. Notes: The main modem will NOT reboot. There is no verification of the reboot, other than the web-interface timing out due to...

  • Page 282: Chapter 18. Snmp Interface

    For proper SNMP operation, the CDM-570L MIB files must be used with the associated version of the CDM-570L base modem M&C and the IP Controller SW. Please refer to the CDM-570L SW Release Notes for information on the required FW/SW compatibility.

  • Page 283: Snmp Community Strings

    CDMIP Controller MIB file consists of all of the OID’s for management of the IP .mib Controller functions. CDMIP Controller MIB file fw10874-4- CDM-570L MIB file consists of all of the OID’s for management of the CDM-570L .mib modem functions CDM-570L MIB file fw10874-5- CDM-570L Trap MIB file is provided for SNMPv1 traps .mib...

  • Page 284: Snmp Traps

    = public 18.4 SNMP Traps The CDM-570L has the ability to send out SNMP traps when certain events occur in the modem. For example, when the CDM-570L IP Controller boots it sends out a coldstart trap and three linkup traps, one for each interface that is brought up. The CDM-570L also sends out traps when an alarm or a fault occurs in the modem.

  • Page 285: Mib-Ii

    Cdm570LODUAlarm 1.3.6.1.4.1.6247.24.2.0.4 18.5 MIB-II The CDM-570L agent implements RFC 1213, Management Information Base for Network Management of TCP/IP-based Internets. This is known as “MIB-II” or “Public MIB support.” For detailed OID information please refer to the actual MIB file. The agent implements the following Groups: Table ?.

  • Page 286: Interface Group

    Defaults Value SysLocation User Configurable SysServices The system services provided by the CDM-570L in the OSI network model are: ∑ 2 where L is the network layer support by the CDM-570L. In the CDM-570L, this is calculated by 2 (layer 1) + 2...

  • Page 287: Mn/Cdm570L.iom

    MAC address (6 bytes). For the satellite and loopback Interface this value is undefined. ifAdminState Desired state of the interface. For the CDM-570L, the interfaces cannot be changed from an up (1) status. ifOperState Current operational state of the interface. For the CDM-570L, the interfaces will remain in an up (1) status.

  • Page 288: Icmp Group

    This table is implemented per RFC1213. 18.5.2.6 The Route Table Because the CDM-570L does not use a standard route table, the functionality usually provided by the ipRouteTable is implemented in the IP-Controller’s private MIB. Please use the IP Controller private MIB’s route table to add, change, or delete routes.

  • Page 289: Udp Group

    The CDM-570L uses a maximum timeout of 64000 milliseconds. TcpMaxConn Limit on the total number of TCP connections the entity can support. In the CDM-570L, the maximum number of connections is dynamic so a value of –1 is returned. TcpActiveOpens Per RFC1213...

  • Page 290: Egp Group

    CDM-IP570L. 18.6.1.2 Features Availability Subgroup This subgroup tells if a feature is available or unavailable in the CDM-570L. The currently supported FAST features are QoS, IGMP, 3xDES Encryption, Header Compression and Payload Compression. These features must be purchased as additional...

  • Page 291: Interface Group

    The cdmipSmtp subsection sets up the CDM570L to use a SMTP mail server to send a problem report back to Comtech EF Data Modem Support. Along with the problem report, the CDM570L sends the equipment serial number and configuration, which is attached to the email message.

  • Page 292: Route Table Group

    By this table, a user can define which DES key to use for a route. Note: In order for the CDM-570L to properly pass packets over the satellite interface, the user MUST provide the appropriate IP to HDLC address mapping in the Route table.

  • Page 293: Mn/Cdm570L.iom

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM Description cdmipRouteHdlcAddress To send packets over satellite interface, the user needs to configure the route entry with a valid HDLC address. This parameter is similar to next-hop IP address. The user has to set the member ‘cdmipRouteState’...

  • Page 294: Protocols Group

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM Description CdmipIpRouteRowStatus Used in GET operations to tell if the route table entry is active. Used in SET operations to tell if a new route table entry is to be created or an existing route table entry is to be deleted.

  • Page 295: Operation And Maintenance Group

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM 18.6.6 Operation and Maintenance Group This groups contains several miscellaneous operations for the IP Controller card, including saving the IP Controller’s configuration, restoring factory defaults, and resetting the IP Controller. This groups also allows the user to define which image to boot from and into which image to save a new bulk file.

  • Page 296: Qos Rules Group

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM 18.6.8 QoS Rules Group The cdmipQosRules group allows the user to configure the QoS feature. The group contains the QoS table which allows the user to add rules to define how different types of traffic will be treated by the router.

  • Page 297: Monitor Group

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM 18.7.2.3 Rx Parameters The cdm570LRx section allows the user to configure the modem’s demodulator. 18.7.2.4 Frame Parameters The cdm570LFrame section allows the user to turn framing on and off. When framing is enabled, the user can also configure Embedded Distant-End Monitor and Control (EDMAC) parameters and Automatic Uplink Power Control (AUPC) parameters.
  • Page 298 CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM 18.7.3.2 Rx Parameters The cdm570LRxParams section reports the demodulator’s bit error rate, buffer fill state, frequency offset, receive signal level, and Eb/No value. 18.7.3.3 Event Log Parameters The event log is a table that informs the user of any faults that have occurred in the modem.

  • Page 299: Test Group

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM 18.7.4 Test Group This group allows the user to place the modem in various test modes. 18.7.5 SaveLoad Group This group allows the user to save and load modem configurations from non-volatile memory.

  • Page 300: Appendix A. Cable Drawings

    Appendix A. CABLE DRAWINGS The EIA-530 standard pinout (provided on the CDM-570L) is becoming more popular in many applications. However, there are still many occasions when, especially for existing EIA-422/449 and V.35 users, a conversion must be made. For these situations, the following two cable drawings show EIA-530 to EIA-422/449 DCE conversion, and EIA-530 to V.35 DCE conversion.
  • Page 301 SHOULD BE USE METAL BACKSHELLS FOR D TYPE CONNECTORS FEMALE SCREWLOCKS THIS END ENSURE SHIELDING FOIL AND/OR BRAID IS BONDED TO METAL BACKSHELL FOR EMC SHIELDING (9 TWISTED PAIRS PLUS OVERALL FOIL/BRAID SCREEN) CDM-570L EIA530 TO RS422/449 DCE CONVERSION CABLE...
  • Page 302 USE METAL BACKSHELLS FOR D TYPE CONNECTORS ENSURE SHIELDING FOIL AND/OR BRAID IS BONDED TO METAL BACKSHELL FOR EMC SHIELDING (7 TWISTED PAIRS PLUS OVERALL FOIL/BRAID SCREEN BELDEN 8107 OR 8307, OR NEAR EQUIVALENT) CDM-570L EIA530 TO V.35 DCE CONVERSION CABLE...
  • Page 303 9 PIN D FEMALE 9 PIN D FEMALE 9 PIN D FEMALE 9 PIN D FEMALE PC 9 PIN SERIAL PORT TO CDM-570L RS232 REMOTE CONTROL PORT...

  • Page 304: Appendix B. Eb/No Measurement

    Appendix B. Eb/No MEASUREMENT Although the CDM-570L calculates and displays the value of receive Eb/No on the front panel of the unit, it is sometimes useful to measure the value using a spectrum analyzer, if one is available.
  • Page 305 CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM The idea is to accurately measure the value of (Co+No)/No, (Carrier density + Noise density/Noise density). This is accomplished by tuning the center frequency of the Spectrum analyzer to the signal of interest, and measuring the difference between the peak spectral density of the signal (the flat part of the spectrum shown) and the noise density.
  • Page 306 Eb/No Eb/No Eb/No Eb/No Eb/No Eb/No Eb/No Eb/No Eb/No Eb/No Eb/No Eb/No Eb/No Eb/No Eb/No (Co+No) Uncoded Rate 1/2 Rate 21/44 Rate 5/16 Uncoded Rate 1/2 Rate 3/4 Rate 7/8 Rate 0.95 Rate 2/3 Rate 3/4 Rate 7/8 Rate 0.95 Rate 3/4 Rate 7/8 BPSK...
  • Page 307 CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM This page is intentionally blank...

  • Page 308: Appendix C. Fast Activation Procedure

    These techniques allow the use of a unique access code to enable configuration of the available hardware. The access code can be purchased at any time from Comtech EF Data. Once obtained, the access code is loaded into the unit through the front panel keyboard.

  • Page 309: View Currently Installed Features

    5000 kbps Not Installed Contact a Comtech EF Data sales representative to order features. You will be asked to provide the Modem Serial Number. Comtech EF Data Customer Support personnel will verify the order and provide an invoice and instructions, including a 20-character configuration code.

  • Page 310: Enable / Disable Demo Mode

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM FAST Code Rejected! (ENTER or CLEAR) Enable / Disable Demo Mode Control FAST Demo Mode as follows: a. Press CLEAR to return to the menu. b. Select Cnfg , then press ENTER. Use the ◄...
  • Page 311 CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM This page is intentionally blank...

  • Page 312: Appendix D. Quick-Start Guide

    Appendix D. Quick-Start Guide Introduction This quick start guide will allow a user to configure a pair of CDM-570L modems with IP Modules installed (referred to as CDM-IP in rest of the document) from beginning (i.e., starting from factory default settings) and be able to pass traffic within minutes. It is assumed that the user is familiar with the configuration of the base satellite modem.

  • Page 313: Equipment Setup

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM Equipment Setup Step Description Connect each CDM-IP to the PC via the Ethernet Hub. Connect the TX IF on CDM-IP 1 to RX IF of CDM-IP 2 and vice-versa. Connect the DB-9 end of the console cable to the COM1 or COM2 port of the PC and the RJ-11 end to the console port at the back of CDM-IP 1.

  • Page 314: Main Menu

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM Main Menu Figure 22. Main Menu To use the Command Line Interface (CLI), select the appropriate sub-menu or the entry by pressing the character indicated at the right. Enter x to return to the previous menu.

  • Page 315: Restoring Factory Default Configuration

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM Note: Any CDM-IP configuration changes need to be saved to permanent storage by selecting [S] from any menu screen and then typing [y] to save. Restoring Factory Default Configuration The following sections in this guide assume that the CDM-IP is still in factory default configuration for IP.

  • Page 316: Pc Configuration

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM PC Configuration Step Description Set the IP address on PC 1 to 172.16.10.11, mask to 255.255.255.0. Set the IP address on PC 2 to 172.16.10.12, mask to 255.255.255.0. Reboot the PCs (if required).

  • Page 317: Router Mode Point-To-Point System Configuration

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM Do not enable IF Loopback (or link the TX to RX by a BNC cable or satellite link) on a CDM-IP modem operating in easyConnect when connected to a LAN. In this configuration, easyConnect...

  • Page 318: Setting Cdm-Ip Modems To Router Mode Operation

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM Setting CDM-IP Modems to Router Mode Operation Perform the following steps on CDM-IP 1 Step Description From the Main Menu, select Administration [A] sub-menu. From the Administration menu, select CDM-IP Working Mode [C].

  • Page 319: The Hdlc Mac Address Is User Configurable

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM The HDLC MAC address is user configurable. Setting IP Address(es) Step Description From the Main Menu select Network Interface Configuration sub-menu [I]. From the Interface Configuration Menu select Ethernet Interface (fei0) sub-menu [E].
  • Page 320 CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM For Interface to which route is destined to <E-Ethernet S-Satellite Enter : S> select S For HDLC address [SMALL NETWORK] in hex <0x1 - 0xFE, enter = 0000>: select 1 CDM-IP 2 Route Table should display the following:...

  • Page 321: Troubleshooting Ip Module

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM Troubleshooting IP Module The CDM-IP comes with a variety of diagnostic tools to aid in identifying the traffic path going into and out of the CDM-IP modem. This troubleshooting section shows how to use some of these tools and also identifies several common problems encountered when first setting up two CDM-IP modems.
  • Page 322 CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM No Ping response from the Verify both CDM-IP’s are in easyConnect/Point- locally connected PC to the to-Point Modes. remote CDM-IP or remote PC. Verify IF link between modems for proper settings ICMP response is ‘Request...

  • Page 323: Router Mode Troubleshooting

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM Router Mode Troubleshooting Use the following troubleshooting steps if unable to successfully send traffic in Router Mode. Router Mode Troubleshooting Step Problem Action No Ping response from the Verify correct IP address/subnet on PC and locally connected PC to the CDM-IP.

  • Page 324: Appendix E. Flash Upgrading

    Appendix E. FLASH UPGRADING The CDM-570L eliminates the need for updating firmware by physically replacing EPROMs. Instead, the CDM-570L modem uses ‘flash memory’ technology internally, and new firmware can be uploaded to the unit from an external PC, as follows: Go to: www.comtechefdata.com...
  • Page 325 FW10805x.txt, where "x" is the version (history notes). c. README.TXT installation notes 5. Connect the client PC to the CDM-570L modem 10/100 Ethernet M&C via a hub or a switch, or directly to a PC with a crossover cable.
  • Page 326 CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM To PING and FTP from DOS, press the “Start” button on the Windows toolbar, and select the “Run...” option. From Win95 or Win98, type “command”. From WinNT, Win2K or WinXP, type “cmd”. You can also use the “DOS Prompt” or “Command Prompt”...

  • Page 327: Ethernet Ip Module Ftp Upload Procedure

    CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM Ethernet IP Module FTP Upload Procedure 1. Identify the reflashable product, firmware number, and version to be downloaded. From the front panel display, find the IP Module information in the <Util > <Firmware >...
  • Page 328 FWxxxxxx.txt, where "x" is the version (history notes). c. README.TXT installation notes. 5. Connect the client PC to the CDM-570L modem 10/100 Ethernet Traffic via a hub or a switch, or directly to a PC with a crossover cable.
  • Page 329 CDM-570L Satellite Modem with IP Module Revision 1 MN/CDM570L.IOM a. The PC should report that the file transfer has occurred, and the display on the modem will stop reporting “PROGRAMMING FLASH SECTOR # xx – PLEASE WAIT”. b. Terminate the FTP session by typing "bye" and closing the DOS window.
  • Page 330 METRIC CONVERSIONS Units of Length Unit Centimeter Inch Foot Yard Mile Meter Kilometer Millimeter 1 centimeter — 0.3937 0.03281 0.01094 6.214 x 10 0.01 — — 1 inch 2.540 — 0.08333 0.2778 1.578 x 10 0.254 — 25.4 1 foot 30.480 12.0 —...
  • Page 331 2114 85281 WEST TH STREET TEMPE ARIZONA 480 • 333 • 2200 PHONE 480 • 333 • 2161...

Table of Contents
