V i p e r s a t C o nf i g u r a t i o n

Set Remote Policies

This menu item, which appears for GIR and Entry Channel Hub types, allows
each Remote to be configured for specific data switching conditions. Entering P
at the STDMA Remotes Menu command prompt displays the Remote Policies
screens shown in either figure 3-20 (GIR Hub) or figure 3-22 (Entry Channel
Hub).

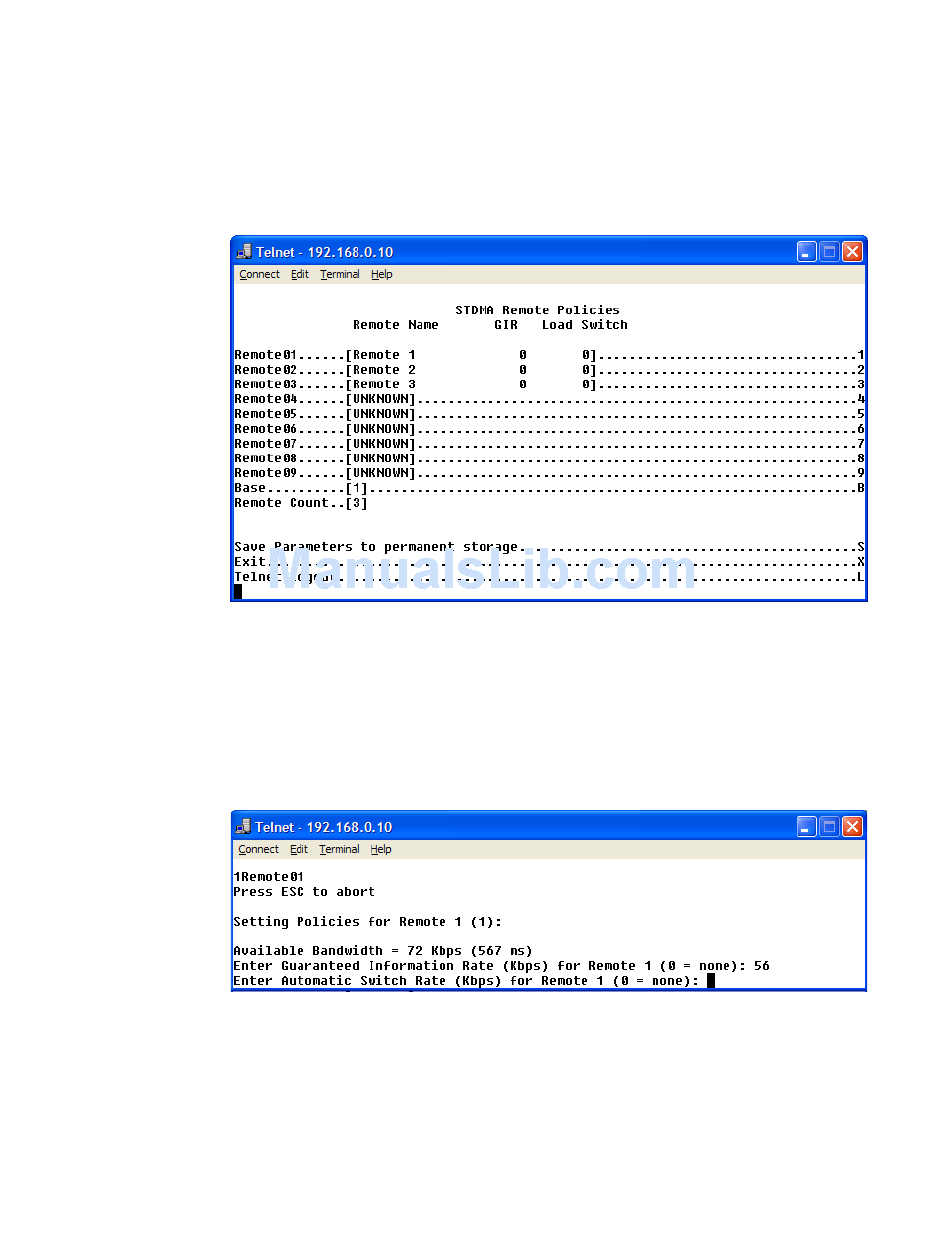

Figure 3-20
STDMA Remote Policies screen (GIR Hub)
Entering the Remote number at the command prompt in figure 3-20 allows the
Guaranteed Information Rate and the Automatic Load Switch Rate for that
Remote to be set, as shown in figure 3-21. Note that the Available Bandwidth is
displayed for reference in this screen to assist with entering the appropriate
rates. The cycle length for GIR is limited to a maximum of one second.
Figure 3-21 GIR Remote Policies prompt
Set the Automatic Load Switch Rate to a value greater than the GIR to allow the
Remote to be automatically switched out of STDMA and into SCPC mode
when traffic exceeds the GIR. A Switch Rate of 0 will prevent the Remote from
being switched out of STDMA and into SCPC mode.
V i p e r s a t C D M - 5 7 0 / 5 7 0 L U s e r G u i d e
3-20
