RADIUS server every 15 minutes. The system is instructed to transmit the user
name to the RADIUS server after removing the user domain name.
The user name of the local 802.1X access user is
(input in plain text). The idle cut function is enabled.
localpass
Networking Diagram

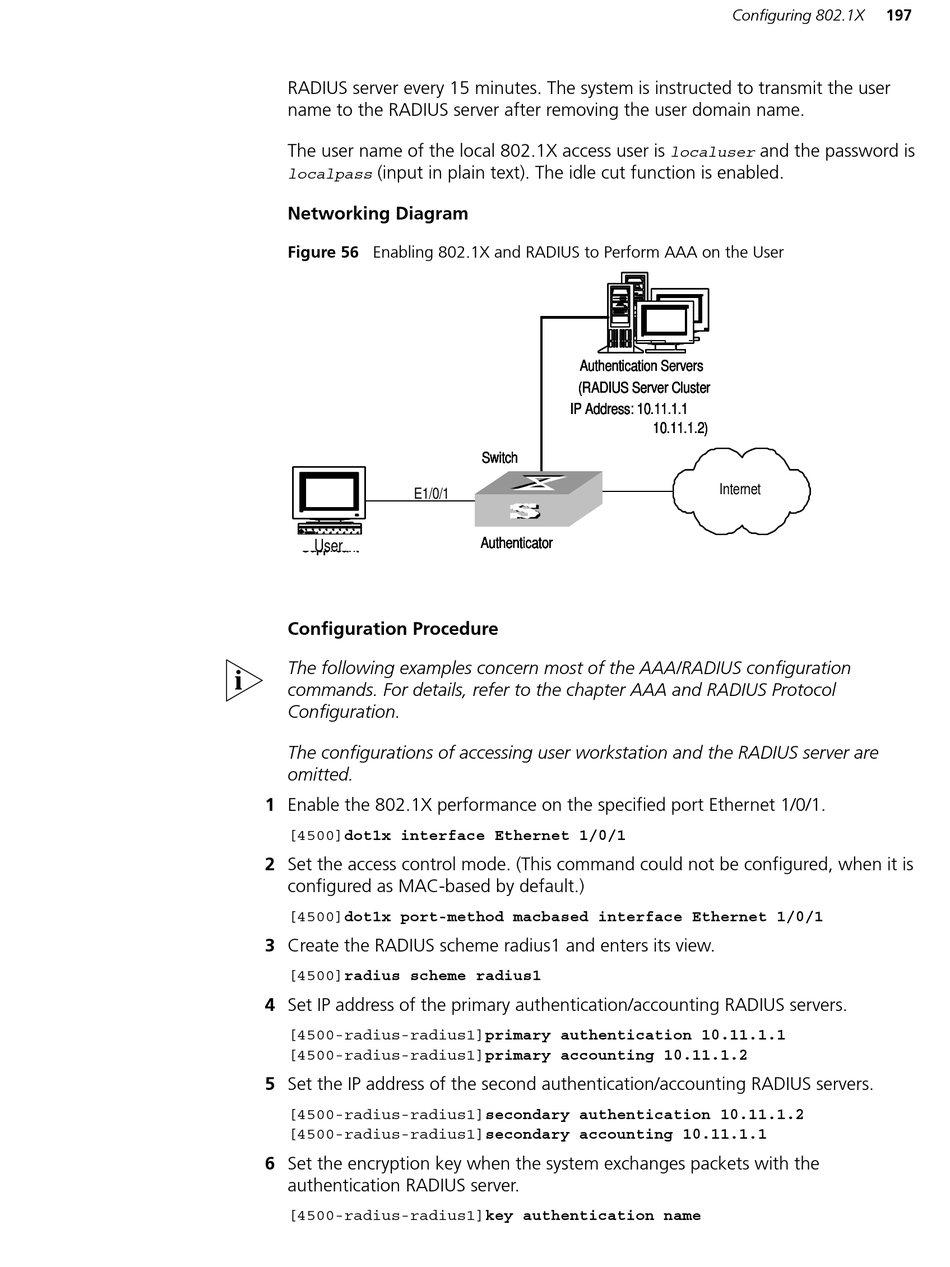

Figure 56 Enabling 802.1X and RADIUS to Perform AAA on the User
E1/0/1
User
Supplicant Supplicant Supplicant Supplicant Supplicant
Configuration Procedure
The following examples concern most of the AAA/RADIUS configuration
commands. For details, refer to the chapter AAA and RADIUS Protocol
Configuration.
The configurations of accessing user workstation and the RADIUS server are
omitted.
1 Enable the 802.1X performance on the specified port Ethernet 1/0/1.
[4500]dot1x interface Ethernet 1/0/1
2 Set the access control mode. (This command could not be configured, when it is
configured as MAC-based by default.)
[4500]dot1x port-method macbased interface Ethernet 1/0/1
3 Create the RADIUS scheme radius1 and enters its view.
[4500]radius scheme radius1
4 Set IP address of the primary authentication/accounting RADIUS servers.
[4500-radius-radius1]primary authentication 10.11.1.1
[4500-radius-radius1]primary accounting 10.11.1.2
5 Set the IP address of the second authentication/accounting RADIUS servers.
[4500-radius-radius1]secondary authentication 10.11.1.2
[4500-radius-radius1]secondary accounting 10.11.1.1
6 Set the encryption key when the system exchanges packets with the
authentication RADIUS server.
[4500-radius-radius1]key authentication name
Authentication Servers Authentication Servers Authentication Servers Authentication Servers Authentication Servers
(RADIUS Server Cluster (RADIUS Server Cluster (RADIUS Server Cluster (RADIUS Server Cluster (RADIUS Server Cluster
IP Address: 10.11.1.1 IP Address: 10.11.1.1 IP Address: 10.11.1.1 IP Address: 10.11.1.1 IP Address: 10.11.1.1
10.11.1.2) 10.11.1.2) 10.11.1.2) 10.11.1.2) 10.11.1.2)
Switch Switch Switch Switch Switch
Authenticator Authenticator Authenticator Authenticator Authenticator
Configuring 802.1X
and the password is
localuser
Internet Internet Internet Internet Internet
197
