Zoom X7N User Manual page 11

not located near the modem, to prevent interference between
the modem and phone when the phone is off-hook.
To use a filter/splitter with a modem and a phone, connect
the filter/splitter's LINE or PHONE LINE jack to a phone
jack in the wall, plug the supplied phone cord between your
modem's DSL jack and the filter/splitter's MODEM jack,
and plug the phone into the filter/splitter's PHONE jack.
(Some but not all filter/splitters require you to use a short
phone cord to connect the filter/splitter to a phone jack in
the wall.)
Note that the filter/splitter is NOT required if you simply
want to plug your modem into a phone jack in the wall,
without sharing that jack with a telephone.
If you are using a filter/splitter with a phone only and not a
modem, connect the filter/splitter's LINE or PHONE
LINE jack to a phone jack in the wall, then plug the phone
into the filter/splitter's PHONE jack. (Some but not all
filter/splitters require you to use a short phone cord to
connect the filter/splitter to a phone jack in the wall.)
6 After a few seconds, your DSL LED will begin blinking, then
become solid. If the DSL LED does not become solid, please
refer to the Appendix A: Troubleshooting
7 Refer to Logging into the Configuration Manager on page
14 and then continue with Step 6.

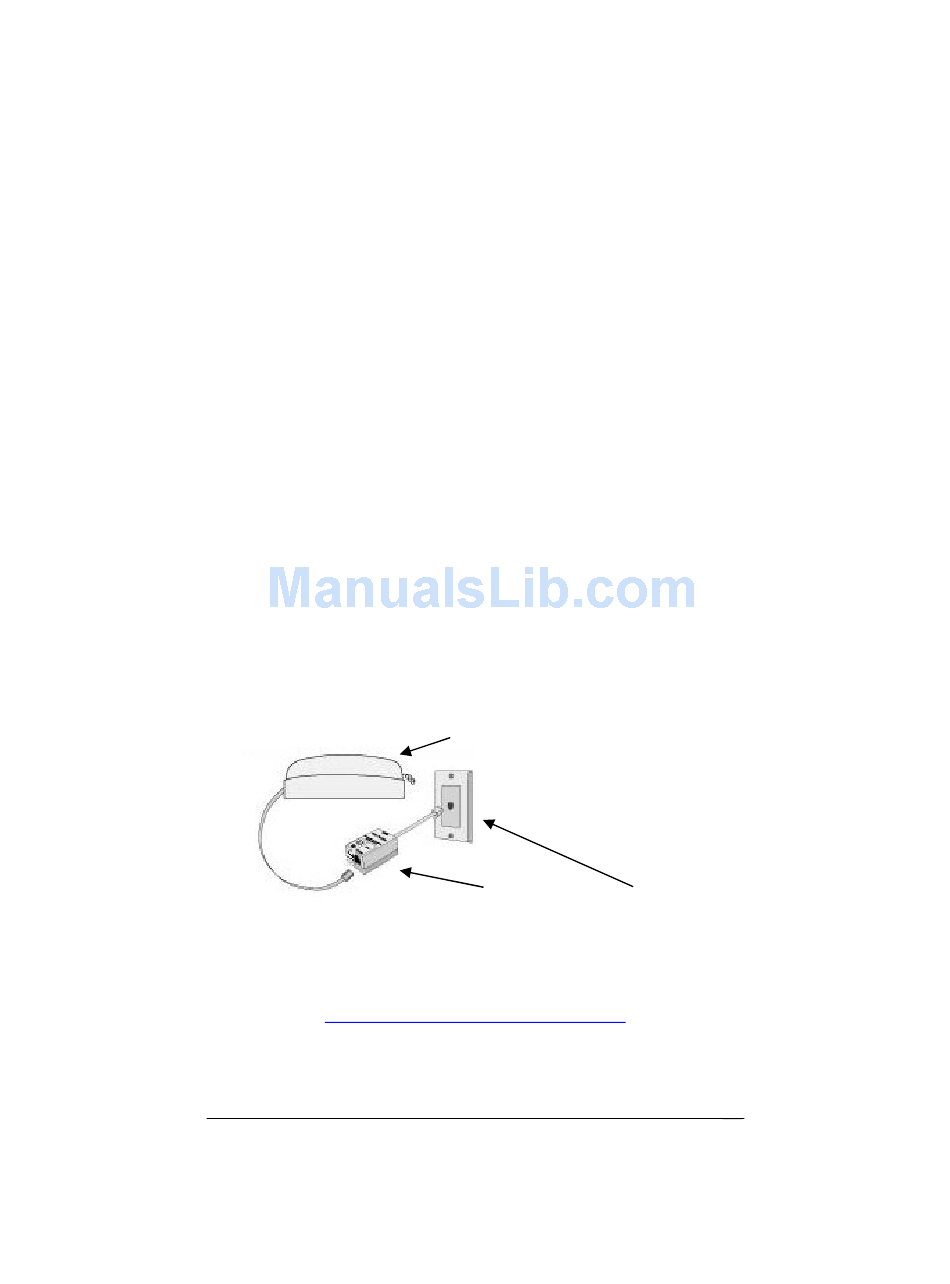

Phone
Filter Wall telephone jack
Tips.
11
