Crestron TPMC-12L
TPMC-12 (Digitals)
Operations Guide – DOC. 6686C

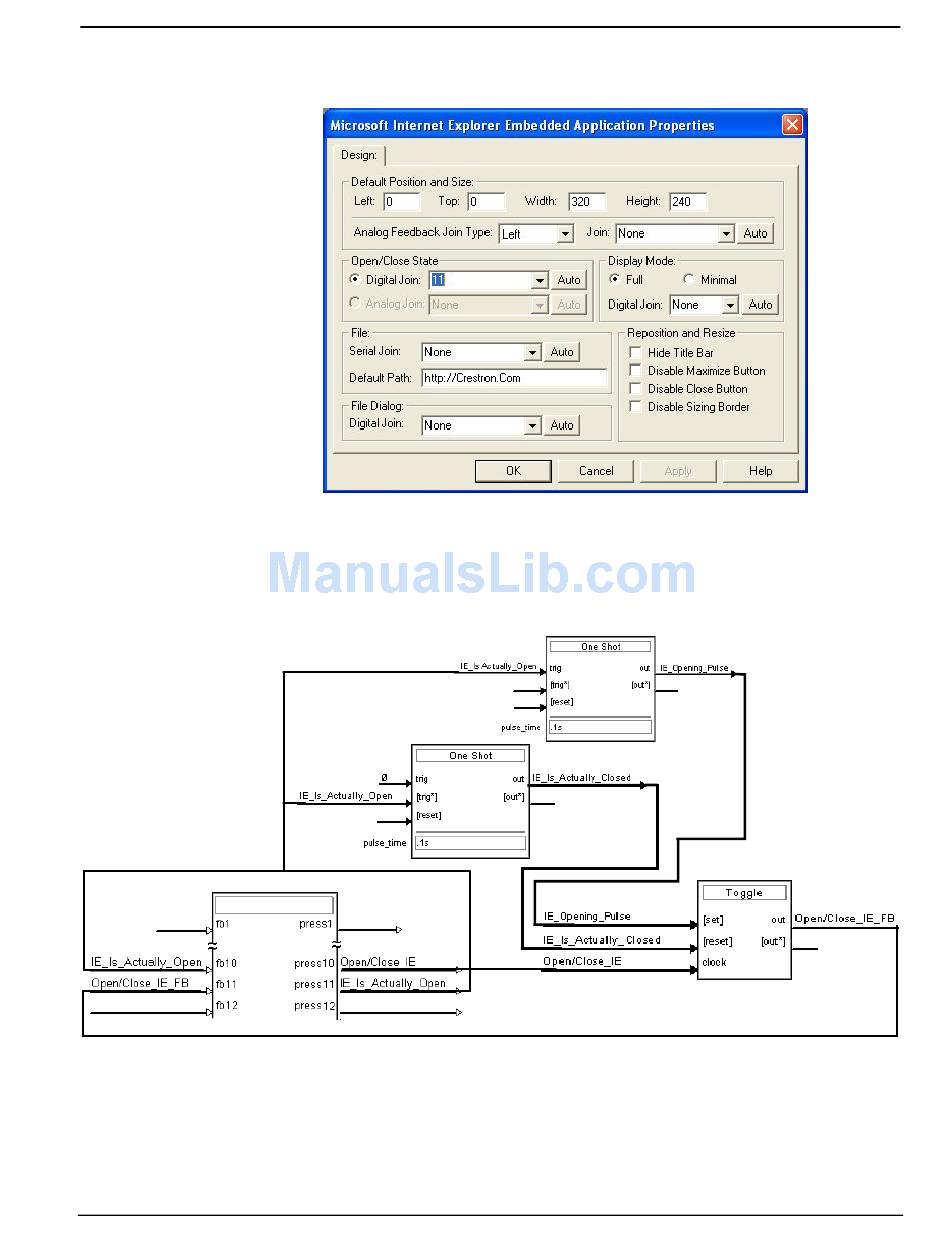

Sample of an "Embedded Application Properties" Window
Programming Embedded Windows Applications
The following diagram is an example of a basic SIMPL program that enables you to
open/close an embedded application. The example program is discussed following
the diagram.
The example has Join #10 assigned to a button that is used to toggle the state of
Internet Explorer. Press10 is routed to the clock line of a Toggle symbol. The output
of the toggle is routed to fb11. Join #11 is referred to as the "Open/Close State
Digital Join." The feedback signal of the Open/Close State Digital Join is used to
Open/Close the application. In this example, when fb11 goes high, Internet Explorer
opens, and when fb11 goes low, Internet Explorer closes. However, since the
®
Isys
12" Wall Mount Touch Screen
®
12" Wall Mount Touch Screen: TPMC-12L • 53
