Isys 12" Wall Mount Touch Screen
®
40 • Isys
12" Wall Mount Touch Screen: TPMC-12L
4. Insert and tighten the eight supplied screws (finger tight and then using a #2
Phillips screwdriver, tighten an additional 1/8-turn).
5. Cover the mounted unit with the bezel. Refer to the illustration following
this step.

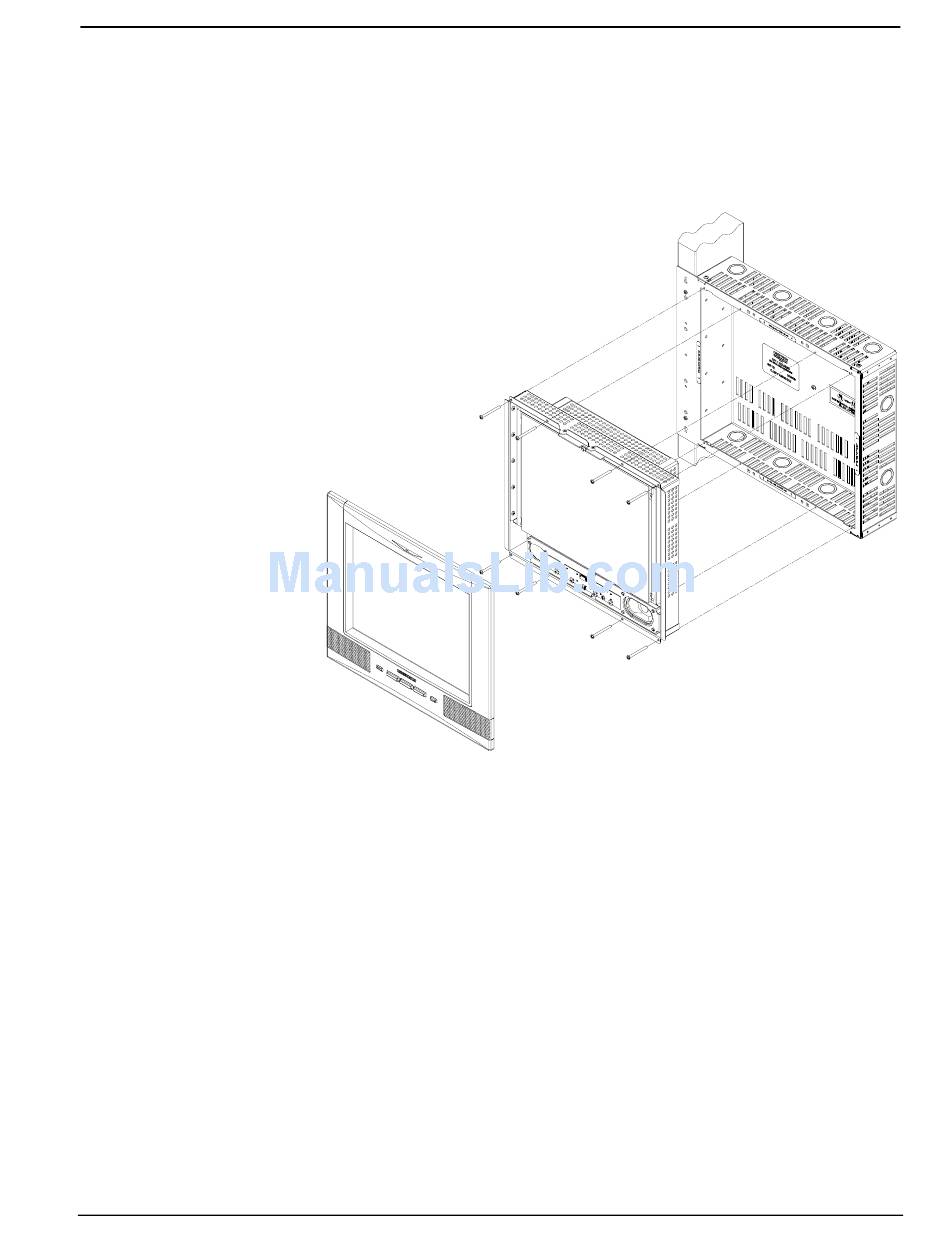

Exploded View of Mounting the TPMC-12L in the Optional BB-12L Back Box
Touch Screen Removal
If it is necessary to remove the touch screen after it has been installed into a
mounting surface, complete the following steps in the order provided to remove the
touch screen. The only tool required is a #2 Phillips tip screwdriver.
1. Lift the bezel off the touch screen. Do not apply excessive pressure to the
touch screen.
2. Loosen and remove the screws that secure touch screen to the mounting
option in use.
3. Using equal pressure, carefully remove the touch screen from the opening.
4. If necessary, secure and label the attached cables before disconnecting them
from the back of the touch screen.
