12" Wall Mount Touch Screen: TPMC-12L

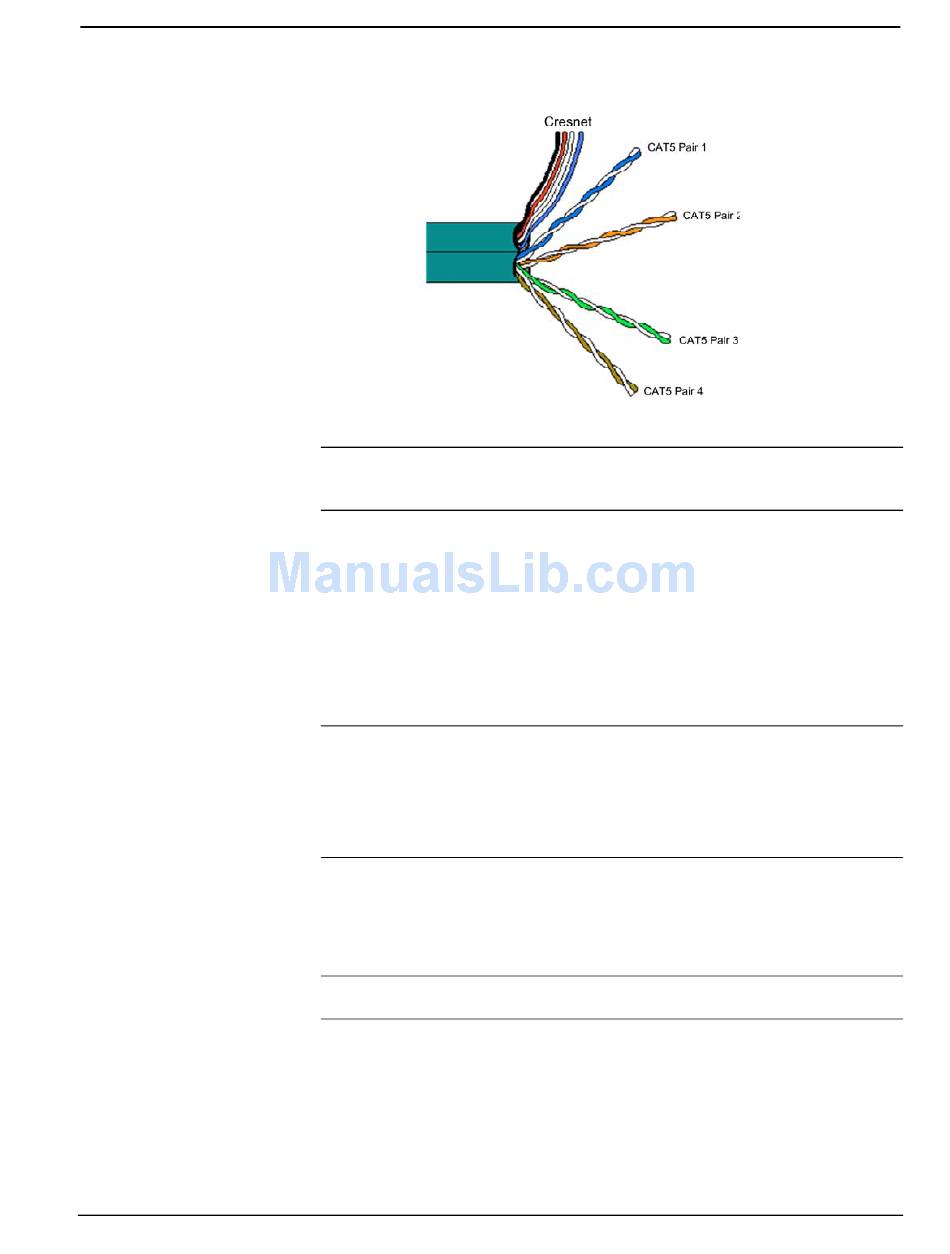

CresCAT-QM Cable
CresCAT-QM
Cable
NOTE: Do not untwist the two wires in a single pair for more than 1/3-1/2"
(8-12 mm) when making a connection. The twists are critical to canceling out
interference between the wires.
The aggregate cable length of a signal path originating at a QM transmitter and
terminating at a TPMC-12L must not exceed 450 feet (137 meters). Video signals
may experience a loss of quality over very long lengths of cable. This phenomenon is
due to the added resistance and capacitance of longer cable lengths and is not
peculiar to either Crestron and/or QuickMedia systems. To ensure sufficient
bandwidth, the maximum aggregate cable length should not exceed 450 feet. The use
of lower-resolution signals may allow increased cable length but must be tested by
the installer with the sources to be used. The QM pin assignment is based on the
EIA/TIA 568B RJ-45 Jack standard.
NOTE: When transmitting S-video, luminance uses the green video pathway and
chrominance uses the red video pathway. When transmitting composite video, the
signal is carried on the blue video pathway.
NOTE: When using CresCAT-QM wiring, four additional wires are included for
making Cresnet connections.
When connecting multiple QM devices, the route between a QM origination point
(transmitter) and a QM endpoint (receiver) cannot have more than two midpoints
(e.g. QM-MD7x2 or other QM switchers). Refer to the following diagram when
configuring a QM network.
NOTE: The aggregate length from transmitter to receiver cannot have a delay skew
of more than 22 ns.
