Isys
12" Wall Mount Touch Screen
®
10 • Isys
12" Wall Mount Touch Screen: TPMC-12L

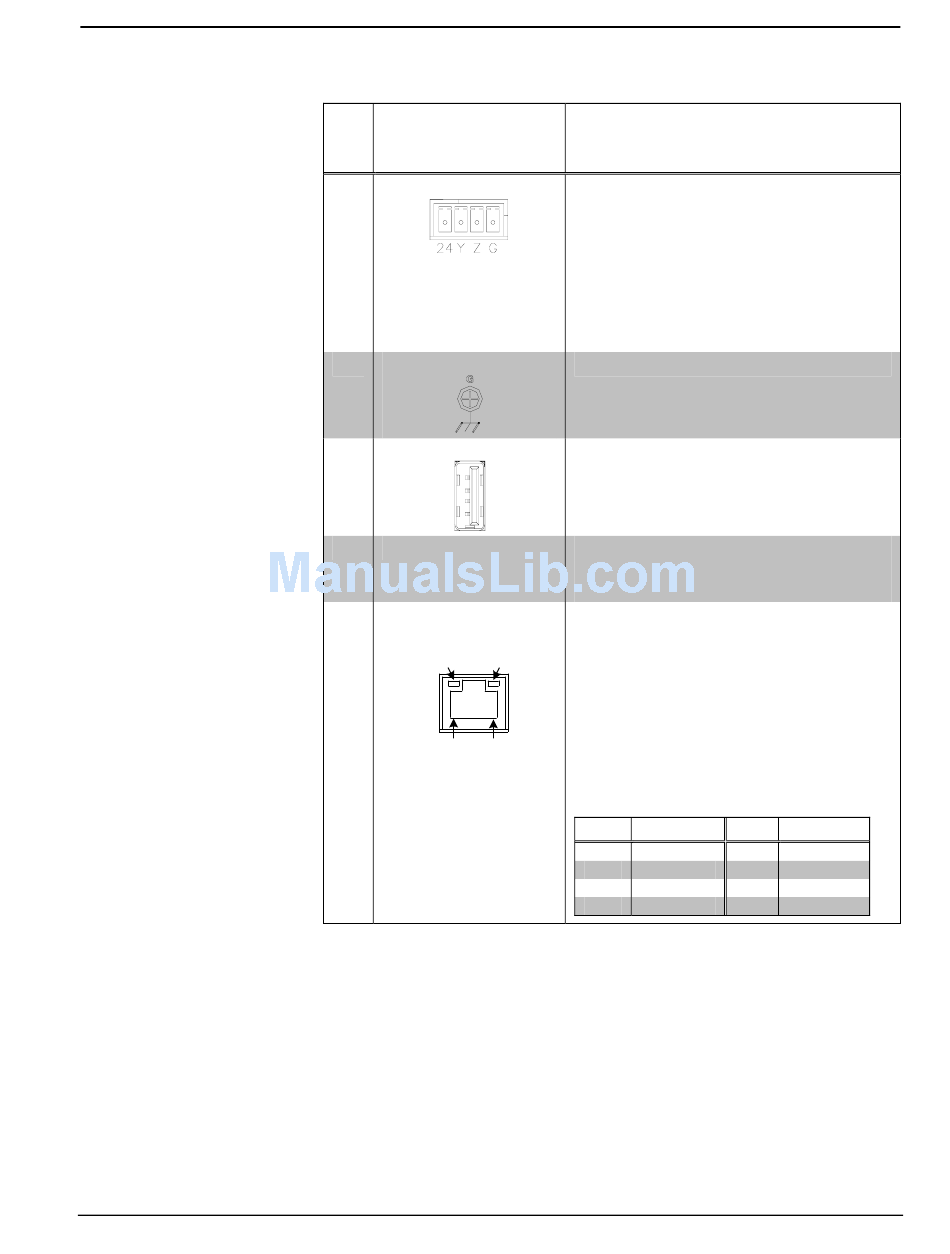

Connectors, Controls & Indicators
#
CONNECTORS
CONTROLS &
INDICATORS
1
NET
2
GROUND
3
USB
1
2
3
4
4
MEMORY EXPANSION
5
LAN
YELLOW/
GREEN
GREEN
LED
LED
PIN 8
PIN 1
(Continued on following page)
Crestron TPMC-12L
1
,
DESCRIPTION
(1) 4-pin 3.5 mm detachable terminal block
Connects to Cresnet control network or
TPMC-CH-IMC interface module (included)
via 15 foot (4.6 meter) "triamese" cable
provided
24: Power (24 Volts DC)
Y:
Data
Z:
Data
G: Ground
(1) 6-32 screw, chassis ground lug
(2) USB Type A female
USB 2.0 ports for USB keyboard, mouse and
2
storage devices
(1) MMC compatible card slot
Accepts Multimedia Memory Cards (MMC)
up to 4 GB for memory expansion
(1) 8-wire RJ-45 with two LED indicators
10BASE-T/100BASE-TX/1000BASE-T
Ethernet port
Left yellow LED indicates 10 Mbps link status
Left green LED indicates 100 Mbps link
status
Right green LED indicates 1000 Mbps link
status
For all LEDs, blinking = active,
on = no activity, off = no link
PIN
SIGNAL
1
A +
2
A -
3
B +
4
C +
Operations Guide – DOC. 6686C
2
PIN
SIGNAL
5
C -
6
B -
7
D +
8
D -
