Pro-Form 420 Ce Elliptical Manual page 9

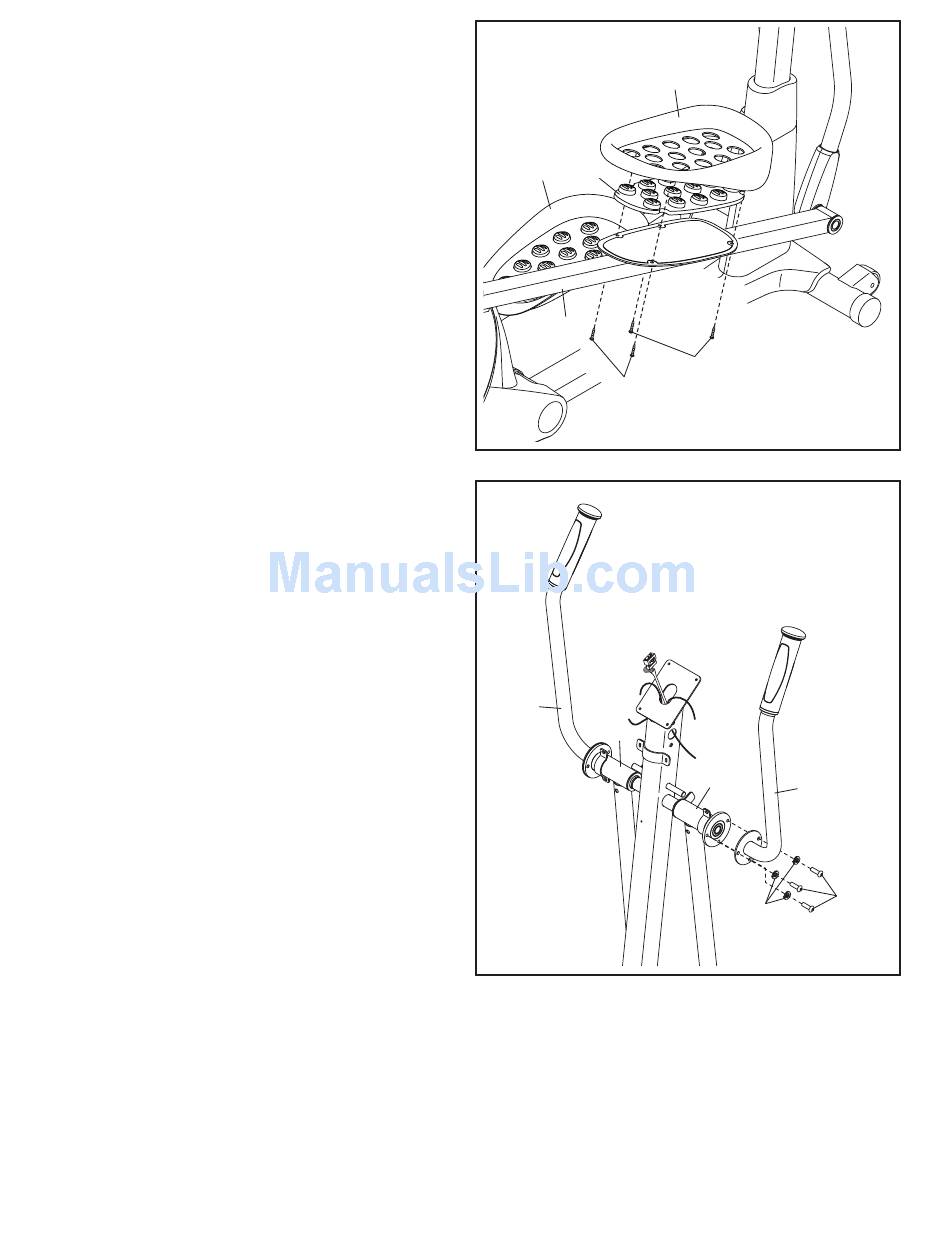

6. Identify the Right Pedal (14) and the Right Gel
Pad (81) and orient them as shown.
Set the Right Gel Pad (81) and the Right Pedal
(14) on the Right Pedal Arm (12).
Attach the Right Pedal (14) to the Right Pedal
Arm (12) with four M6 x 12mm Screws (111).
Attach the Left Pedal (15) to the Left Pedal
Arm (not shown) in the same way.
7. Identify the Right Upper Body Arm (8) and orient it
as shown.
Attach the Right Upper Body Arm (8) to the
Right Upper Body Leg (6) with three M8 x 16mm
Screws (102) and three M8 Split Washers (103).
Attach the Left Upper Body Arm (9) to the Left
Upper Body Leg (7) in the same way.
6
15
81
12
111
7
9
7
9
14
111
6
8
102
103
