Pro-Form 420 Ce Elliptical Manual page 8

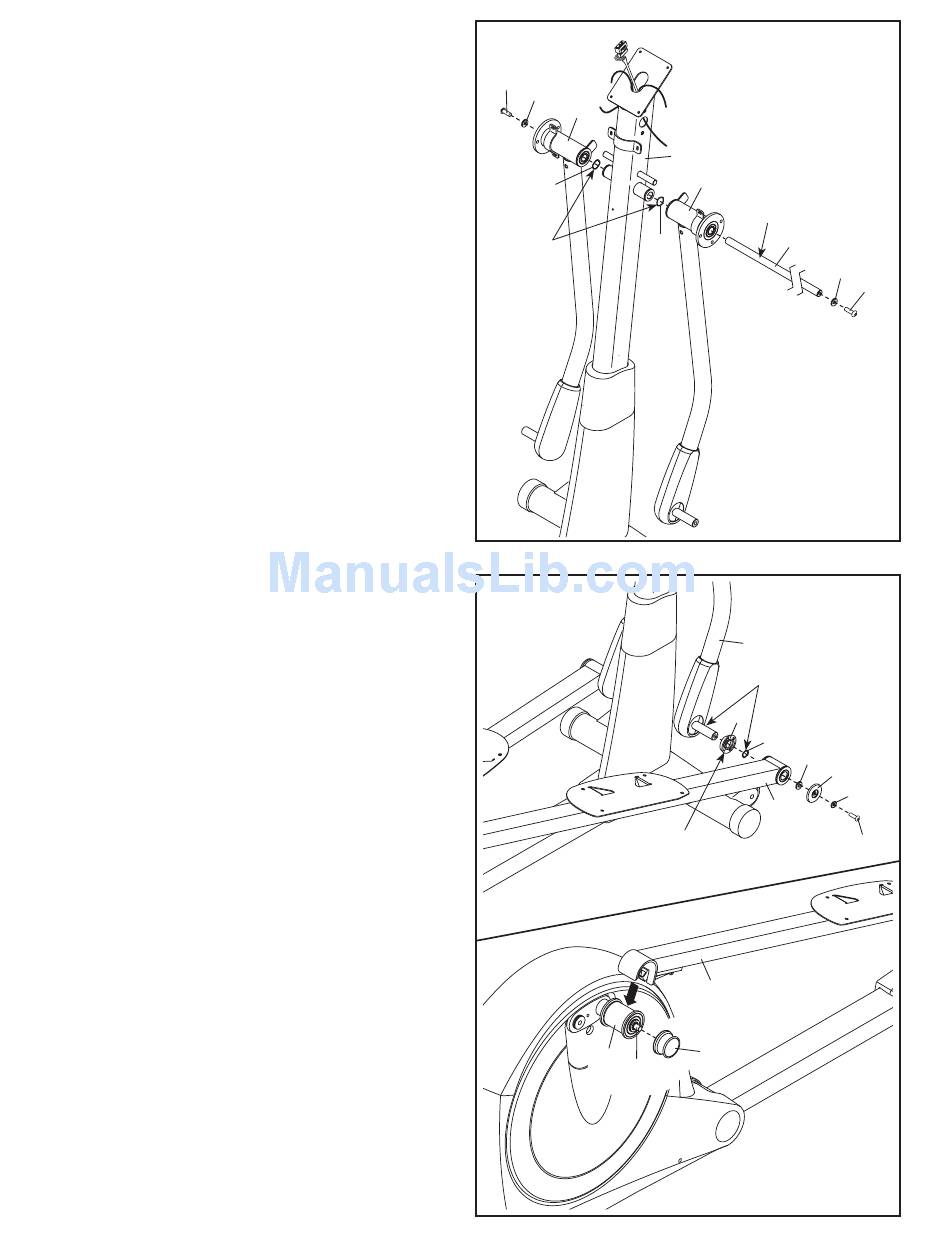

4. Using a plastic bag to keep your fingers clean,
apply a generous amount of the included grease
to the Upright Axle (48) and to two Small Wave
Washers (118).
Insert the Upright Axle (48) into the Upright (5)
and center it. Slide a Small Wave Washer (118)
onto each end of the Upright Axle.
Identify the Right and Left Upper Body Legs (6, 7
and orient them as shown.
Slide the Right and Left Upper Body Legs (6, 7)
onto each side of the Upright Axle (48).
At the same time, tighten two M8 x 16mm
Screws (102) with M8 x 23mm x 2mm Washers
(83) into the ends of the Upright Axle (48). Firmly
tighten the Screws.
5. See the upper drawing. Apply some of the
included grease to the axle on the Right
Upper Body Leg (6) and to a Medium Wave
Washer (112).
Slide a Leg Spacer (55) and the Medium Wave
Washer (112) onto the Right Upper Body Leg
(6). Make sure that the flat side of the Leg
Spacer is facing outward.
Identify the Right Pedal Arm (12) and orient it as
shown. Slide the Right Pedal Arm onto the Right
Upper Body Leg (6).
Attach the Right Pedal Arm (12) with an M8 x
23mm Shoulder Screw (98), an M8 x 16mm x
2mm Washer (59), an Axle Cover (56), and an
M8 x 23.5mm x 1mm Washer (110).
See the lower drawing. Press the Right Pedal
Arm (12) onto the right Adjustment Sleeve (46).
Make sure that the Right Pedal Arm latches
into place.
Tighten an Adjustment Knob (45) onto the right
Adjustment Pin (44).
Repeat this step on the other side of the
elliptical.
4
102
83
7
118
Grease 118
5
46
44
8
5
6
Grease
48
83
6
Grease
55
112
110
56
12
Flat
Side
12
45
102
59
98
