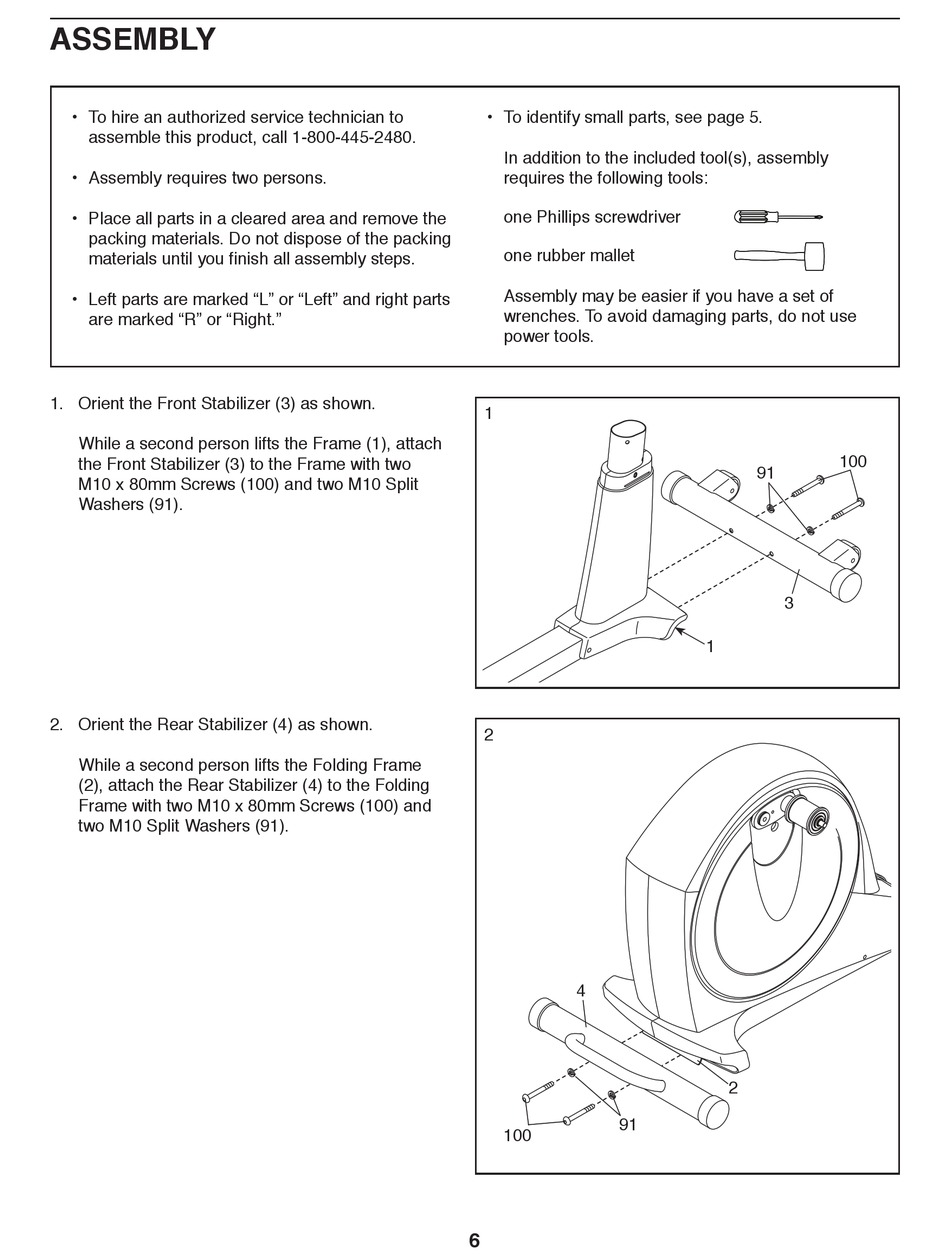

ASSEMBLY

•• To hire an authorized service technician to
assemble this product, call 1-800-445-2480.
•• Assembly requires two persons.
•• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until you  nish all assembly steps.
•• Left parts are marked “"L”" or “"Left”" and right parts
are marked “"R”" or “"Right.”"
1. Orient the Front Stabilizer (3) as shown.
While a second person lifts the Frame (1), attach
the Front Stabilizer (3) to the Frame with two
M10 x 80mm Screws (100) and two M10 Split
Washers (91).
2. Orient the Rear Stabilizer (4) as shown.
While a second person lifts the Folding Frame
(2), attach the Rear Stabilizer (4) to the Folding
Frame with two M10 x 80mm Screws (100) and
two M10 Split Washers (91).
•• To identify small parts, see page 5.
In addition to the included tool(s), assembly
requires the following tools:
one Phillips screwdriver
one rubber mallet
Assembly may be easier if you have a set of
wrenches. To avoid damaging parts, do not use
power tools.
1
2
4
91
100
6
100
91
3
1
2
