Pro-Form 420 Ce Elliptical Manual page 7

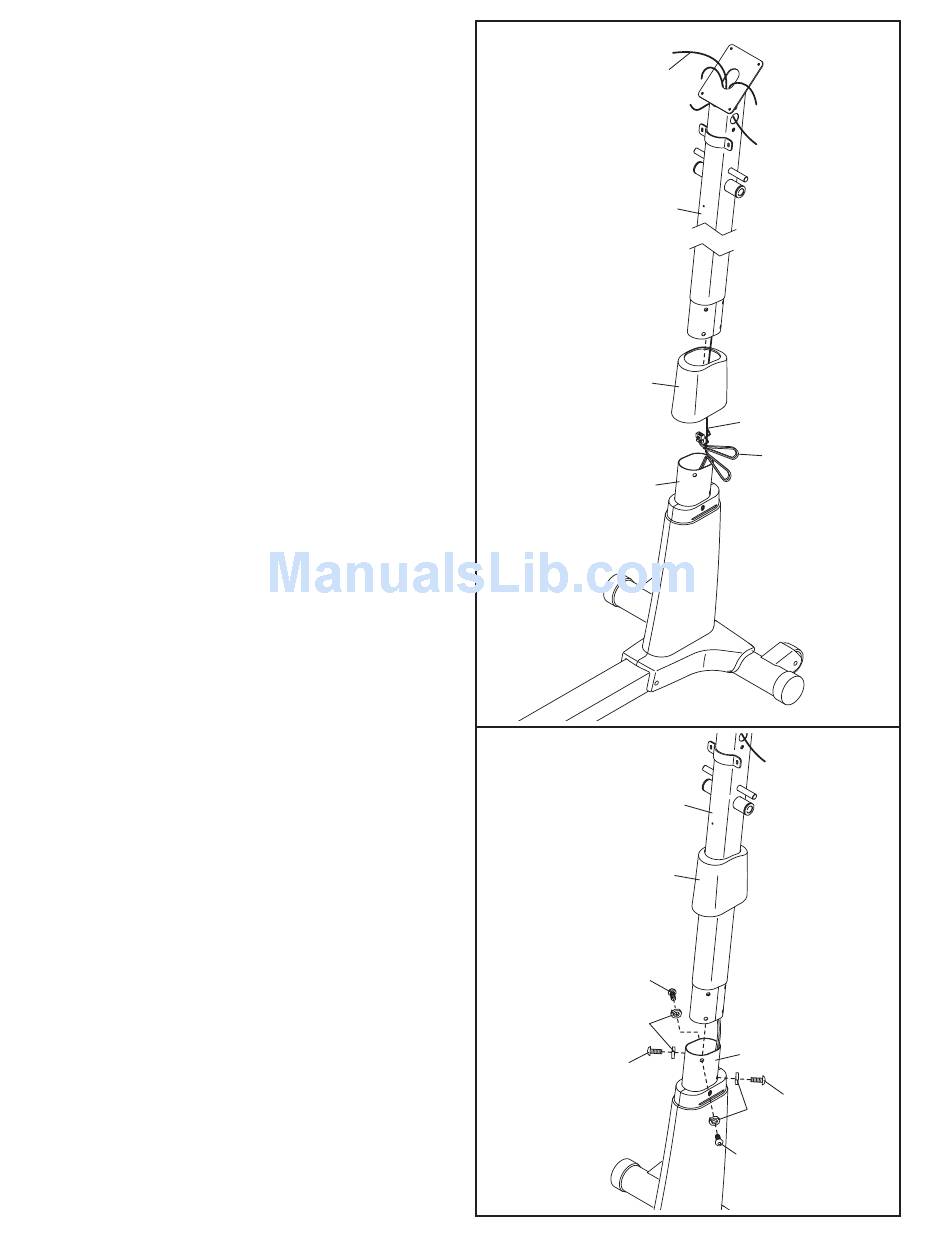

3a. Orient the Upright (5) and the Top Cover (23)
as shown. Slide the Top Cover upward onto the
Upright.
Have a second person hold the Upright (5) and
the Top Cover (23) near the Frame (1).
Locate the wire tie in the Upright (5). Tie the
lower end of the wire tie to the Wire Harness
(60). Then, pull the upper end of the wire tie until
the Wire Harness is routed through the Upright.
Tip: To prevent the Wire Harness (60) from
falling into the Upright (5), secure the Wire
Harness with the wire tie.
3b. Tip: Avoid pinching the Wire Harness (60).
Insert the Upright (5) into the Frame (1).
Attach the Upright (5) with four M8 x 16mm
Screws (102) and four M8 Split Washers (103).
Do not tighten the Screws yet.
Then, slide the Top Cover (23) downward. Do
not press the Top Cover into the Frame (1)
yet.
3a
Wire Tie
23
1
3b
Avoid
pinching
the Wire
Harness
(60)
102
103
102
7
5
Wire Tie
60
5
23
1
102
103
102
