PART IDENTIFICATION CHART

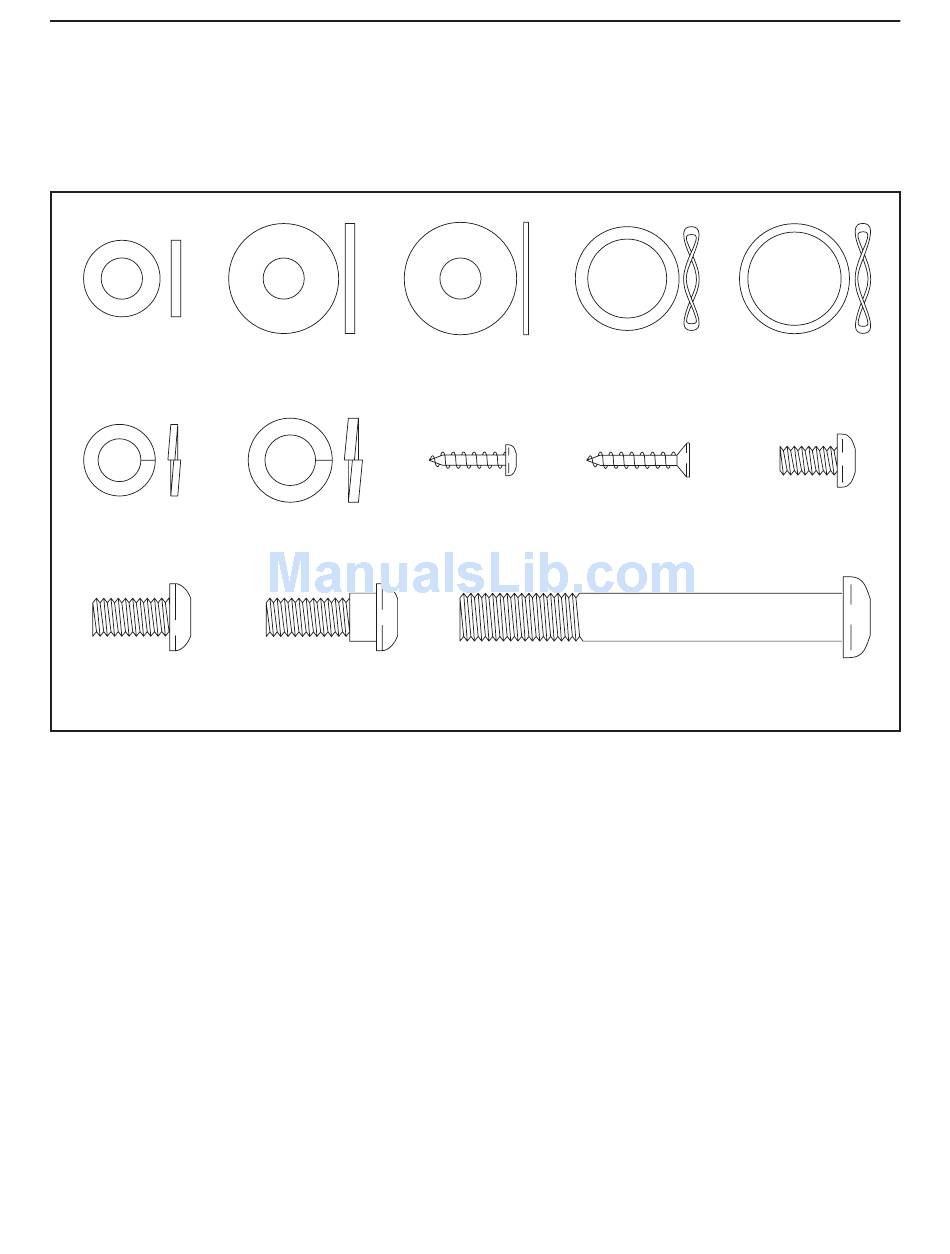

Use the drawings below to identify the small parts needed for assembly. The number in parentheses below each
drawing is the key number of the part, from the PART LIST near the end of this manual. The number following the
key number is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if it
has been preassembled. Extra parts may be included.
M8 x 16mm x M8 x 23mm x 2mm
2mm Washer
(59)––2
M8 Split
Washer
(103)––14
M8 x 16mm
Screw (102)––16
M8 x 23.5mm x
Washer (83)––2
M10 Split
Washer (91)––4
M8 x 23mm Shoulder
Screw (98)––2
Small Wave
1mm Washer
(110)––2
M4 x 16mm M4 x 19mm
Screw (93)––12
Screw (117)––1
5
Medium Wave
Washer Washer
(118)––2 (112)––2
M6 x 12mm
Flat Head Screw (111)––8
M10 x 80mm
Screw (100)––4
