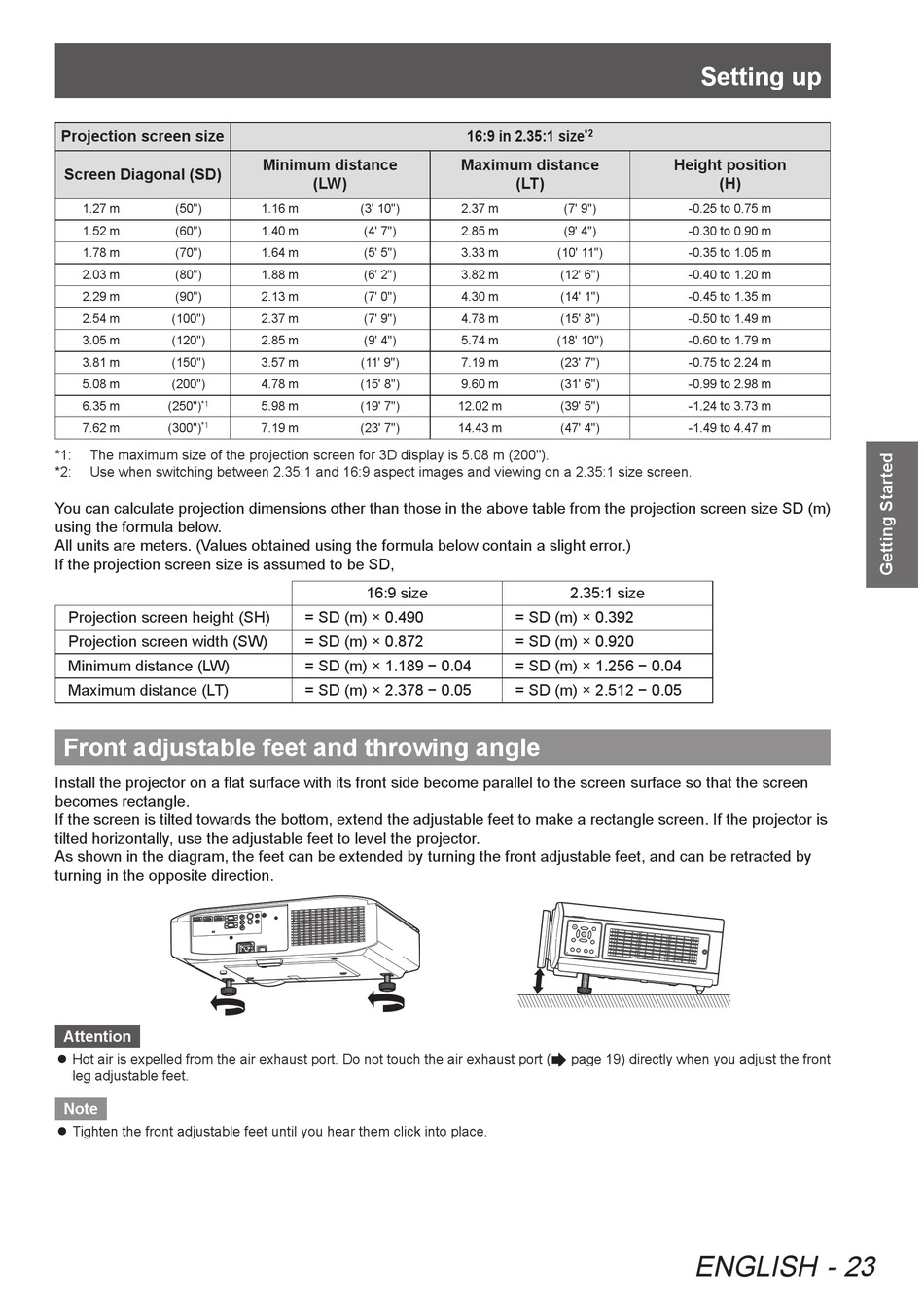

Front Adjustable Feet And Throwing Angle - Panasonic PT-AE8000U Operating Instructions Manual

Projection screen size
Screen Diagonal (SD)
1.27 m (50")
1.52 m (60")
1.78 m (70")
2.03 m (80")
2.29 m (90")
2.54 m (100")
3.05 m (120")
3.81 m (150")
5.08 m (200")
6.35 m (250")
*1
7.62 m (300") *1
*1: The maximum size of the projection screen for 3D display is 5.08 m (200").
*2: Use when switching between 2.35:1 and 16:9 aspect images and viewing on a 2.35:1 size screen.
You can calculate projection dimensions other than those in the above table from the projection screen size SD (m)
using the formula below.
All units are meters. (Values obtained using the formula below contain a slight error.)
If the projection screen size is assumed to be SD,
Projection screen height (SH)
Projection screen width (SW)
Minimum distance (LW)
Maximum distance (LT)

Front adjustable feet and throwing angle

Install the projector on a flat surface with its front side become parallel to the screen surface so that the screen
becomes rectangle.
If the screen is tilted towards the bottom, extend the adjustable feet to make a rectangle screen. If the projector is
tilted horizontally, use the adjustable feet to level the projector.
As shown in the diagram, the feet can be extended by turning the front adjustable feet, and can be retracted by
turning in the opposite direction.
Attention
z Hot air is expelled from the air exhaust port. Do not touch the air exhaust port (
leg adjustable feet.
Note
z Tighten the front adjustable feet until you hear them click into place.
Minimum distance
(LW)
1.16 m (3' 10")
1.40 m (4' 7")
1.64 m (5' 5")
1.88 m (6' 2")
2.13 m (7' 0")
2.37 m (7' 9")
2.85 m (9' 4")
3.57 m (11' 9")
4.78 m (15' 8")
5.98 m (19' 7")
7.19 m (23' 7")
16:9 size
= SD (m) × 0.490
= SD (m) × 0.872
= SD (m) × 1.189 − 0.04
= SD (m) × 2.378 − 0.05
16:9 in 2.35:1 size *2
Maximum distance
(LT)
2.37 m (7' 9")
2.85 m (9' 4")
3.33 m (10' 11")
3.82 m (12' 6")
4.30 m (14' 1")
4.78 m (15' 8")
5.74 m (18' 10")
7.19 m (23' 7")
9.60 m (31' 6")
12.02 m (39' 5")
14.43 m (47' 4")
2.35:1 size
= SD (m) × 0.392
= SD (m) × 0.920
= SD (m) × 1.256 − 0.04
= SD (m) × 2.512 − 0.05

page 19) directly when you adjust the front
Setting up
Height position
(H)
-0.25 to 0.75 m
-0.30 to 0.90 m
-0.35 to 1.05 m
-0.40 to 1.20 m
-0.45 to 1.35 m
-0.50 to 1.49 m
-0.60 to 1.79 m
-0.75 to 2.24 m
-0.99 to 2.98 m
-1.24 to 3.73 m
-1.49 to 4.47 m
ENGLISH - 23
