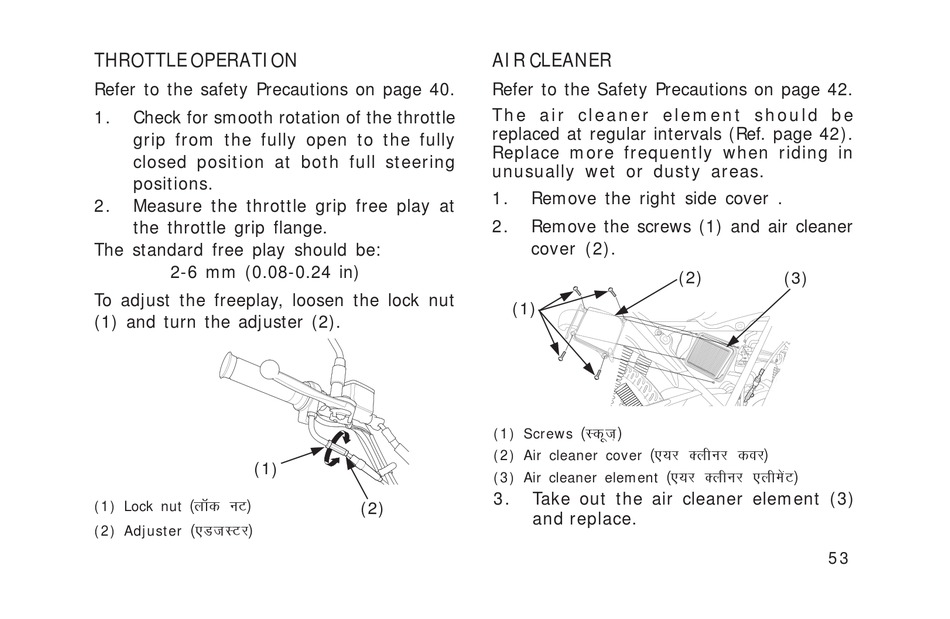

THROTTLE OPERATION
Refer to the safety Precautions on page 40.
1.
Check for smooth rotation of the throttle
grip from the fully open to the fully
closed position at both full steering
positions.
2.
Measure the throttle grip free play at
the throttle grip flange.
The standard free play should be:
2-6 mm (0.08-0.24 in)
To adjust the freeplay, loosen the lock nut
(1) and turn the adjuster (2).
(1) Lock nut
¼ykW d uV½
(2) Adjuster
¼,MtLVj½
AIR CLEANER
Refer to the Safety Precautions on page 42.
The air cleaner element should be
replaced at regular intervals (Ref. page 42).
Replace more frequently when riding in
unusually wet or dusty areas.
1.
Remove the right side cover .
2.
Remove the screws (1) and air cleaner
cover (2).
(1) Screws
¼Ldw t + ½
(2) Air cleaner cover
¼,;j Dyhuj doj½
(3) Air cleaner element
¼,;j Dyhuj ,yhes a V ½
3.
Take out the air cleaner element (3)
and replace.
53
