Chapter 4: Completing Your Custom Report; Highlighting Fields - Avaya Call Management System Custom Reports

Chapter 4:

Highlighting fields

For each individual Avaya Call Management System (CMS) custom report, you can
administer how the screen displays the colors and brightness levels of the text, data, and
background. You can also administer color, brightness, reverse video, and underlining to
emphasize individual fields and text in the report.
Note:
To change the way the screen displays fields and text in your report, do the following steps:
1. On Screen Painter, place the cursor in a position where you want one corner of a block
to be, and select Add highlights .
The cursor returns to its original position, and the following message is displayed on
the status line: Move cursor to define opposite corner of block,
RETURN.
2. Move the cursor to a position where you want the opposite corner of the block to be.
The block should include all field text you want to highlight.
The block you are defining becomes highlighted.
3. Press

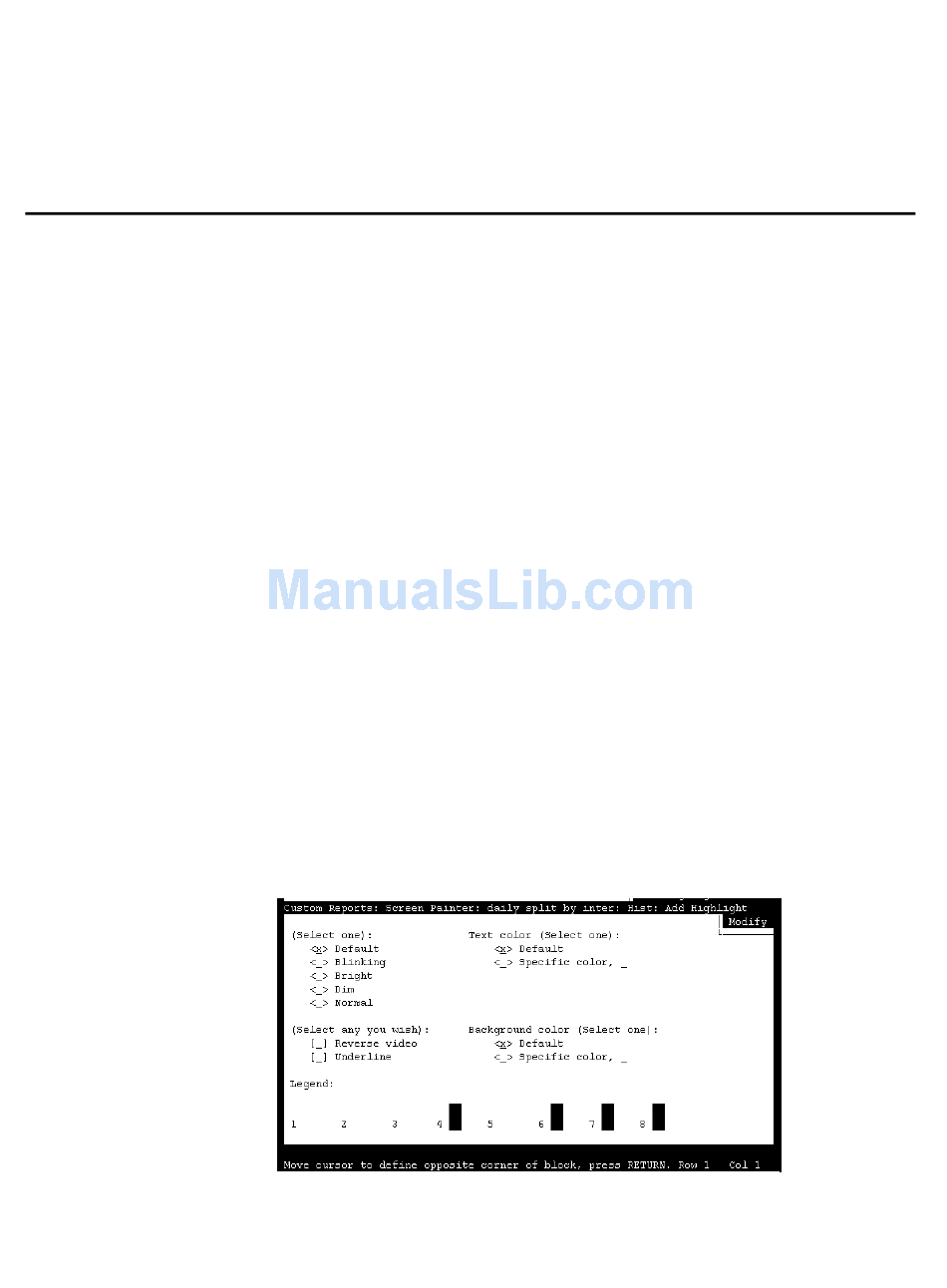

The system displays the Add Highlights window:
The Add Highlights window
Completing your custom report
You cannot change the way bars are displayed with the procedure that
follows. However, you can change the bars' threshold colors via the
screen-labeled key and the Options: Color submenu
Commands
selection.
.
Return
Issue 3.0 May 2002 111
