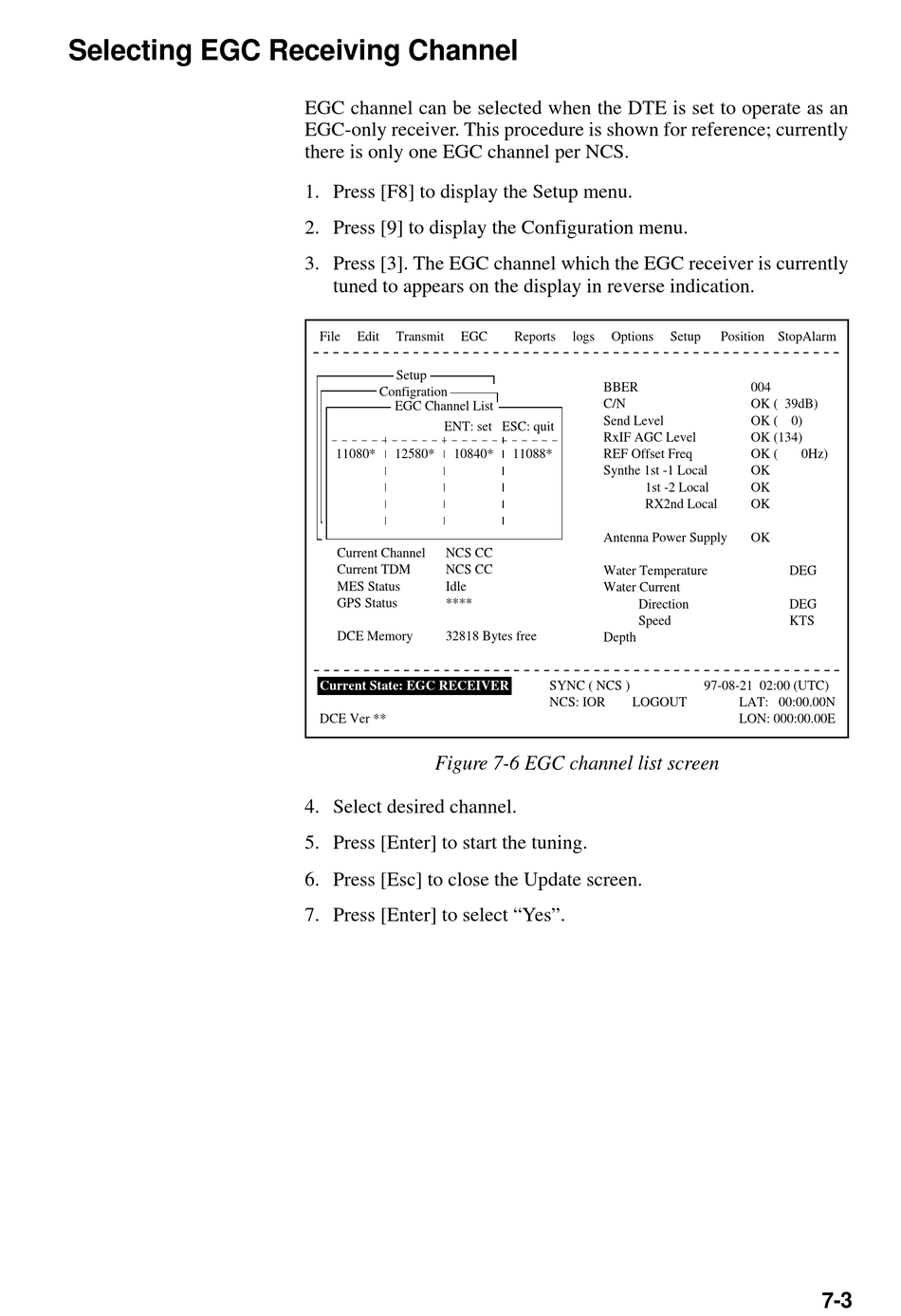

Selecting EGC Receiving Channel

EGC channel can be selected when the DTE is set to operate as an
EGC-only receiver. This procedure is shown for reference; currently
there is only one EGC channel per NCS.
1. Press [F8] to display the Setup menu.
2. Press [9] to display the Configuration menu.
3. Press [3]. The EGC channel which the EGC receiver is currently
tuned to appears on the display in reverse indication.
File Edit Transmit EGC
Setup
Date 97-08-21
Configration
Time 06:12 (UTC)
EGC Channel List
ENT: set ESC: quit
Position LAT
LON
11080* 12580* 10840*
Waypoint LAT
LON
Course
Speed
Current NCS 344 (IOR) LOGIN
Current Channel NCS CC
Current TDM NCS CC
MES Status Idle
GPS Status ****
DCE Memory 32818 Bytes free
Current State: EGC RECEIVER
DCE Ver **
Figure 7-6 EGC channel list screen
4. Select desired channel.
5. Press [Enter] to start the tuning.
6. Press [Esc] to close the Update screen.
7. Press [Enter] to select "Yes".
Reports logs Options
BBER
C/N
Send Level
35:00.00N
RxIF AGC Level
135:00.00E
11088* REF Offset Freq
Synthe 1st -1 Local
1st -2 Local
DEG
RX2nd Local
KTS
Antenna Power Supply
Water Temperature
Water Current
Direction
Speed
Depth
SYNC ( NCS )
NCS: IOR LOGOUT
Setup Position StopAlarm
004
OK ( 39dB)
OK ( 0)
OK (134)
OK ( 0Hz)
OK
OK
OK
OK
DEG
DEG
KTS
97-08-21 02:00 (UTC)
LAT: 00:00.00N
LON: 000:00.00E
7-3
