FELCOM 12 System Configuration

DISTRESS
TYPE IC-302
SEL NO.
COMPASS SAFE DISTANCE
STD M
FURUNO ELECTRIC CO., LTD
Distress Alert Unit
IC-302
DISTRESS
TYPE IC-302
SEL NO.
COMPASS SAFE DISTANCE
STD M
FURUNO ELECTRIC CO., LTD
Distress Alert Unit
IC-302
ALARM RESET
D I S T R E S S / U R G E N T
R E C E I V I N G U N I T
Distress/Urgent
Receiving Unit
IC-303
4
FURUNO
POWER
Terminal Unit

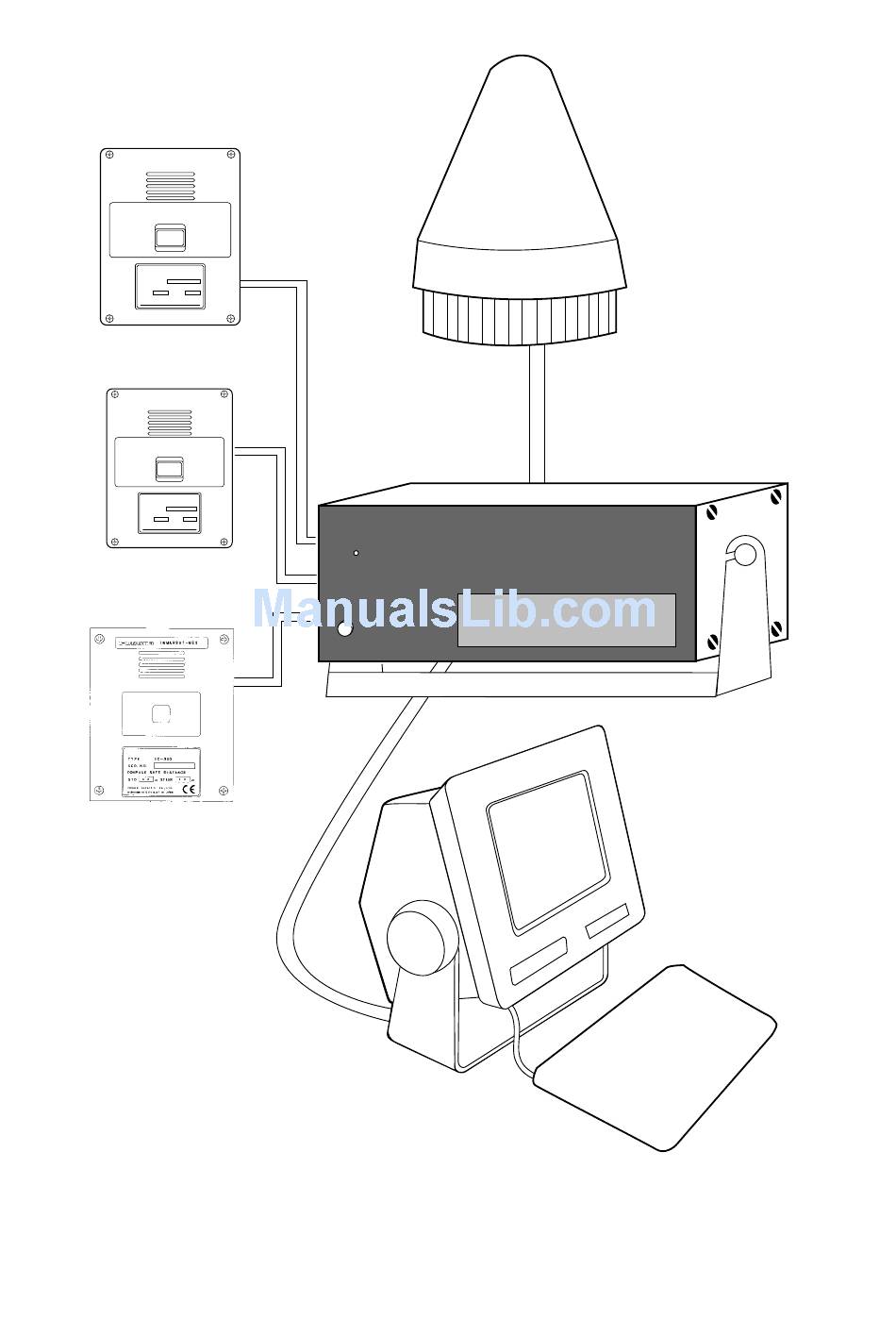

Figure 1 FELCOM 12 system configuration
Antenna Unit
INMARSAT- C MOBILE EARTH STATION
Communication Unit
