Furuno 1834C Operator's Manual

MODEL 1824C/1834C/1934C/
1944C/1954C-BB GD-1920C-BB

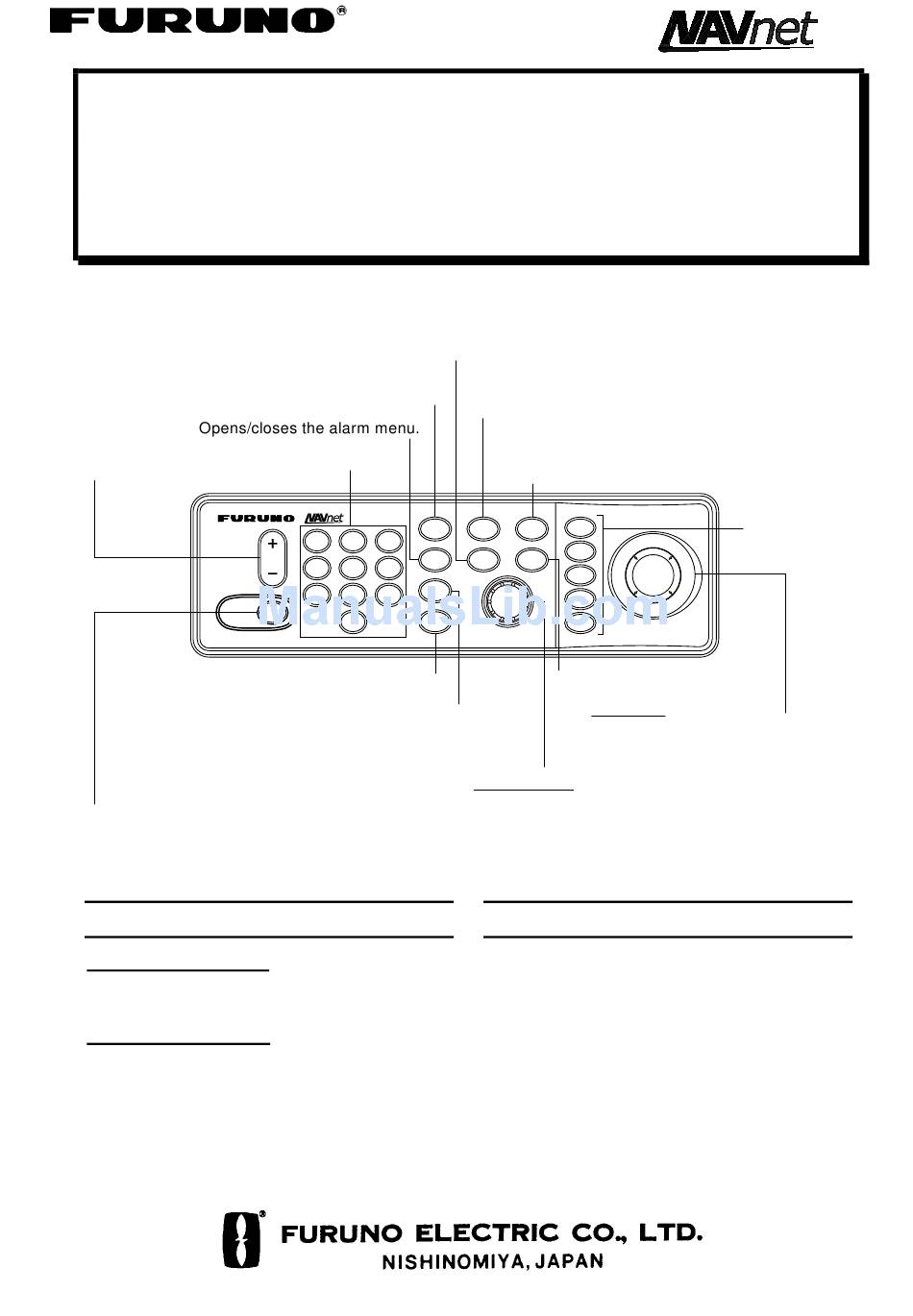

The purpose of this Operator's Guide is to provide basic operating procedures for this
equipment. For more detailed information see the Operator's Manual.
Displays the mode selection window.
Clears data; erases selected mark.
Enter alphanumeric
Selects a range.
data.
Displays soft keys for EBL/VRM.
Radar: Displays the soft keys
for adjustment of gain, A/C SEA,
A/C RAIN.
Sounder: Adjusts gain.
Press three seconds: Turns power off.
Momentary press: Turns the power on, and
shows D: RADAR STBY/TX soft key.
Turning the Power On/Off
Turning on the power
Press the POWER/TX key momentary.
Turning off the power
Press and hold down the POWER/TX key
until the screen goes off (approx. 3 sec.)
Operator's Guide
CLEAR CLEAR
ABC ABC DEF DEF GHI GHI
1 1 2 2 3 3
RANGE RANGE
ALARM ALARM
JKL JKL MNO MNO PQR PQR
4 4 5 5 6 6
GAIN GAIN
STU STU VWX VWX YZ& YZ&
7 7 8 8 9 9
POWER POWER
TX TX
_'# _'# EBL EBL
0 0 VRM VRM
Momentary press:
Registers own ship's position as a waypoint.
Press three seconds:
Marks man overboard position.
Shows or hides the soft
keys, function keys,
nav data.
SAVE SAVE HIDE HIDE
A A
MOB MOB SHOW SHOW
B B
DISP DISP MENU MENU
C C
D D
E E
PUSH TO ENTER PUSH TO ENTER
Opens/closes the main menu.
Trackball
Shifts EBL/VRM and cursor;
selects menu items and options.
ENTER knob
Push: Registers setting.
Rotate: Adjusts gain, VRM, EBL, etc.;
selects menu items and options. May also
be used to enter alphanumeric data.

Selecting a Display

1. Press the DISP key to show the display
selection window.
2. Rotate the ENTER knob to select a basic
display screen, and then push it.
3. Rotate the ENTER knob to select a
combination display.
4. Push the ENTER knob.
VX2
Soft keys
