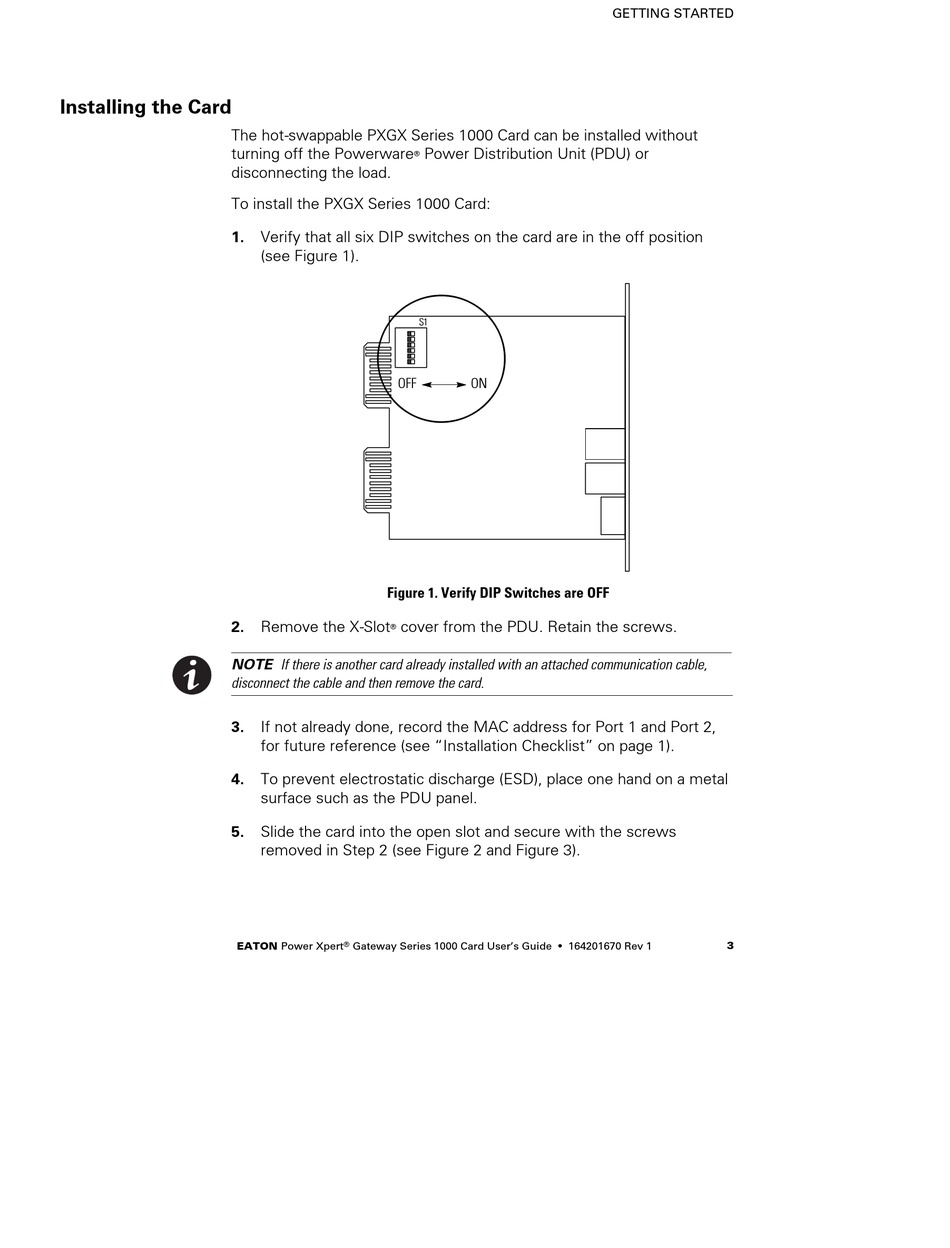

Installing the Card

The hot-swappable PXGX Series 1000 Card can be installed without
turning off the Powerware
disconnecting the load.
To install the PXGX Series 1000 Card:
1.
2.
NOTE If there is another card already installed with an attached communication cable,
disconnect the cable and then remove the card.
3.
4.
5.
EATON Power Xpert
Power Distribution Unit (PDU) or
®
Verify that all six DIP switches on the card are in the off position
(see Figure 1).
OFF
Figure 1. Verify DIP Switches are OFF
Remove the X-Slot cover from the PDU. Retain the screws.
®
If not already done, record the MAC address for Port 1 and Port 2,
for future reference (see "Installation Checklist" on page 1).
To prevent electrostatic discharge (ESD), place one hand on a metal
surface such as the PDU panel.
Slide the card into the open slot and secure with the screws
removed in Step 2 (see Figure 2 and Figure 3).
® Gateway Series 1000 Card User's Guide
GETTING STARTED
ON
S
164201670 Rev 1
3
