Eaton NetCommWireless NTC-140W Series Quick Start Manual

Introduction
This document provides instructions for connecting a NetComm Wire-
less NTC-140W series wireless router to one of the following Eaton
connectivity cards:
• Power Xpert Gateway UPS (PXGX-UPS)
• PXGMS Power Xpert Gateway Minislot UPS (PXGMS)
• Network-MS
Prerequisites
• Eaton UPS with a PXGX-UPS, PXGMS, or Network-MS card
• PuTTy or HyperTerminal software
• USB-to-USB (Type B) cable for PXGX-UPS
• USB-to-USB (MiniTypeB) for PXGMS
• RJ-45 to 9-pin female serial (D shell) for Network-MS
• Serial COM port or USB-to-serial 9-pin male adapter
NTC-140W Series Router Installation Guidelines
Refer to the Quick Start Guide provided with the NetComm Wireless
NTC-140W Series Router for instructions on mounting the router and
connecting power.
Note: The router must be powered by a 120V outlet powered by the
UPS. This ensures that the router is protected during a power outage.
Connecting the Router to a PXGX-UPS or PXGMS Card
Connect the NTC-140W Series router and Eaton network card. Use the
included Ethernet cable or equivalent.
For a PXGX-UPS card:
• Connect the Ethernet cable from the LAN port on the NTC-140W
Series router to the Upstream port on the card (Figure 1)
For a PXGMS card:
• Connect the Ethernet cable from the Ethernet port on the card (Fig-
ure 2) to the LAN part on the NTC-140W Series router
Route the Ethernet cable into the UPS via the appropriate conduit holes.
Once connected, the LEDs on the active Ethernet port, as well as the
green Power LED, should light.

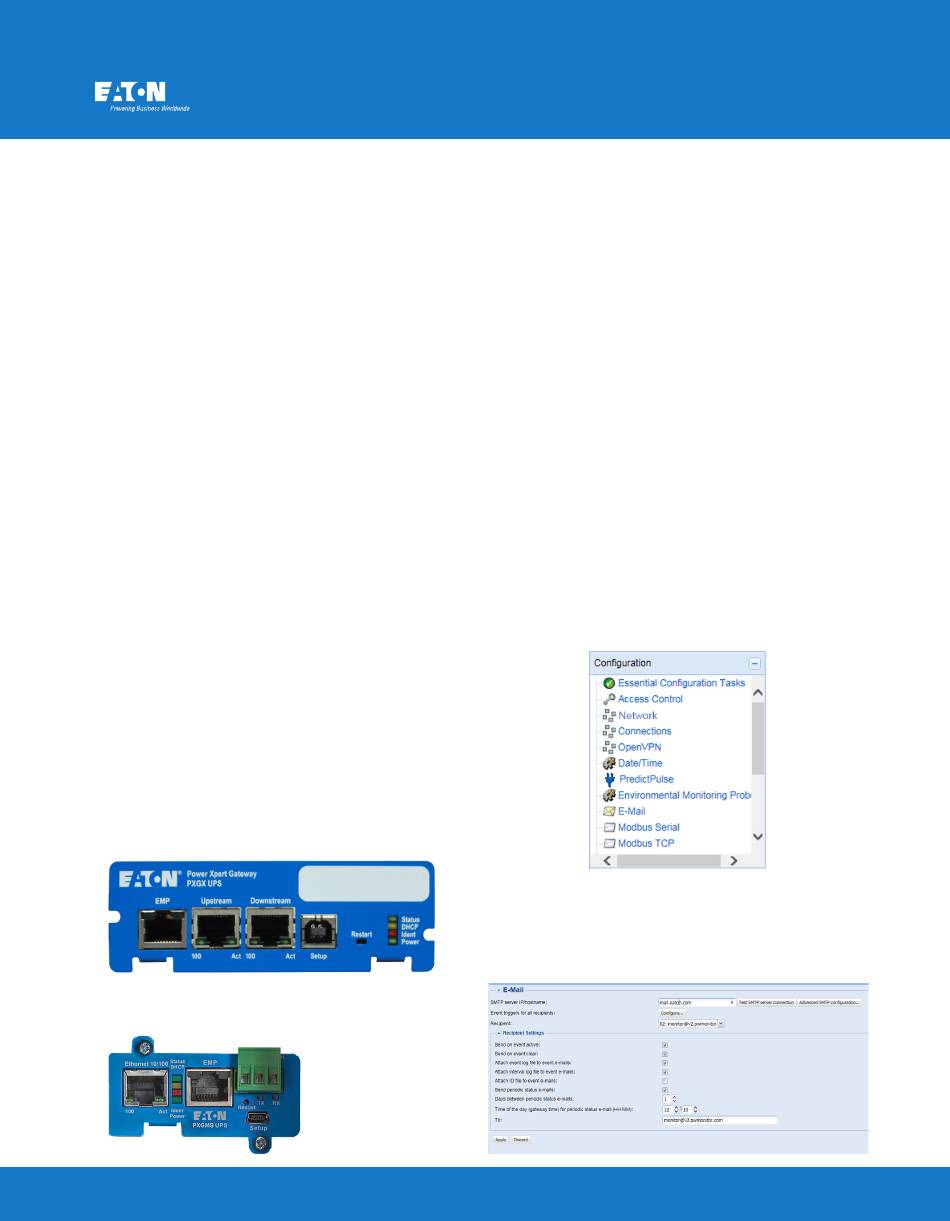

Figure 1. Power Xpert Gateway UPS (PXGX-UPS) Card
Figure 2. Power Xpert Gateway UPS (PXGX-UPS) Card
Connecting a NetCommWireless NTC-140W
Series Router to an Eaton® Network Card
© 2017. Eaton Corporation. All Rights Reserved.
Configuring a PXGX-UPS or PXGMS Card
To troubleshoot or set up the PXGX-UPS or PXGMS card, refer to Sec-
tions 3–5 of the card's Quick Start Guide for instructions on connecting
a Windows-based computer to the card's Setup port using a USB cable.
For a new installation, the PXGX-UPS or PXGMS card will use default
configuration settings. The only steps necessary are to add the SMTP
relay information (mail.eaton.com) and to verify that the e-mail recipient
(monitor@v2.monitor.com) is properly configured as described below.
The router does not require any additional setup steps.
If installing on an existing PXGX-UPS or PXGMS card, reset the card to
factory default settings as follows:
• Locate the onboard DIP switch and set switch 6 to ON
• Reboot the card to restore the factory defaults
• Return switch 6 to OFF and reboot the card
For more information on restoring the factory default settings, refer to
the User's Guide provided with the card.
To configure the PXGX-UPS or PXGMS card, connect to the card's Set-
up port using a USB cable. Once connected, open an internet browser
and navigate to http://192.168.200.101.
Log in using the default credentials:
Username: admin
Password: admin
From the Configuration menu (Figure 3), select E-mail to display the
E-mail tab (Figure 4).
Figure 3. Configuration Menu
Ensure that the SMTP server/IP hostname is mail.eaton.com and that
an e-mail recipient is set up for monitor@v2.pwmonitor.com.
Proceed to the section titled, Run the PredictPulse Wizard.
Figure 4. E-Mail Tab
