Uplink Failure Detection Dashboard

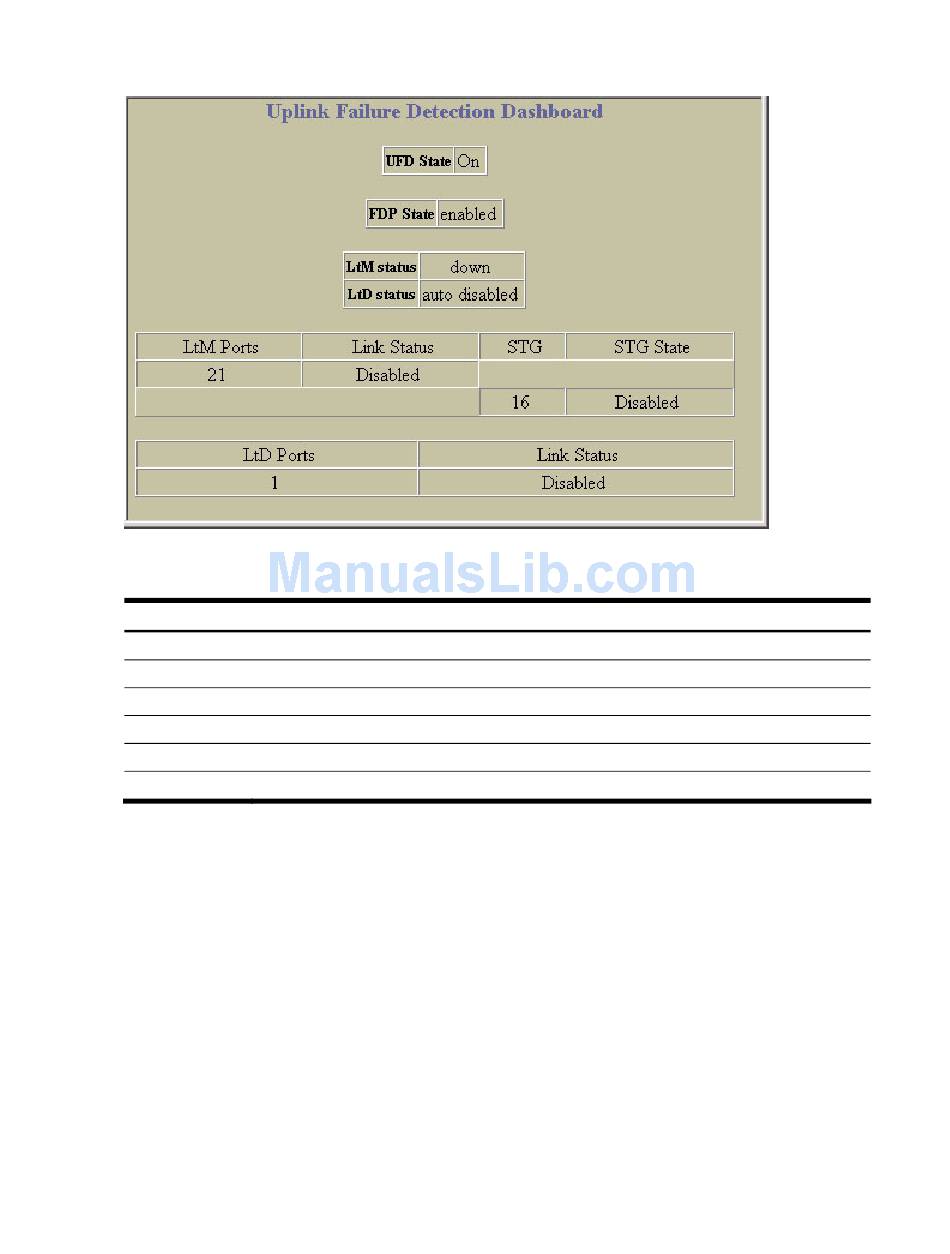

To display the following form, select Uplink Failure Detection (click the underlined text, not the folder).
The following table describes the Uplink Failure Detection Dashboard controls:
Table 43
Uplink Failure Detection Dashboard controls
Control
UFD State
FDP State
LtM status
LtD status
LtM Ports
LtD Ports
Description
Displays the global status of Uplink Failure Detection.
Displays whether the Failure Detection Pair is enabled or disabled.
Displays the current status of the Link to Monitor (LtM).
Displays the current status of the Link to Disable (LtD).
Displays the link status and Spanning Tree information for each port in the LtM.
Displays the link status for each port in the LtD.
