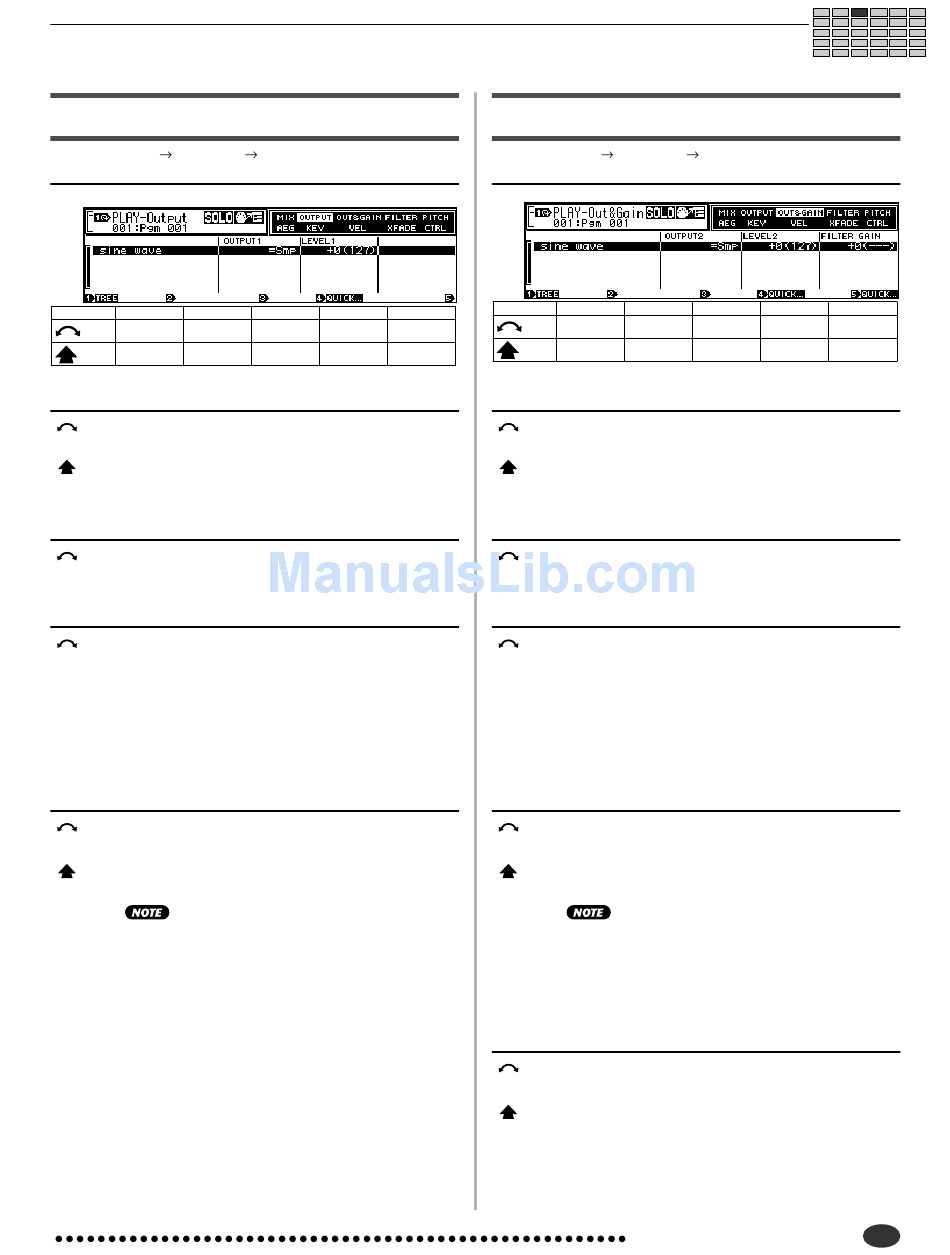

Output

[PLAY] Button [F3] Button
"PLAY-Output"
Knob 1 Knob 2
Turn
Page Sample
action
Press
Tree View —
action
Knob 1
[ Turn] Page
Selects display pages.
[ Press] Tree View
Calls the Tree View display (page 83).
Knob 2
[ Turn] Sample
Selects the sample to be edited.
Knob 3
[ Turn] Output1 (page 129)
[Range] =Smp, off, StereoOut,
AsgnOutL&R — AsgnOut5&6, DIG&OPT,
Ef1 — Ef6 (Ef1 — Ef3 on the A4000) (replace)
When "=Smp" is selected the output settings
programmed for each individual sample are
used.
Knob 4
[ Turn] Output Level1 (page 129)
[Range] -127 — +127 (offset)
[ Press] QUICK...
Calls the quick entry menu (page 83).
• When both the sample and Easy Edit Output1 and
Output 2 parameters are set to the same output des-
tination, the higher of the two output level settings
(Output Level 1 and Output Level2) will take priority.
If reducing the Output Level 1 or Output Level 2 set-
ting has no effect, check the sample and Easy Edit
Output1 and Output2 destination settings.
Knob 1 to select
Knob 3 Knob 4 Knob 5

Output1

Output Level1 —
— QUICK... —
Out & Gain
[PLAY] Button [F3] Button
"PLAY-Out&Gain"
Knob 1 Knob 2
Turn
Page Sample
action
Press
Tree View —
action
Knob 1
[ Turn] Page
Selects display pages.
[ Press] Tree View
Calls the Tree View display (page 83).
Knob 2
[ Turn] Sample
Selects the sample to be edited.
Knob 3
[ Turn] Output2 (page 129)
[Range] =Smp, off, StereoOut,
AsgnOutL&R — AsgnOut5&6, DIG&OPT,
Ef1 — Ef6 (Ef1 — Ef3 on the A4000) (replace)
When "=Smp" is selected the output settings
programmed for each individual sample are
used.
Knob 4
[ Turn] Output Level2 (page 129)
[Range] -127 — +127 (offset)
[ Press] QUICK...
Calls the quick entry menu (page 83).
• When both the sample and Easy Edit Output1 and
Output 2 parameters are set to the same output des-
tination, the higher of the two output level settings
(Output Level 1 and Output Level2) will take priority.
If reducing the Output Level 1 or Output Level 2 set-
ting has no effect, check the sample and Easy Edit
Output1 and Output2 destination settings.
Knob 5
[ Turn] Filter Gain (page 134)
[Range] -63 — +63 (offset)
[ Press] QUICK...
Calls the quick entry menu (page 83).
A5000/A4000 •
PLAY-EASY EDIT
Knob 1 to select
Knob 3 Knob 4 Knob 5
Output2 Output Level2 Filter Gain
— QUICK... QUICK...
97
Chapter 4 PLAY Mode
