| Monitoring the Switch
C 5
HAPTER
Showing IGMP Snooping Information
S IP 4 SSM
HOWING V
I
NFORMATION
Port Members – The ports assigned to the listed VLAN which
◆
propagate a specific multicast service.
W I
EB NTERFACE
To display the port members of each service group, click Monitor, IGMP
Snooping, Group Information.

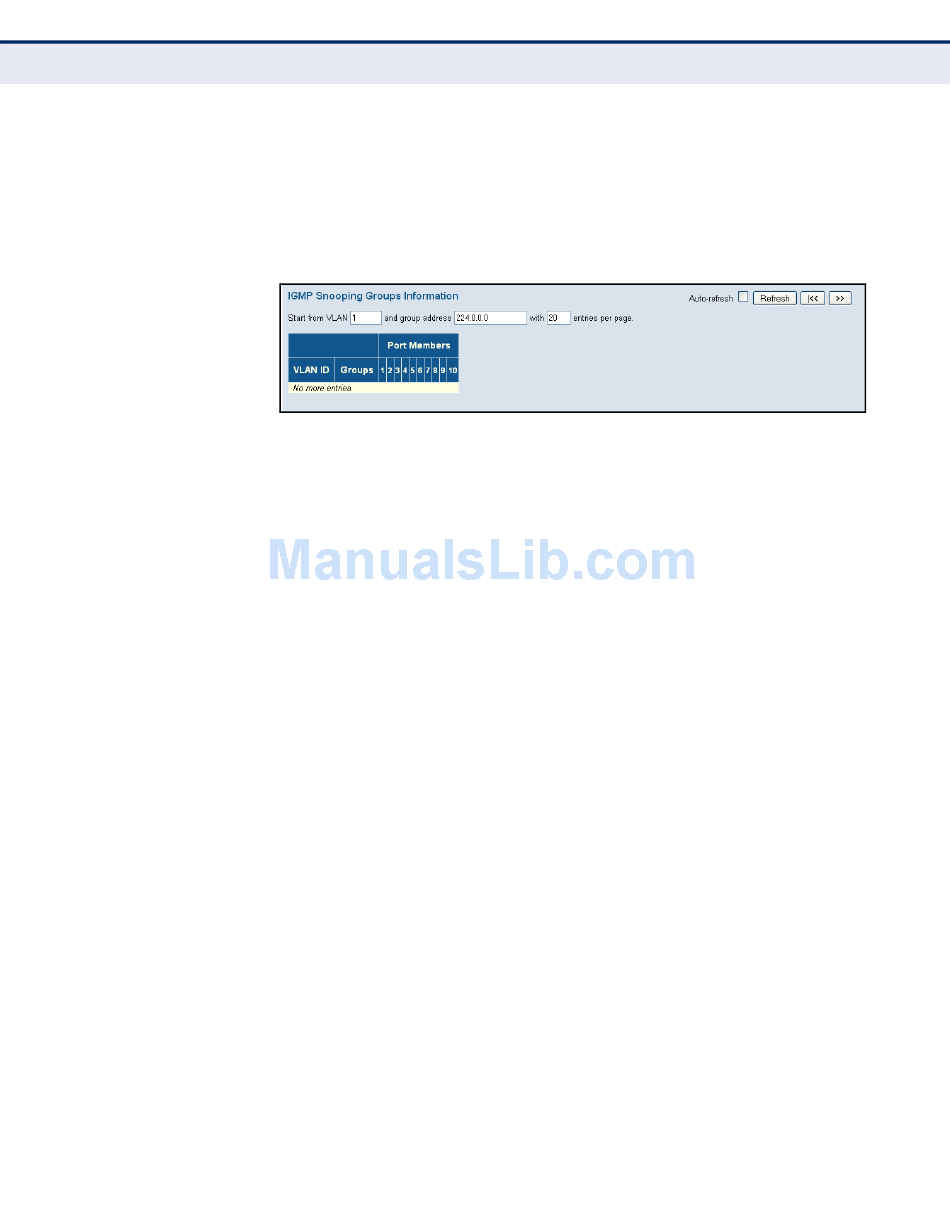

Figure 117: IGMP Snooping Group Information

Use the IGMP SSM Information page to display IGMP Source-Specific
Information including group, filtering mode (include or exclude), source
address, and type (allow or deny).
P
ATH
Monitor, IPMC, IGMP Snooping, IPv4 SSM Information
P
ARAMETERS
These parameters are displayed:
VLAN ID – VLAN Identifier.
◆
Group – The IP address of a multicast group detected on this interface.
◆
◆ Port No – Port identifier.
Mode – The filtering mode maintained per VLAN ID, port number, and
◆
Group Address. It can be either Include or Exclude.
Source Address – IP Address of the source. Currently, the system
◆
limits the total number of IP source addresses for filtering to be 128.
Different source addresses belong to the same group are treated as
single entry.
Type – Indicates the Type. It can be either Allow or Deny.
◆
– 240 –
