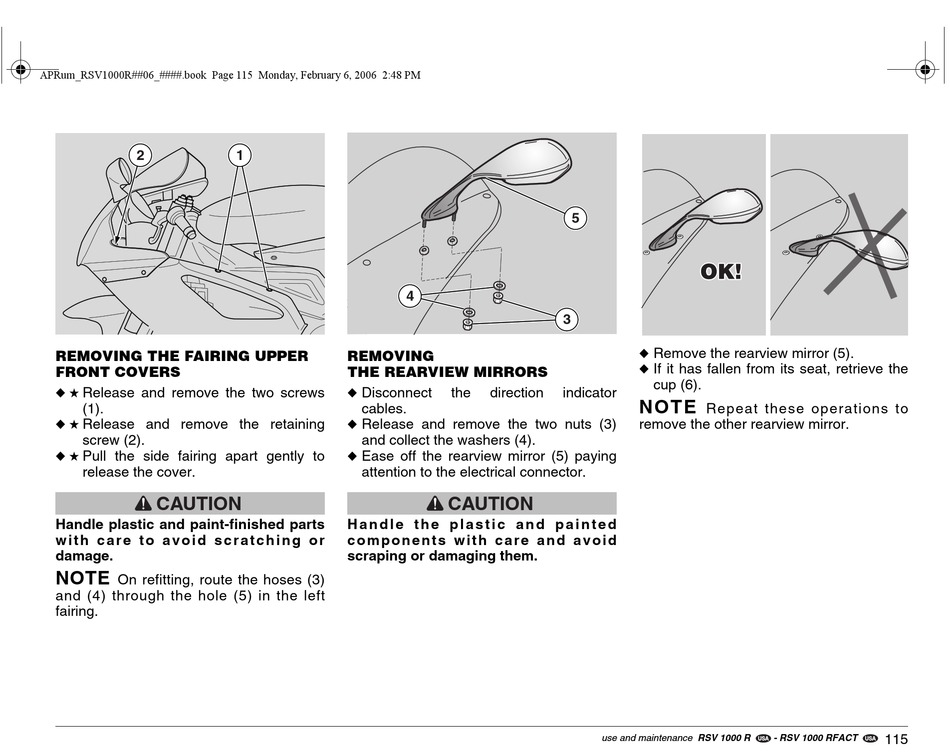

REMOVING THE FAIRING UPPER
FRONT COVERS
Release and remove the two screws
u H
(1).
u H Release and remove the retaining
screw (2).
u H Pull the side fairing apart gently to
release the cover.
CAUTION
Handle plastic and paint-finished parts
w i t h c a r e t o a v o i d s c r a t c h i n g o r
damage.
NOTE
On refitting, route the hoses (3)
and (4) through the hole (5) in the left
fairing.
1
4
REMOVING
THE REARVIEW MIRRORS
Disconnect
u
cables.
u Release and remove the two nuts (3)
and collect the washers (4).
u Ease off the rearview mirror (5) paying
attention to the electrical connector.
H a n d l e t h e p l a s t i c a n d p a i n t e d
c o m p o n e n t s w i t h c a r e a n d a v o i d
scraping or damaging them.
5
3
the direction indicator
CAUTION
use and maintenance RSV 1000 R
u Remove the rearview mirror (5).
u If it has fallen from its seat, retrieve the
cup (6).
NOTE
Repeat these operations to
remove the other rearview mirror.
