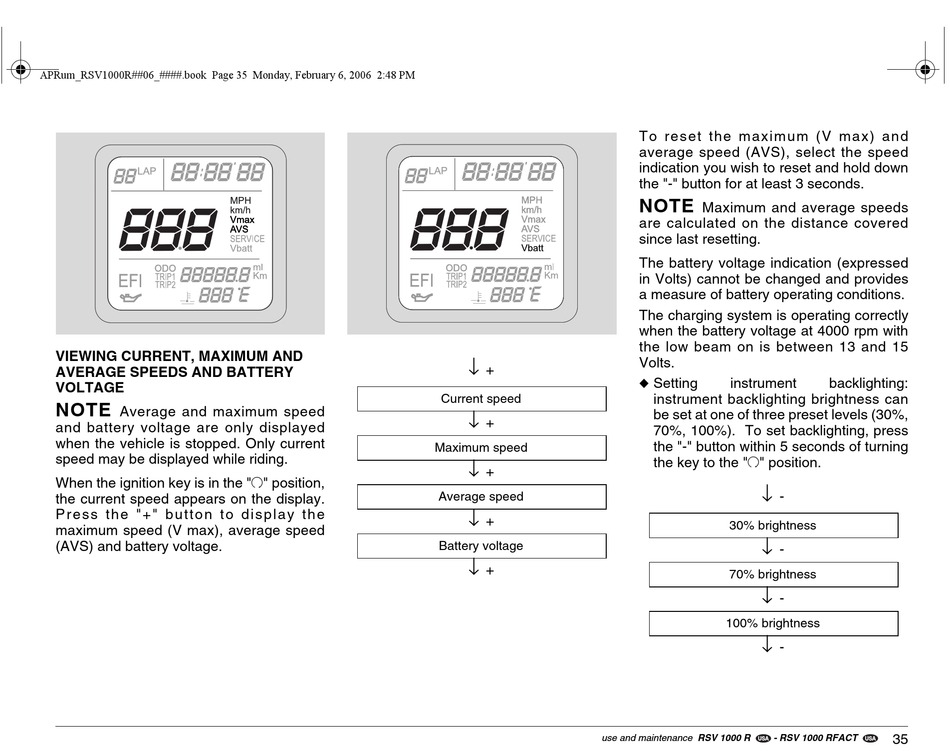

APRILIA RSV 1000 R FACTORY Manual page 35

VIEWING CURRENT, MAXIMUM AND
AVERAGE SPEEDS AND BATTERY
VOLTAGE
NOTE
Average and maximum speed
and battery voltage are only displayed
when the vehicle is stopped. Only current
speed may be displayed while riding.
When the ignition key is in the "" position,
the current speed appears on the display.
P r e s s t h e " + " b u t t o n to di sp la y the
maximum speed (V max), average speed
(AVS) and battery voltage.
↓
+
Current speed
↓
+
Maximum speed
↓
+
Average speed
↓
+
Battery voltage
↓
+
use and maintenance RSV 1000 R
To reset the maximum (V max) and
average speed (AVS), select the speed
indication you wish to reset and hold down
the "-" button for at least 3 seconds.
NOTE
Maximum and average speeds
are calculated on the distance covered
since last resetting.
The battery voltage indication (expressed
in Volts) cannot be changed and provides
a measure of battery operating conditions.
The charging system is operating correctly
when the battery voltage at 4000 rpm with
the low beam on is between 13 and 15
Volts.
u Setting instrument
instrument backlighting brightness can
be set at one of three preset levels (30%,
70%, 100%). To set backlighting, press
the "-" button within 5 seconds of turning
the key to the "" position.
↓
-
30% brightness
↓
-
70% brightness
↓
-
100% brightness
↓
-
- RSV 1000 RFACT
USA
backlighting:
35
USA
