CALIFORNIA EVAPORATIVE
EMISSION SYSTEM
RSV R
FOR STATE OF CALIFORNIA ONLY.

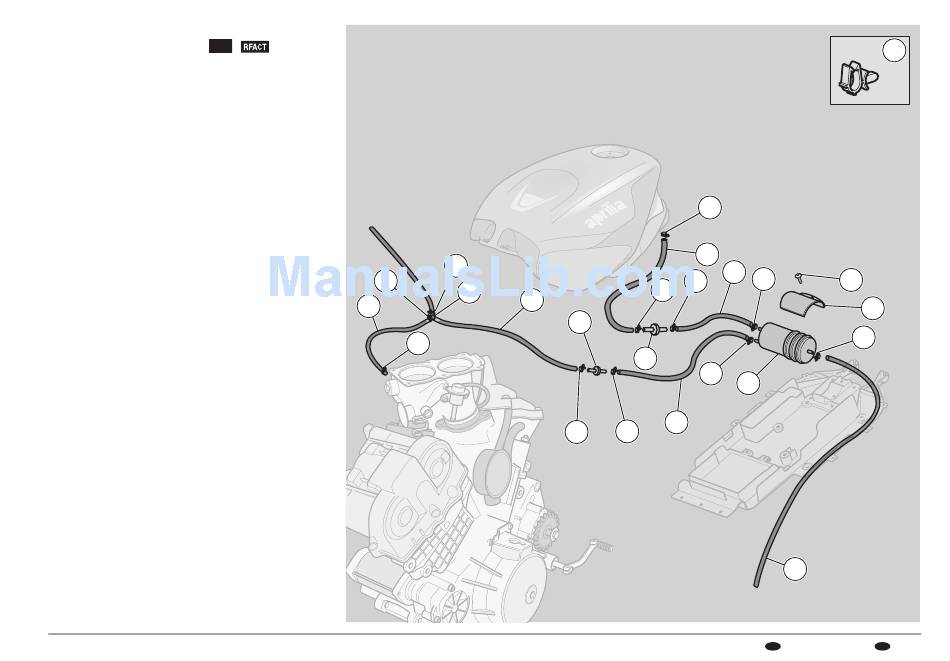

The system consists of:
1) Carbon canister
2) Choke hold
3) 2-way fan valve
4) Canister support plate
5) M6x20 flanged TE screw
6) Hose 4x8
7) Gas hose 5.5x10
8) Tie wrap D.11.3
9) Tie wrap D.10.1
10)Tie wrap D.8
11)Tie wrap D.9.1
12)Plastic cable runner
