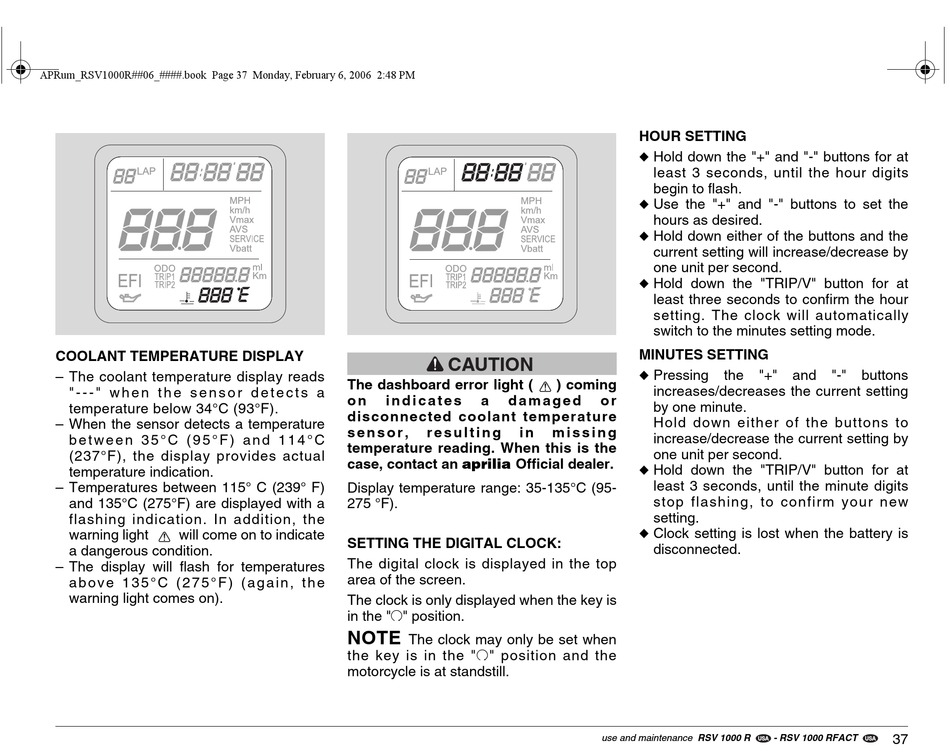

COOLANT TEMPERATURE DISPLAY
– The coolant temperature display reads
" - - - " w h e n t h e s e n s o r d e t e c t s a
temperature below 34°C (93°F).
– When the sensor detects a temperature
b e t w e e n 3 5 ° C ( 9 5 ° F ) a n d 1 1 4 ° C
(237°F), the display provides actual
temperature indication.
– Temperatures between 115° C (239° F)
and 135°C (275°F) are displayed with a
flashing indication. In addition, the
warning light
will come on to indicate
a dangerous condition.
– The display will flash for temperatures
a b o v e 1 3 5 ° C ( 2 7 5 ° F ) ( a g a i n , t h e
warning light comes on).
CAUTION
The dashboard error light (
o n
i n d i c a t e s
a
d a m a g e d
disconnected coolant temperature
s e n s o r ,
r e s u l t i n g
i n
temperature reading. When this is the
case, contact an aprilia Official dealer.
Display temperature range: 35-135°C (95-
275 °F).
SETTING THE DIGITAL CLOCK:
The digital clock is displayed in the top
area of the screen.
The clock is only displayed when the key is
in the "" position.
NOTE
The clock may only be set when
the key is in the "" position and the
motorcycle is at standstill.
HOUR SETTING
u
Hold down the "+" and "-" buttons for at
least 3 seconds, until the hour digits
begin to flash.
u
Use the "+" and "-" buttons to set the
hours as desired.
u
Hold down either of the buttons and the
current setting will increase/decrease by
one unit per second.
u
Hold down the "TRIP/V" button for at
least three seconds to confirm the hour
setting. The clock will automatically
switch to the minutes setting mode.
MINUTES SETTING
u
Pressing
the
) coming
increases/decreases the current setting
o r
by one minute.
Hold down either of the buttons to
m i s s i n g
increase/decrease the current setting by
one unit per second.
u
Hold down the "TRIP/V" button for at
least 3 seconds, until the minute digits
stop flashing, to confirm your new
setting.
u
Clock setting is lost when the battery is
disconnected.
use and maintenance RSV 1000 R
"+"
and
"-"
buttons
37
