Example Programming

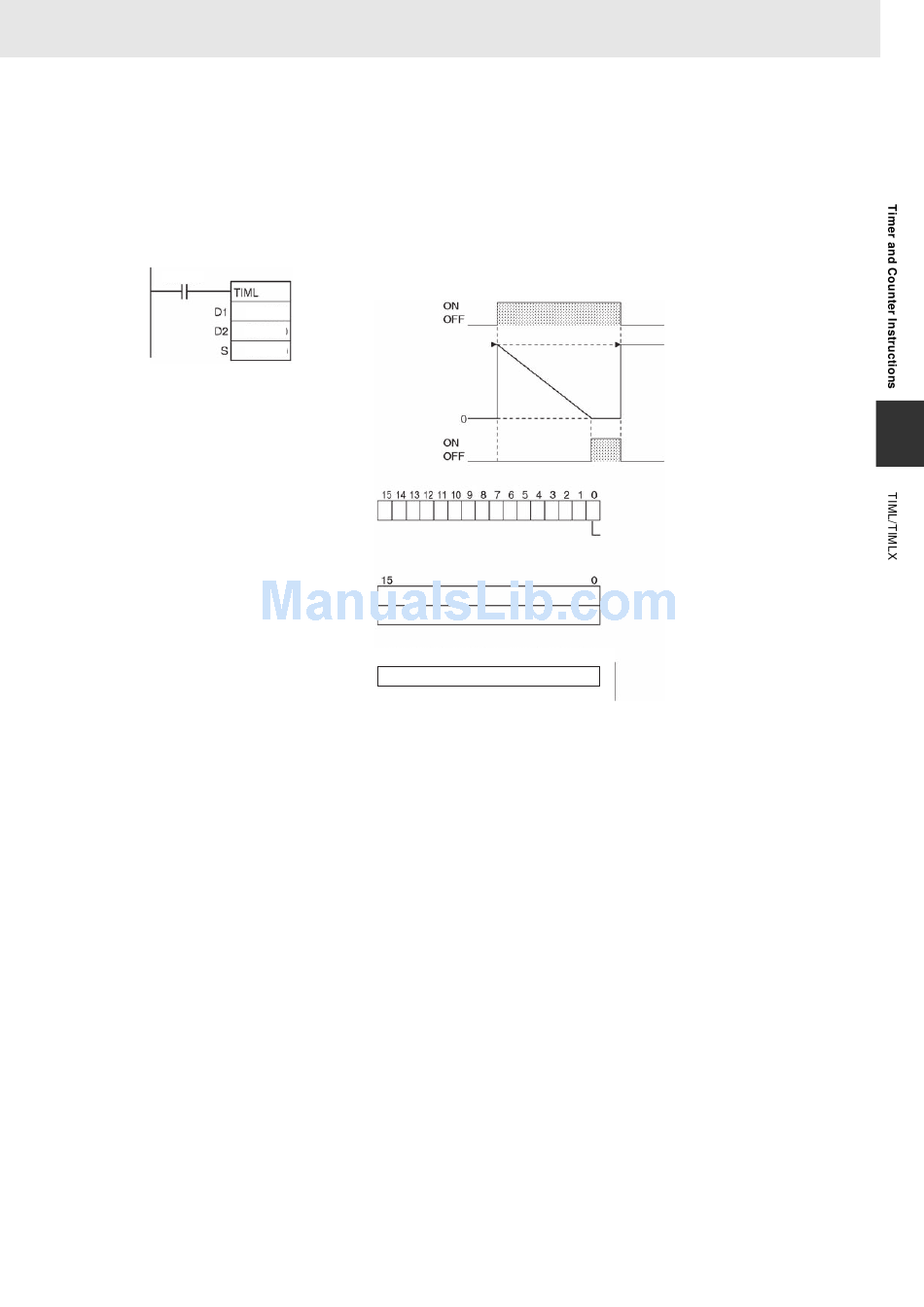

When timer input CIO 0.00 is ON in the following example, the timer PV (in D201 and D200) will be set
to the SV (in D101 and D100) and the PV will begin counting down. The timer Completion Flag (CIO
200.00) will be turned ON when the PV reaches 0.
When CIO 0.00 goes OFF, the timer PV will be reset to the SV and the Completion Flag will be turned
OFF.
0.00
CS/CJ/NSJ Series Instructions Reference Manual (W474)
Timer input
200
D100
Timer SV
S: D200 and up
D200
S+1: Content of D201
1000.00
Timer PV
(D101 and D100)
Timer Completion
Flag
(CIO 200.00)
D1: 200
D2: D100
D101
D201
C
#0010
Timer Completion
Flag
(CIO 0200.00)
Timer's PV (LSB)
Timer's PV (MSB)
D200
Timer SV:
0
0
#0000
(100,000 decimal= 10,000 s)
1 0
