Searching with End PLC Memory Address Enabled to End the Search
If the setting to end the search is enabled in C+3 for a PLC memory address, records will be searched
until the PLC memory address specified in C+4 and C+5. No records past the end PLC memory
address will be searched. If the end PLC memory address is not found, the number of records specified
in C will be searched.

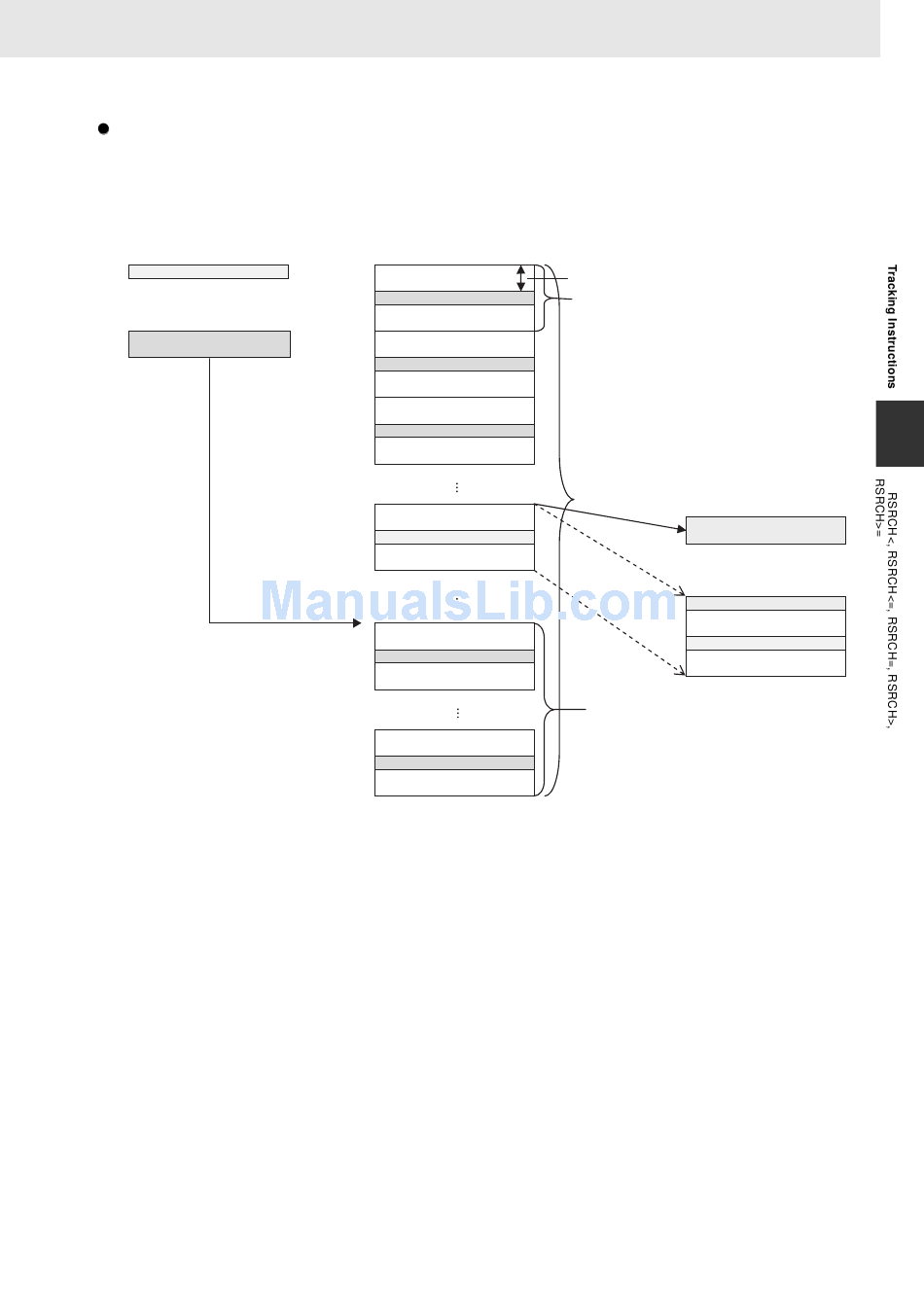

Search data (S2)
Search data
End PLC memory address (C+4 and C+5)
End PLC memory address
CS/CJ/NSJ Series Instructions Reference Manual (W474)
First word of first record (S1)
Record 0
Searched data
Record 1
Searched data
Record 2
Searched data
Record m
Searched data (match)
Record n
Not searched.
Last record
Not searched.
3. Instructions
Search data offset (C+2)
Record length (C+1)
Number of records (C)
PLC memory address for
first word of matching record
Number of matching record (m)
D1
D1+1
Searched data (match)
Invalid records
(i.e., not searched)
3
IR**
621
