3. Instructions

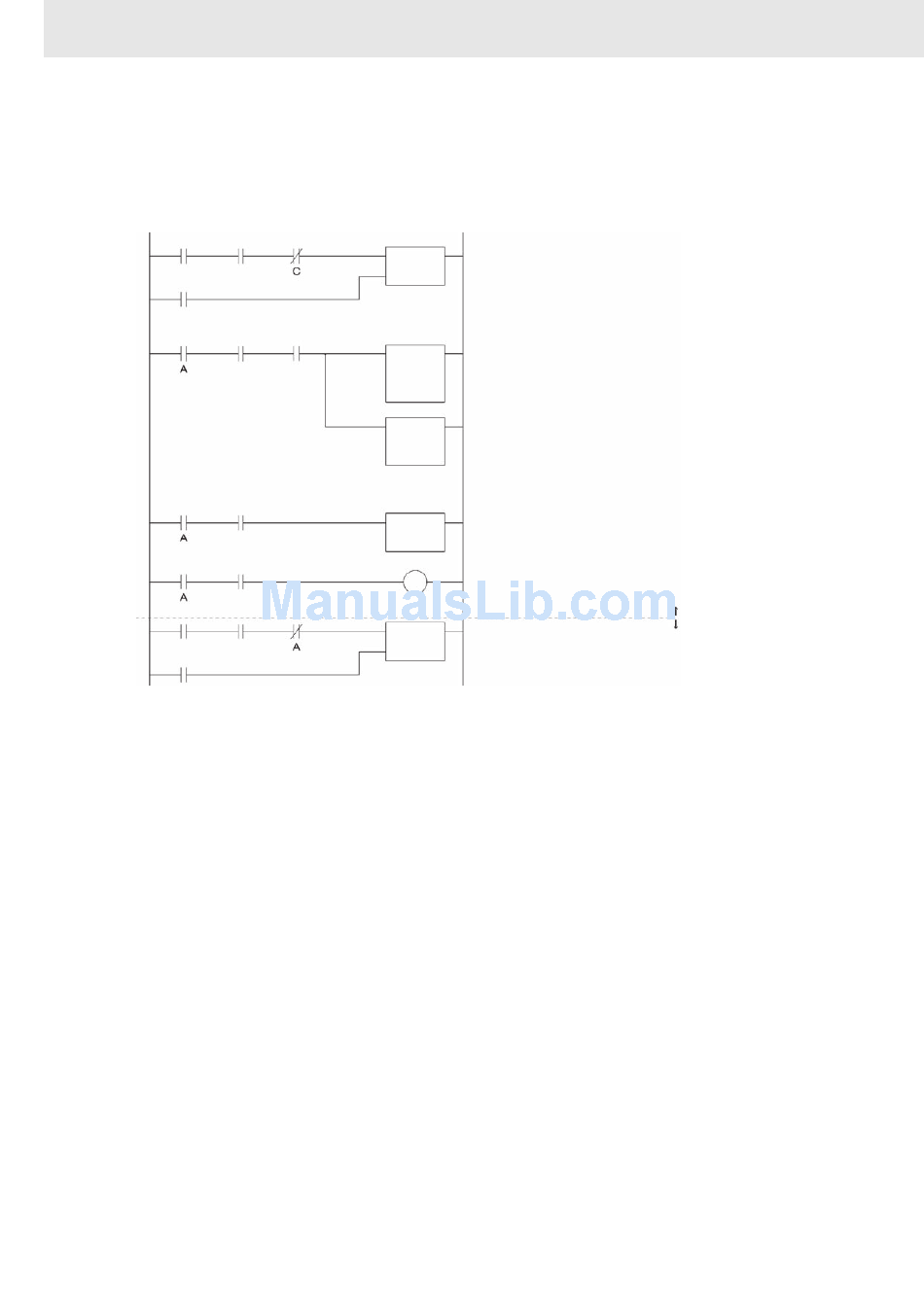

Application Methods
1. Set the communications port in the instruction operand to 0 to 7 hex.
2. Use the Communications Port Enabled Flag (A202.00 to A202.07) to perform exclusive control of
the communications port.
Execution
Communications
condition
Port Enabled Flag
Reset B
Local Node
Active Flag
Communications
Port Enabled Flag
Communications
Port Error Flag
Execution Communications
condition Port Enabled Flag
Same as above.
Reset D
894
KEEP A
Creates
operand or
Destination
control data
Node Active
with @MOV
Flag
or @XFER.
@SEND,
@RECV,
@CMND
DIFU B
KEEP C
Bit A remains ON while the communications
instruction is being executed.
Copies the operand and control data to the
desired data area.
Executes the communications instruction.
Writes the reset input. (Reset B is turned
ON when the communications instruction
is completed.)
For Send Error Flag display (OK if data is
retransmitted.)
Exclusive control to prevent simulta-
neous execution:
Exclusive control prevents another
communications instruction from being
executed until the instruction above is
completed.
