Alpine X409-WRA-JK Installation Manual page 6

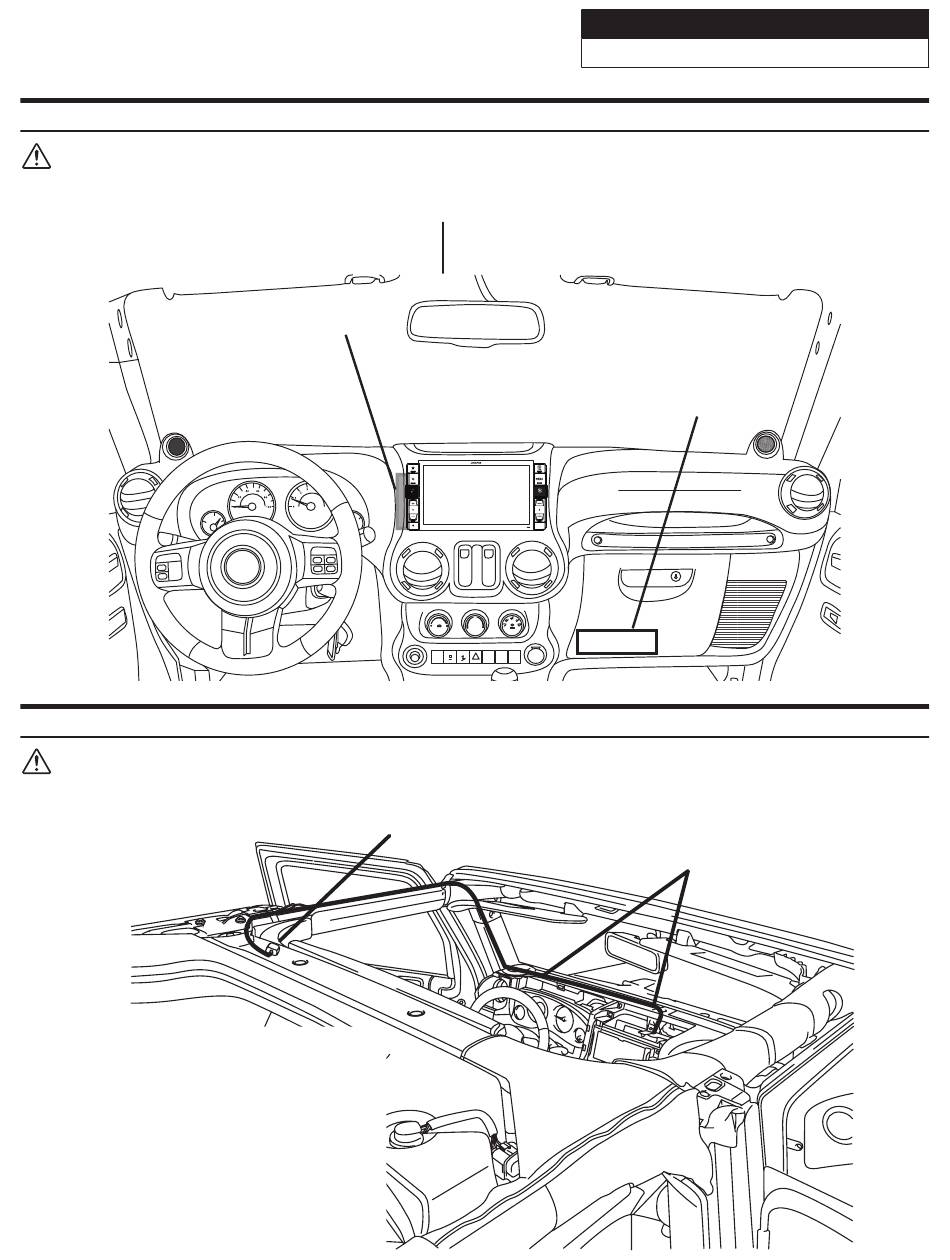

Component Locations
IMPORTANT: Follow the recommended component location shown below. Failure to do so, will result in poor
GPS performance.
iDatalink Maestro Module
GPS Antenna Installation
IMPORTANT: Follow the GPS antenna installation procedure shown below. Failure to do so will result in poor
GPS performance for CarPlay, Android Auto, and Navigation.
Peel the plastic layer
off from the double
side tape of the GPS
antenna and place the
GPS antenna on top of
the driver side roof
frame. T20 Torx to
remove the visor.
Add-on Microphone
Jeep
GPS Antenna
WRANGLER JK
SiriusXM Tuner
(Sold Separately)
Jeep
SINCE 1941
Wire Hook
Jeep Wrangler
