Alpine X409-WRA-JK Installation Manual page 13

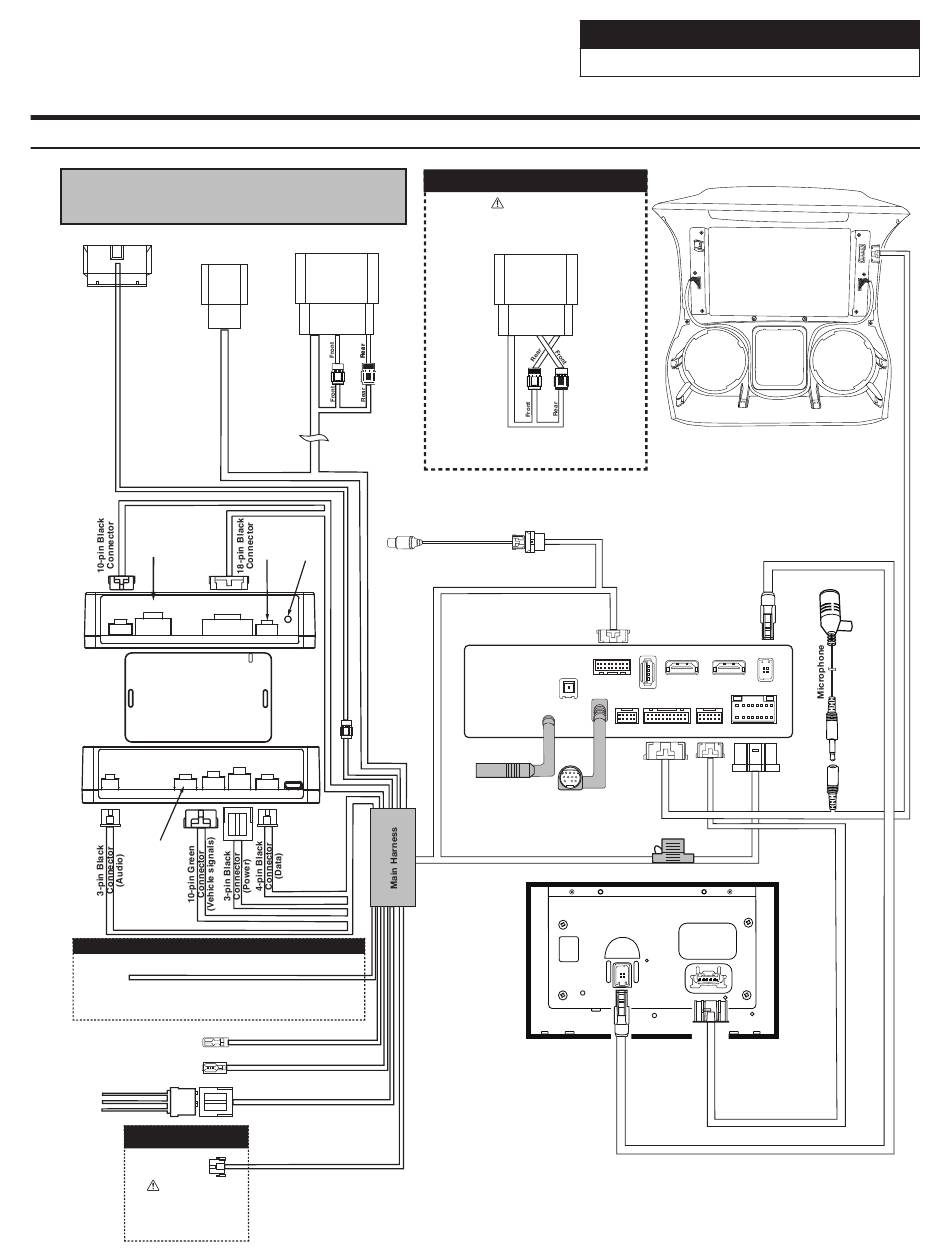

X409-WRA-JK Wiring Diagram
To Vehicle Connectors
OEM Audio
To OBDII Connector
20-pin Gray
Connector
Not
Used
10-Pin Chime
iDatalink MAESTRO Module
3-Pin 4-Pin 10-Pin
Blue
Not
Used
MANUAL TRANSMISSION VEHICLES
White/Gray Manual Transmission Reverse Input
For manual transmission vehicles ONLY. Connect the
White/Gray wire to the White/Gray wire located
on the passenger side kick panel.
Yellow -12V+
Red - Acc 12V+
Black - Ground
Rear View Camera
If using
WARNING!
HCE-TCAM1-WRA
The use of this connection
see page 18
is intended for Alpine
HCE-TCAM1-WRA rear
view camera ONLY.
Power/Speaker
16-pin Green Connector
Red
Not
Reset
Used
Button
18-Pin
3-Pin 4-Pin
*
If using
KAC-001
see page 19
Blue/White Amp Turn-on
Blue Power Antenna
AUX Power
3-pin Black Connector
Rear View Camera
6-pin Black Connector
AMPLIFIED VEHICLES
WARNING!
Failure to follow this procedure will
result in no audio from Navigation and
Bluetooth sources.
For factory amplified vehicles switch the
speaker connectors, front to rear and
rear to front.
Direct Camera Adapter
Direct Camera Input
X409 - Source Unit
GPS
ANTENNA
Connect to SXM adapter
Power Harness
X409 - Display
Jeep Wrangler
WRANGLER JK
USB
DISP. OUT
CAN I/F
HDMI IN HDMI OUT
SXM/DAB
PRE OUT EXT. KEY W.REMOTE POWER
˜ 13/21
