Alpine X409-WRA-JK Installation Manual page 11

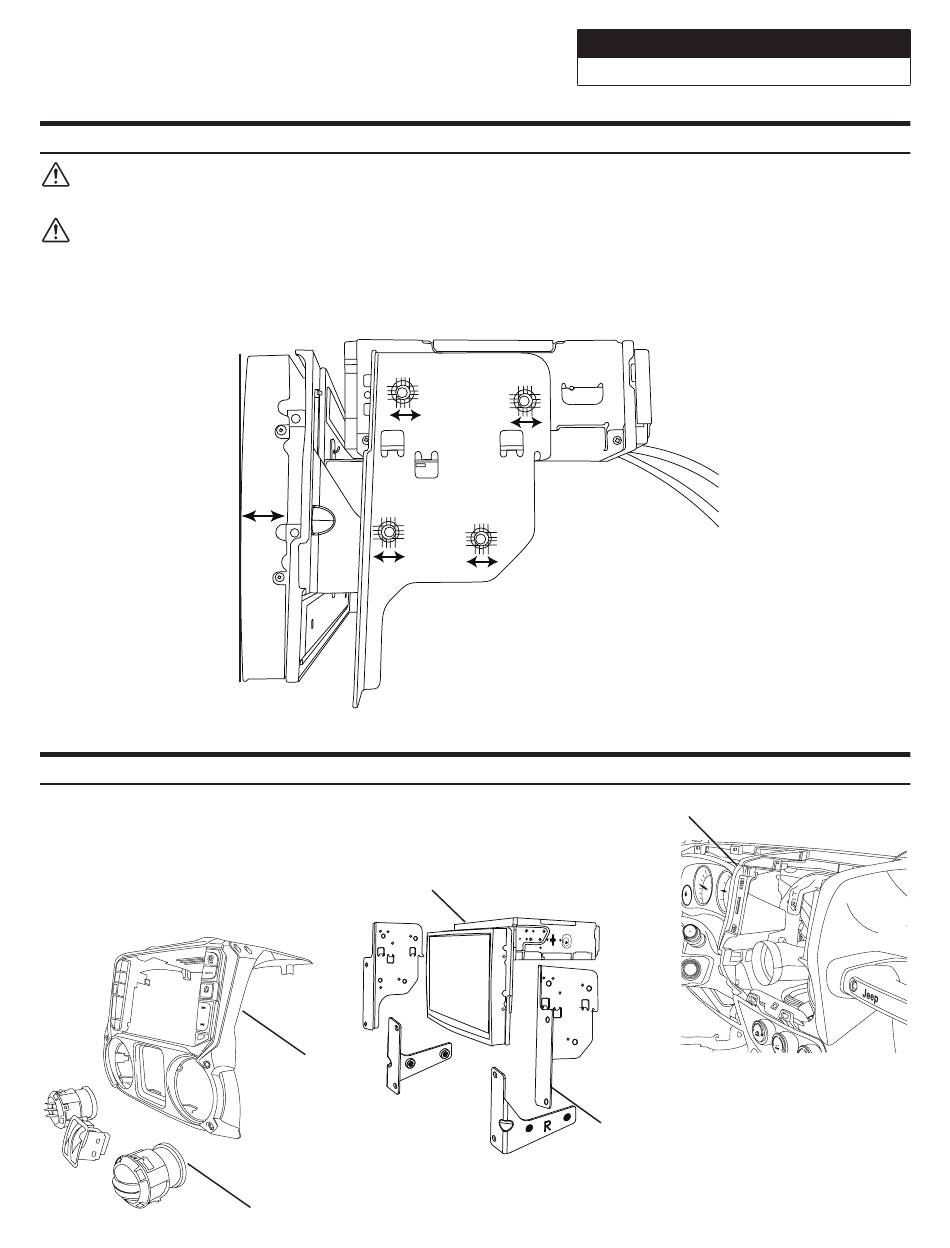

Mounting Brackets
DISCONNECT THE BATTERY BEFORE CONTINUING. FAILURE TO DO SO WILL DISABLE MANY
FEATURES.
IMPORTANT: During the research and development of this product it was discovered that mounting
tolerance may vary from the vehicle's trim level to year built. We have added a 1mm tolerance to the
mounting brackets to compensate for such variance in mounting tolerance. Use the guides below as
reference if there are any required adjustments.
Adjust the rear bracket as needed when the top or bottom is protruding or not flushed.
Adjust the side brackets as needed when either side is protruding or not flushed.
Exploded-View Diagram
Factory Vents and Window
Switch Pod (not included)
X409 Source Unit
X409-WRA
Radio Dash
Bezel
WRANGLER JK
Dash Board
Side Mounting
Brackets
Jeep Wrangler
˜ 11/21
