Alpine X409-WRA-JK Installation Manual page 15

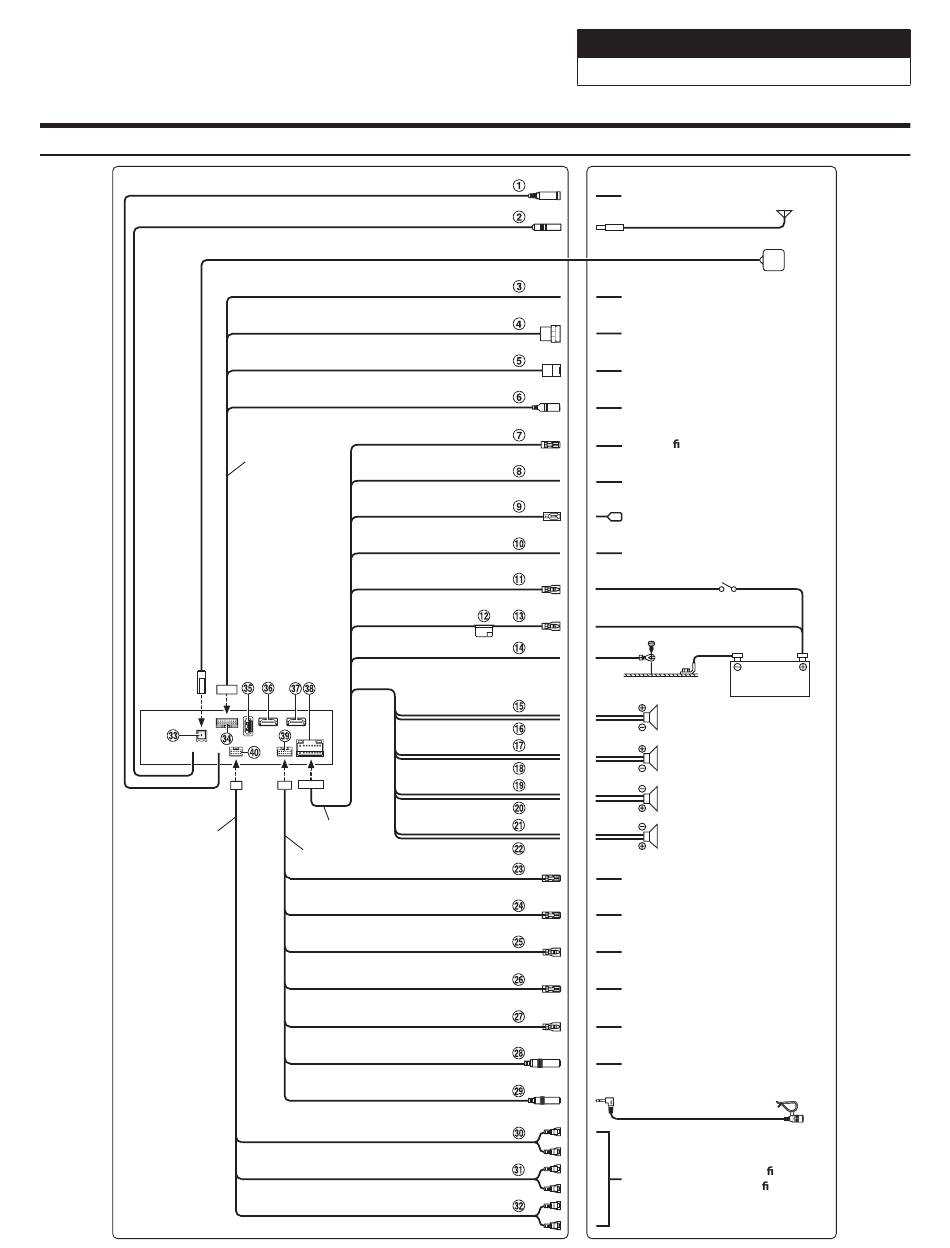

X409-WRA-JK Wiring Diagram
PRE OUT cable
SPEED SENSOR
(Green/White)
CAMERA
IDATALINK I/F
AUX INPUT
REMO
(Blue/White)
Interface cable
REVERSE
(Orange/White)
P. ANT
(Blue)
PARKING BRAKE
(Yellow/Blue)
ACC
(Red)
BATT
(Yellow)
GND
(Black)
Power cable
W.REMOTE cable
DVD REMOTE
(Brown)
MON REMOTE
(Brown)
REMOTE IN
(Brown/White)
REMOTE OUT
(Brown)
DVD STATUS IN
(Red/White)
STEERING REMOTE
MIC IN
SUBW
FRONT OUT
REAR OUT
WRANGLER JK
(Green)
(Green/Black)
(White)
(White/Black)
(Gray/Black)
(Gray)
(Violet/Black)
(Violet)
Jeep Wrangler
To SiriusXM Tuner
Vehicle Antenna
GPS Antenna (Included)
To the vehicle speed pulse line
To Front, Rear or Side camera
To iDataLink module
To AUX output device or iDataLink
module
To ampli er or equalizer
To plus side of the back lamp signal
lead of the car
To power antenna
To the parking brake signal lead
Ignition key
Battery
Rear Left
Front Left
Speakers
Front Right
Rear Right
To remote control input lead of
DVE-5300
To remote control input lead of Rear
Monitor
To remote control output lead
To remote control input lead
To remote control output lead of
DVE-5300
To steering remote control interface
box
Microphone (Included)
To input terminal of ampli er when
adding an external ampli er
˜ 15/21
