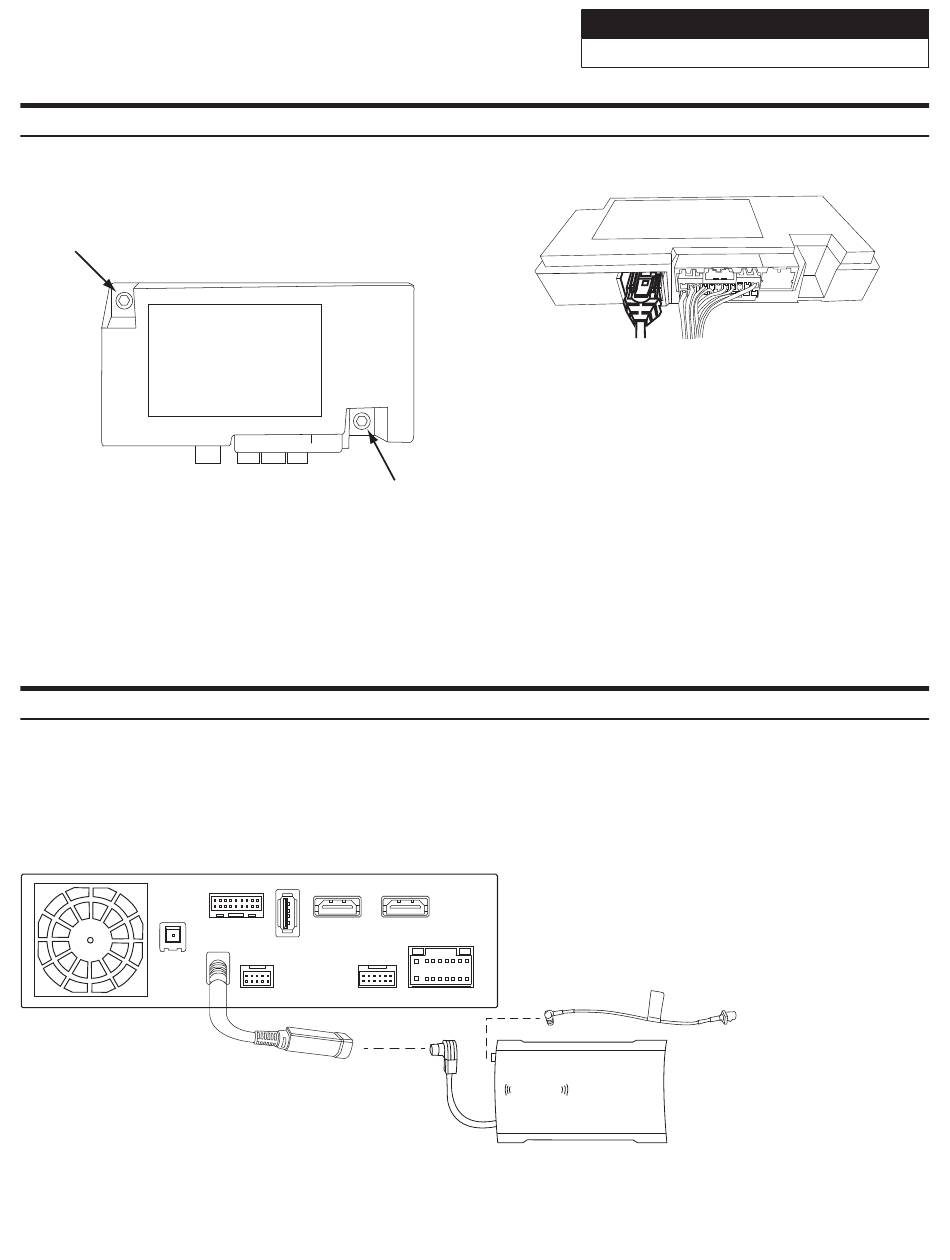

Removing the Uconnect® (only for vehicles with factory Uconnect®)
1
Remove the factory climate control panel. It is
clipped on and can be removed with a panel
removing tool. Extract the (2) 7mm bolts from
Uconnect® module.
3
Secure the Uconnect® module to the original
location using the 7mm bolts.
Connecting A SiriusXM Module (Sold Separately)
GPS
SXM/DAB
USB
CAN I/F
HDMI IN HDMI OUT
PRE OUT W. REMOTE
WRANGLER JK
2
Disconnect the 24pin OEM connector.
4.
NOTE: If Uconnect® module is not disconnected
the Uconnect® system will stay paired with
previously paired phones. The user's phone may
connect to both Bluetooth devices simultaneously
resulting in unpredictable and potentially distracting
behavior. The feature is not retained by the X409
and the OEM USB should not be used.
There is no way to integrate the factory SiriusXM
tuner. Once the radio is removed, the factory
SiriusXM is removed. As the title states, SiriusXM
requires a tuner sold separately. This diagram
shows how to integrate the antenna connection.
For vehicles with factory SiriusXM connect
the adapter to the factory SiriusXM antenna in
the radio cavity. The factory SiriusXM antenna
is located on the passenger side B-pillar.
For vehicles without factory SiriusXM use
the antenna that is included with the SXV300
SiriusXM Tuner.
