Alpine X409-WRA-JK Installation Manual page 17

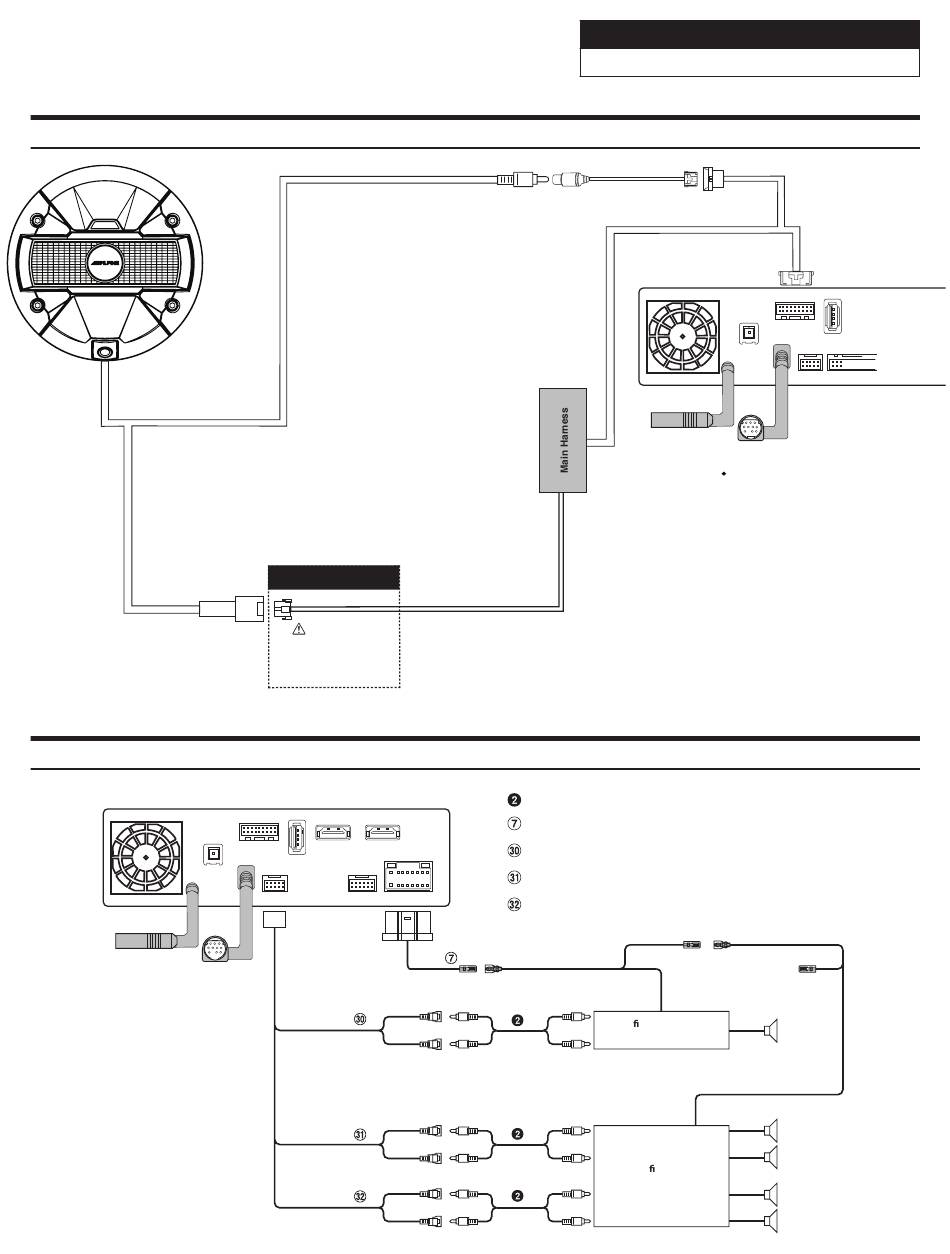

Connection Of HCE-TCAM1-WRA
To HCE-TCAM1-WRA
This connection goes to
the camera connector on
the main harness. This
handles the power, ground,
reverse light, and illumination
connections.
Connection Of An External Amplifier
X409-WRA-JK Source Unit
GPS
ANTENNA
To HCE-TCAM1-WRA
This connection goes to
the direct video input of
the head unit through the
adapter. If you do not make
this connection there will be
no video to your X409-WRA-JK
Rear View Camera
6-pin Black Connector
WARNING!
The use of this connection
is intended for Alpine
HCE-TCAM1-WRA rear
view camera ONLY.
USB
CAN I/F
HDMI IN HDMI OUT
SXM/DAB
PRE OUT W.REMOTE POWER
(Blue/White)
(Red)
SUBW
(White)
(Red)
FRONT OUT
(White)
(Red)
REAR OUT
(White)
WRANGLER JK
Direct Camera Adapter
Rear View Camera
RCA Extension Cable (sold separately)
Remote Turn-On Lead (Blue/White)
Subwoofer RCA Connectors
Front Output RCA Connectors
Rear Output RCA Connectors
REMOTE ON
REMOTE (Blue/White)
To subwoofer input terminal
To front input terminal
To rear input terminal
Jeep Wrangler
Direct Camera Input
X409 JK Source Unit
CAN I/F
GPS
SXM/DAB
ANTENNA
REMOTE ON
(Blue/White)
Ampli er for subwoofer
Subwoofer
(sold separately)
Front speaker
Ampli er 4 ch
(sold separately)
Rear speaker
˜ 17/21
USB
PRE OUT EXT. KEY
