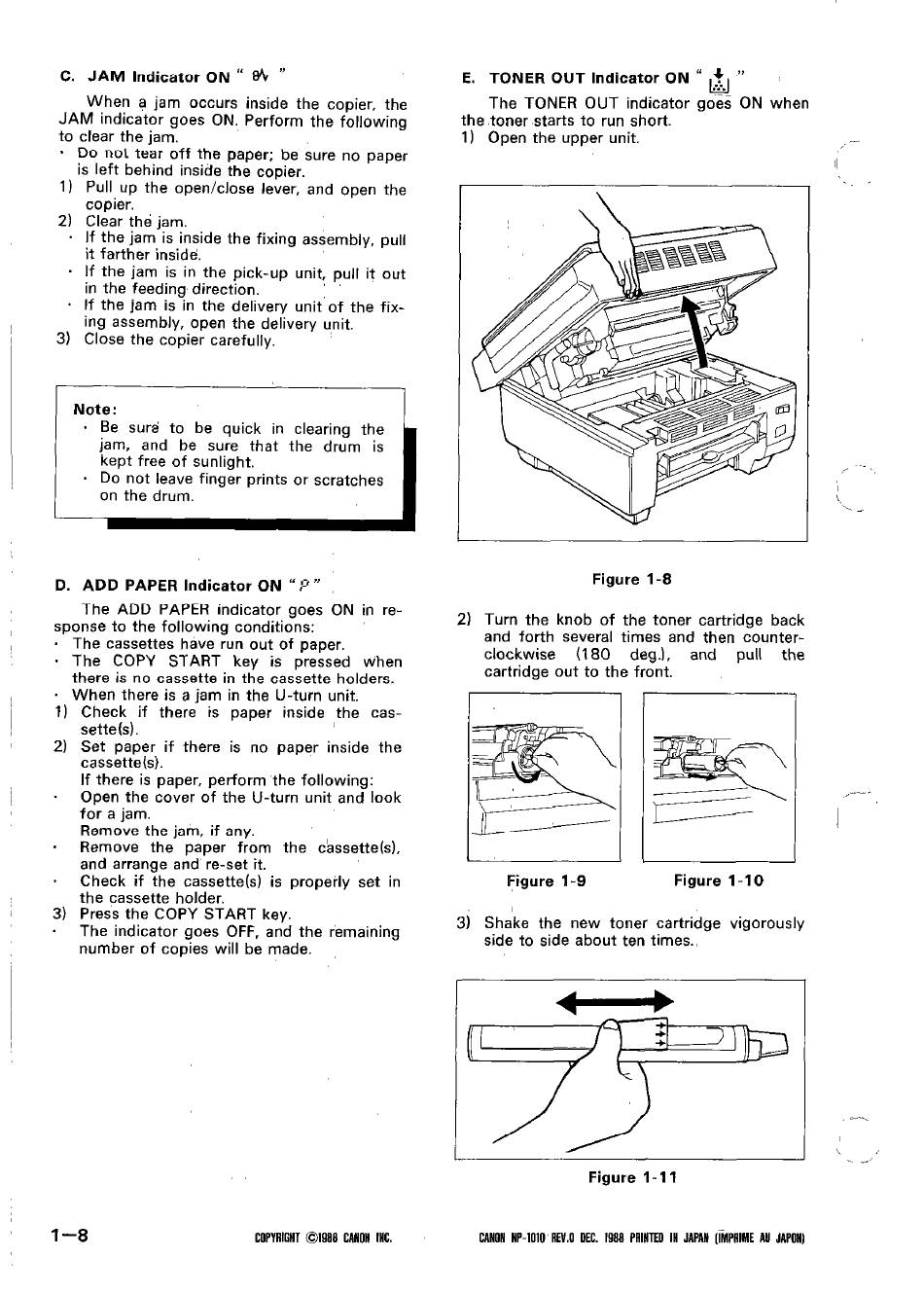

C. JAM
Indicator
ON " fi
"
When
a jam occurs inside the copier, the
JAM indicator goes ON. Perform the following
to clear the jam,
*
Do not tear off the paper; be sure no paper
is left behind inside the copier.
Pull up the open/close
lever, and open the
copier.
Clear the jam.
If the jam is inside the fixing assembly. pull
it farther inside,
If the jam is in the pick-up
unit, pull it out
in the feedina direction.
If the jam is-in the delivery unit of the fix-
ing assembly, open the delivery unit.
Close the copier carefully.
Note:
.
Be sure to be quick
in clearing
the
jam,
and
be sure that
the
drum
is
kept free of sunlight.
.
Do not leave finger prints or scratches
on the drum.
D. ADD PAPER Indicator
ON "P "
The ADD PAPER indicator goes ON in re-
sponse to the following conditions:
.
The cassettes
have run out of paper.
.
The
COPY
START
key
is pressed
when
there is no cassette in the cassette holders,
.
When there is a jam in the U-turn unit.
Check
if there
is paper
inside the
cas-
sette(s).
Set paper if there
is no paper inside the
cassette(s).
If there is paper, perform the following:
Open the cover of the U-turn unit and look
for a jam.
Remove the jam, if any.
Remove
the
paper
from
the
cassette(s),
and arrange and re-set it.
Check
if the cassette(s)
is properly set in
the cassette holder.
Press the COPY START
key.
The indicator goes OFF, and the remaining
number of copies will be made.
l-8
COPvAlGHT
miss
CANON INC.
E.
TONER
OUT Indicator
ON " ,$
"
The TONER OUT indicator goes ON when
the toner starts to run short.
I)
Open the upper unit.
Figure l-8
2)
Turn the knob of the toner cartridge
back
and forth several times and then counter-
clockwise
(180
deg.),
and
pull
the
cartridge out to the front.
I(
Figure 1-g
Figure I-10
3)
Shake
the new toner cartridge
vigorously
side to side about ten times.,
Figure l-l
1
CANON HP-1010
AN.0
DEC. 1988 PAINTED
IN JAPAN lkilME
AU JAPON)
