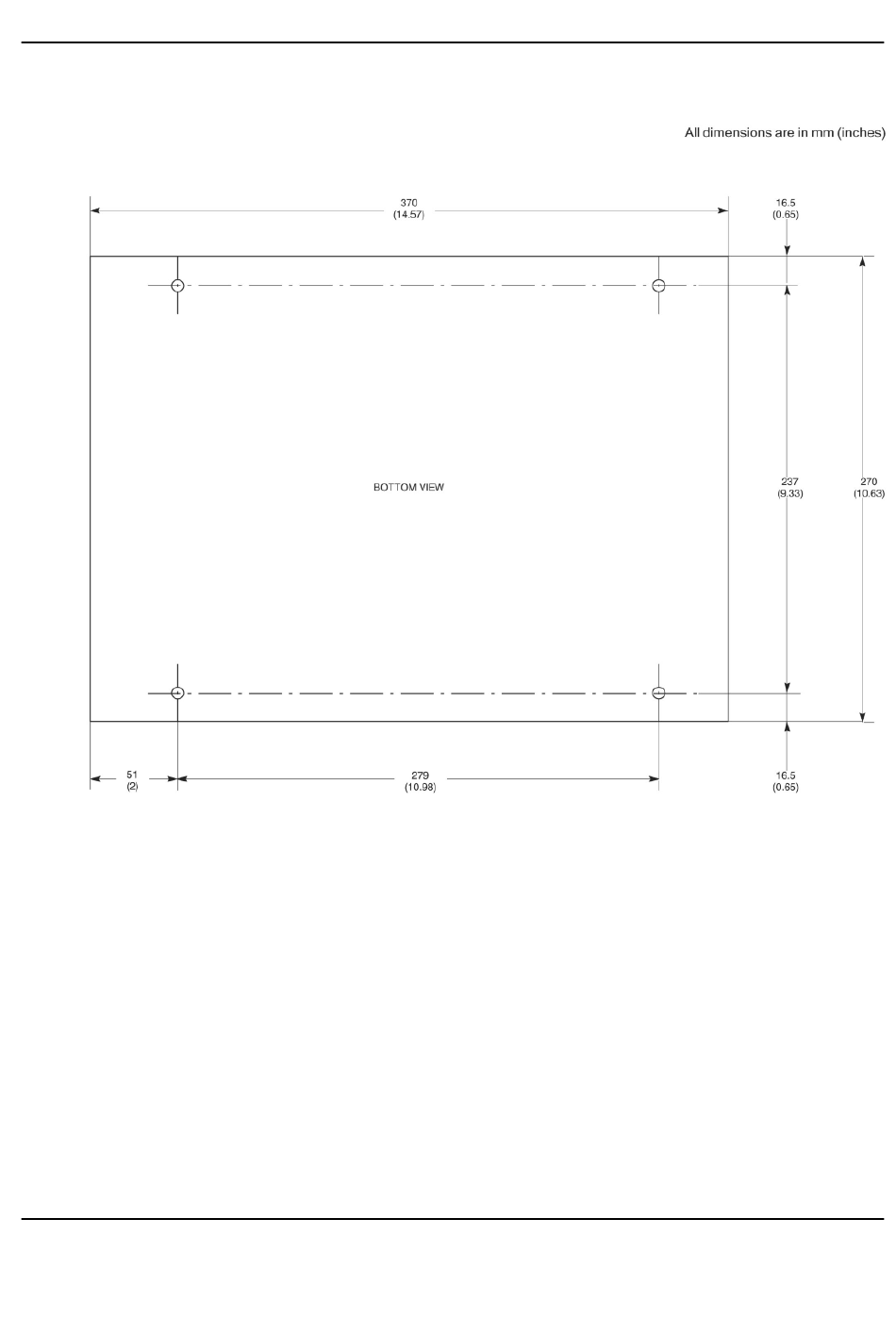

Illustration 5-27: VCR Mounting Holes Location
NOTE: Unscrew the four
holes accommodate M3 x 10 mm screws. The holes are 0.4 inches (10 mm) deep.
Chapter 5 Physical Characteristics
feet on the bottom. Use these four holes to fix the VCR. The mounting
