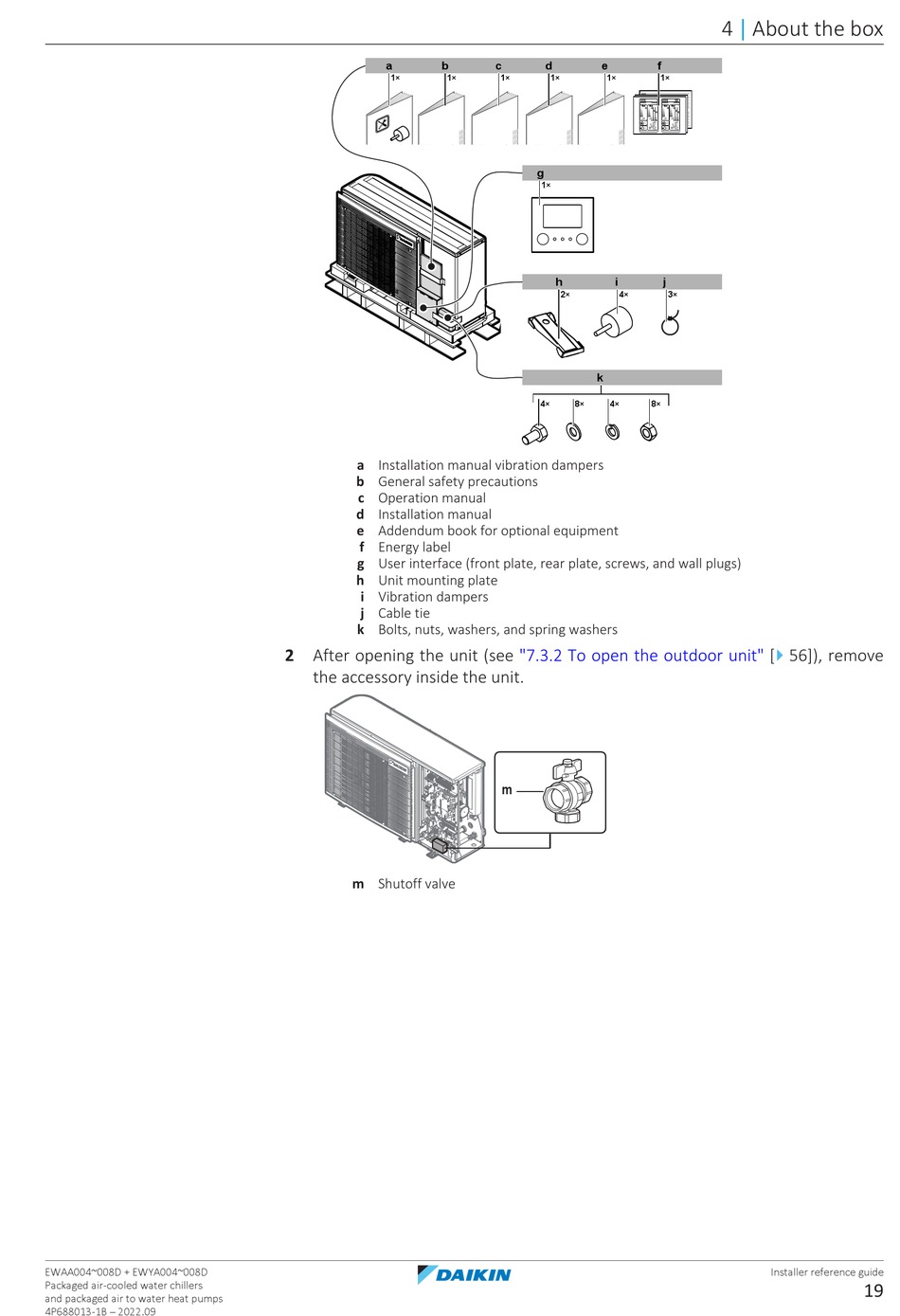

a Installation manual vibration dampers
b General safety precautions
c Operation manual
d Installation manual
e Addendum book for optional equipment
f Energy label
g User interface (front plate, rear plate, screws, and wall plugs)
h Unit mounting plate
i Vibration dampers
j Cable tie
k Bolts, nuts, washers, and spring washers
2 After opening the unit (see
the accessory inside the unit.
m Shutoff valve
c d e f
1× 1× 1× 1×
g
1×
h i j
2× 4×
k
4× 8× 4× 8×
"7.3.2 To open the outdoor
m
4 About the box
|
3×
4
unit" [ 56]), remove
