Brief Operating Instructions
RID14

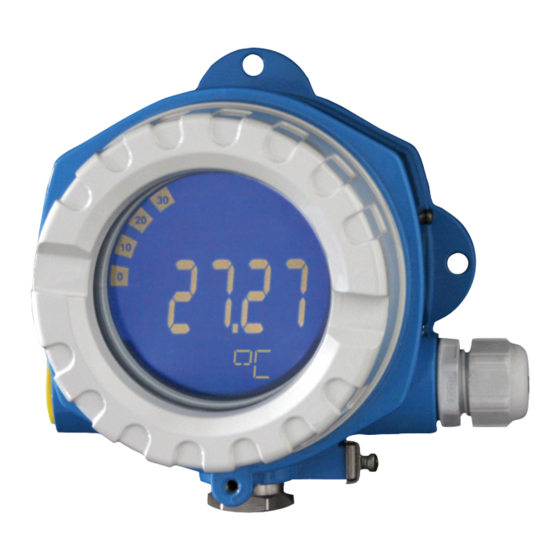

Fieldbus indicator
with PROFIBUS® PA protocol
These Brief Operating Instructions are not a substitute for the
Operating Instructions pertaining to the device.
Detailed information is provided in the Operating Instructions
and other documentation.
Available for all device versions via:
• Internet: www.endress.com/deviceviewer
• Smartphone/tablet: Endress+Hauser Operations app
Solutions
Services
Advertisement
Table of Contents
Related Manuals for Endress+Hauser RID14
Summary of Contents for Endress+Hauser RID14
- Page 1 These Brief Operating Instructions are not a substitute for the Operating Instructions pertaining to the device. Detailed information is provided in the Operating Instructions and other documentation. Available for all device versions via: • Internet: www.endress.com/deviceviewer • Smartphone/tablet: Endress+Hauser Operations app...
- Page 2 RID14 Order code: XXXXX-XXXXXX Ser. no.: XXXXXXXXXXXX Ext. ord. cd.: XXX.XXXX.XX Serial number www.endress.com/deviceviewer Endress+Hauser Operations App A0023555 Endress+Hauser...
-
Page 3: Table Of Contents
RID14 Table of contents Table of contents Document information ............4 Document conventions . -
Page 4: Document Information
Document information RID14 Document information Document conventions 1.1.1 Safety symbols Symbol Meaning DANGER! This symbol alerts you to a dangerous situation. Failure to avoid this situation will result in DANGER serious or fatal injury. WARNING! This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in WARNING serious or fatal injury. - Page 5 RID14 Document information 1.1.3 Symbols for certain types of information Symbol Meaning Symbol Meaning Permitted Preferred Procedures, processes or actions that Procedures, processes or actions that are permitted. are preferred. Forbidden Procedures, processes or actions that Indicates additional information. are forbidden.
-
Page 6: Safety Instructions
Safety instructions RID14 Symbol Meaning Open-ended wrench A0011222 Torx screwdriver A0013442 Safety instructions Requirements for personnel The personnel must fulfill the following requirements for its tasks: ‣ Trained, qualified specialists must have a relevant qualification for this specific function and task. -
Page 7: Product Safety
It meets general safety standards and legal requirements. It also complies with the EC directives listed in the device-specific EC Declaration of Conformity. Endress+Hauser confirms this by affixing the CE mark to the device. Identification Device designation 3.1.1... -
Page 8: Scope Of Delivery
Installation RID14 Scope of delivery The scope of delivery of the field indicator comprises: • Field indicator • Brief Operating Instructions as hard copy • ATEX - safety instructions for using a device approved for hazardous areas, optional • Optional accessories (e.g. pipe mounting bracket), see ' A ccessories' section in the Operating instructions. -
Page 9: Installation Conditions
RID14 Installation Installation conditions The process indicator is designed to be used in the field. The orientation is determined by the readability of the display. Operational temperature range: –40 to +80 °C (–40 to +176 °F) NOTICE Shorter display operating life at higher temperatures ‣... - Page 10 Installation RID14 4.3.1 Turning the display Pos. 1 Pos. 2 Pos. 3 Pos. 4 90° 90° 90° A0023724 3 Field indicator, 4 display positions, can be fitted in 90° stages The display unit can be turned in 90 ° stages.
-
Page 11: Post-Installation Check
RID14 Wiring A0011258 4 Mounting the field indicator on a pipe with the mounting bracket for pipe diameters 1.5 to 2.2" Mounting plate Mounting bracket 2 M6 nuts Post-installation check After installing the device, always run the following final checks:... -
Page 12: Connecting The Cable To The Field Indicator
Wiring RID14 NOTICE Electronics can be destroyed if the unit is connected incorrectly ‣ Switch off the power supply before installing or connecting the device. Failure to observe this may result in the destruction of parts of the electronics. ‣... -
Page 13: Connection To Profibus® Pa
RID14 Wiring 5.1.1 Quick wiring guide ESD - electrostatic discharge Protect the terminals from electrostatic discharge. Failure to observe this may result in the destruction or malfunction of parts of the electronics. A0012751 ® PROFIBUS PA A0021496 6 Terminal assignment... - Page 14 Wiring RID14 NOTICE The device and fieldbus cable can be damaged by electrical voltage ‣ Switch off the power supply before installing or connecting the device. ‣ Grounding via one of the grounding screws is recommended. ‣ If the shielding of the fieldbus cable is grounded at more than one point in systems without additional potential equalization, mains-frequency equalizing currents may occur and cause damage to the cable or shielding.
- Page 15 Fieldbus connector Optionally, a fieldbus connector can be screwed into the field housing instead of a cable gland. Fieldbus connectors can be ordered as accessories from Endress+Hauser (see the ' A ccessories' section in the Operating Instructions). The connection technology of PROFIBUS® PA allows measuring devices to be connected to the fieldbus via uniform mechanical connections such as T-boxes, junction boxes etc.
-
Page 16: Degree Of Protection
Wiring RID14 M20x1.5 / NPT 1/2” SW/AF 26 A0021497 8 Connector for connection to the PROFIBUS® PA fieldbus Pin assignment / color codes Fieldbus connector 7/8" plug M12 plug Field indicator Brown wire: PA+ (terminal 1) Gray wire: shield... -
Page 17: Post-Connection Check
RID14 Operating the field indicator Post-connection check After completing the device' s electrical installation, carry out the following checks: Device condition and specifications Notes Are the device or cables damaged (visual inspection)? Electrical connection Notes Does the supply voltage match the specifications on the nameplate? - Page 18 Operating the field indicator RID14 You can make the following settings for the fieldbus interface using miniature switches (DIP switches) on the electronics module → 20: • Setting to specify whether operation is possible via DIP switches or remotely via the DTM •...
-
Page 19: Display And Operating Elements
RID14 Operating the field indicator Display and operating elements 6.2.1 Display A0012574 10 LC display of the field indicator Bar graph display in increments of 10% with indicators for underranging (item 1a) and overranging (item 1b) Measured value display, status indication "Bad measured value status"... -
Page 20: Configuration Of The Field Indicator
Operating the field indicator RID14 Configuration of the field indicator NOTICE The device is not explosion-protected when the housing is open ‣ The device must be configured outside the hazardous area. To configure the device via the FieldCare Device Setup software, connect the device to your PC. - Page 21 RID14 Operating the field indicator A0021499 11 Hardware configuration of the field indicator Data Address 8 16 32 64 Offset Write Remote protect A0024593-EN 12 Assignment of the DIP switches 6.4.1 Switching write protection on/off Write protection is switched on and off via the "WRITE LOCK" DIP switch. When write protection is active ("WRITE LOCK"...
-
Page 22: Device Configuration
Operating the field indicator RID14 Set the DIP switch "Adress/Offset" to "ON", the bus address of the measuring device whose values are to be displayed can be set using DIP switches 1 to 64. Valid address range: 0 to 125 "Set"... - Page 24 *71593374* 71593374 www.addresses.endress.com...
