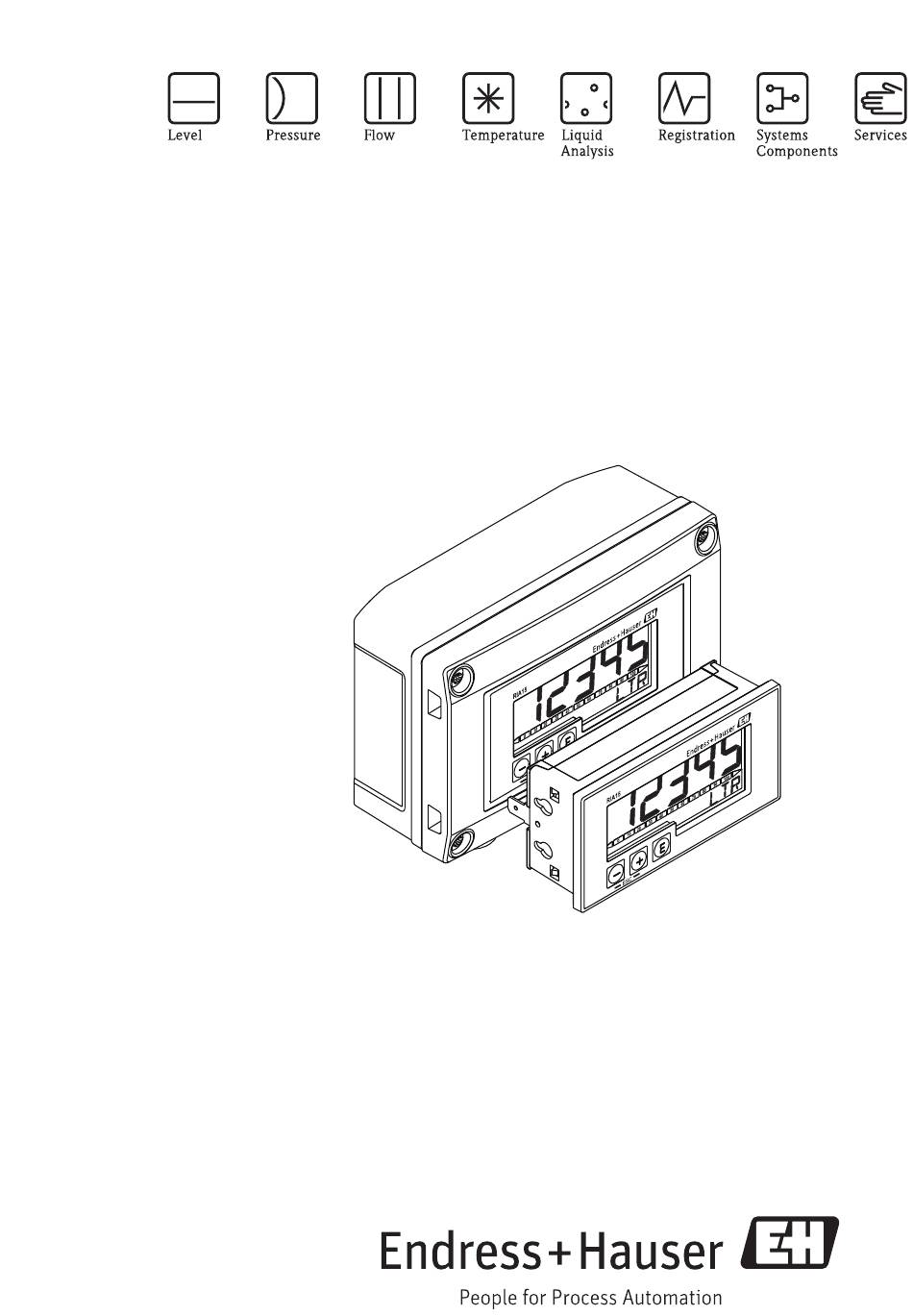

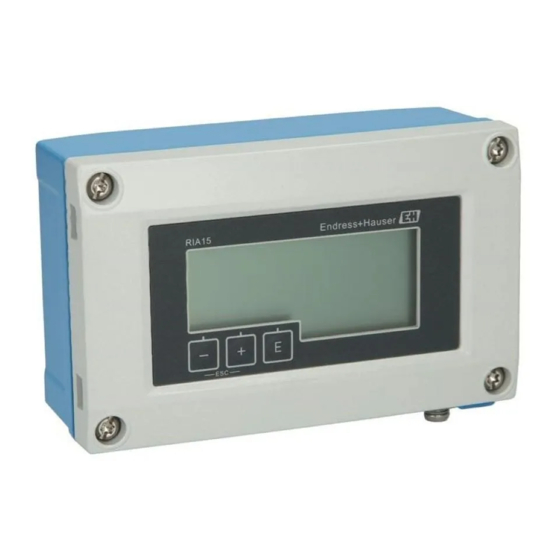

- Page 1 Operating Instructions RIA15 Process display unit Loop-powered 4 to 20 mA process display unit BA01073K/09/EN/02.12 71207036 Valid as of version 01.00.xx...
-
Page 3: Table Of Contents
Table of contents RIA15 Table of contents Important document 10 Return ....23 information ... . . 4 11 Disposal . -
Page 4: Important Document
Important document information RIA15 Important document information Document function These Operating Instructions contain all the information that is required in various phases of the life cycle of the device: from product identification, incoming acceptance and storage, to mounting, connection, operation and commissioning through to troubleshooting, maintenance and disposal. - Page 5 RIA15 Important document information 1.2.3 Symbols for certain types of information Symbol Meaning Allowed Indicates procedures, processes or actions that are allowed. A0011182 Preferred Indicates procedures, processes or actions that are preferred. A0011183 Forbidden Indicates procedures, processes or actions that are forbidden.
-
Page 6: Safety Instructions
Safety instructions RIA15 1.2.5 Tool symbols Symbol Meaning Flat blade screwdriver A0011220 Allen key A0011221 Open-ended wrench A0011222 Torx screwdriver A0013442 Safety instructions Requirements for the personnel The personnel for installation, commissioning, diagnostics and maintenance must fulfill the following requirements: Trained, qualified specialists must have a relevant qualification for this specific function and ►... -
Page 7: Workplace Safety
If a plastic transmitter housing is permanently exposed to certain steam and air mixtures, this can damage the housing. If you are unsure, please contact your Endress+Hauser Sales Center for clarification. ► If used in an approval-related area, observe the information on the nameplate. -
Page 8: Identification
Front IP65 Type 4X Encl. Loop powered 4...20 mA Ser. no.: XXXXXXXXXXXXXXXXX Umax 30V Imax 100mA Ext. ord. cd.: RIA15-XXXXXXX Class2 circuit or SELV circuit Ta= -40...+60°C A0018814 Nameplate of the process display unit (example) å 1 Order code of the device... -
Page 9: Installation
RIA15 Installation The device is designed to meet state-of-the-art safety requirements, has been tested, and left the factory in a condition in which it is safe to operate. The device complies with the applicable standards and regulations in accordance with EN 61010-1 "Safety requirements for electrical equipment for measurement, control and laboratory use". -
Page 10: Installation Instructions
Installation RIA15 Installation instructions See the "Technical data" section for the dimensions of the device (® ä 27). 4.3.1 Panel housing A0017762 Installation instructions for the panel housing å 2 Installation in a panel with a panel cutout 92x45 mm (3.62x1.77 in.), max. panel thickness 13 mm (0.51 in). - Page 11 RIA15 Installation A0017789 Mounting the process display unit on a pipe å 3 Mounting plate for pipe/wall mounting Weather protection cover (optional) 1. Release the 4 housing screws 2. Open the housing 3. Secure the mounting plate to the rear of the device with 4 screws supplied. The optional weather protection cover can be secured between the device and the mounting plate.
- Page 12 Installation RIA15 Wall mounting With optionally available mounting kit. A0017803 Mounting the process display unit on a wall å 4 1. Use the mounting plate as a stencil for 2 6 mm (0.24 in.) bore holes, 82 mm (3.23 in) apart, and secure the plate on the wall with 2 screws (not supplied).
-
Page 13: Post-Installation Check
RIA15 Wiring 4. Close the cover and tighten the housing screws. Post-installation check 4.4.1 Display unit in the panel-mount housing • Is the seal undamaged? • Are the mounting clips securely fastened on the housing of the device? • Are the threaded rods properly tightened? •... - Page 14 Wiring RIA15 Terminal Description Auxiliary terminals (electrically connected internally) Potential equalization • Panel-mounted device: Terminal on the rear of the housing • Field device: Terminal in the housing Connection without backlighting Connection with backlighting Connection with transmitter power supply and transmitter...
-
Page 15: Inserting The Cable, Field Housing
RIA15 Wiring Inserting the cable, field housing A0017830 Inserting the cable, field housing, connection without transmitter power supply (example) 1. Release the housing screws 2. Open the housing 3. Open the cable gland and insert the cable 4. Connect the cable incl. potential equalization and close the cable gland... -
Page 16: Connecting To Potential Equalization
Wiring RIA15 Connecting to potential equalization 5.3.1 Panel-mounted device A0018894 Potential equalization terminal on panel-mounted device å 5 5.3.2 Field device A0018895 Potential equalization terminal in field housing å 6 Grounding When used in the hazardous area (with optional Ex approval), the field housing must be grounded via a grounding screw fitted on the outside of the housing. -
Page 17: Degree Of Protection
RIA15 Wiring A0018908 Ground terminal on field housing å 7 Degree of protection 5.5.1 Field housing The devices meet all the requirements of IP66. It is absolutely essential to comply with the following points to ensure this protection is guaranteed after mounting or servicing the device: •... -
Page 18: Operation
Operation RIA15 Are the mounted cables, incl. potential equalization, connected correctly and strain-relieved? Field housing: are the cable glands securely closed? Operation A0017989 Display and operating elements of the process display unit å 8 Symbol: operating menu disabled Symbol: error Symbol: over range/under range Operating keys "-", "+", "E"... -
Page 19: Operating Functions
RIA15 Commissioning Operating functions The operating functions of the process display unit are divided into the following menus. The individual parameters and settings are described in the "Commissioning" section. Setup Basic device settings (® ä 19) (SETUP) Diagnostics Device information, display of error messages (® ä 20) - Page 20 Commissioning RIA15 Setup menu (SETUP) Parameter Values Description SC_20 Numerical value 5-digit value (number of decimal places as configured under –19 999 to 99 999 DECIM) for scaling the measured value at 20 mA Example: SC_20 = 100.0 Þ 100.0 displayed at 20 mA Default: 100.0...
-
Page 21: Troubleshooting
RIA15 Troubleshooting Expert menu (EXPRT); a code must be entered In addition to all the parameters in the Setup menu, the Expert menu also contains the parameters described in this table. Parameter Values Description FRSET Resets the device setup. The values are reset to the preset values for preconfigured devices, and to the default values for all other devices. -
Page 22: Diagnostic Messages
Troubleshooting RIA15 Diagnostic messages Diagnostic Short text Corrective measure Status signal Diagnostic behavior number Diagnostics for the sensor F100 Sensor error • Check electrical wiring Alarm • Check sensor • Check sensor settings S901 Input signal too • Check transmitter output... -
Page 23: Spare Parts
RIA15 Maintenance Spare parts A0018882 Spare parts of the process display unit å 9 Item No. Designation Order number Mainboard 4 to 20 mA XPR0005-AAA LCD module XPR0006-A1 Small parts set for panel-mount housing (5-pin plug-in terminal, seal on XPR0006-A2... -
Page 24: Disposal
Disposal RIA15 Endress+Hauser, as an ISO-certified company, is required to follow certain procedures when handling returned products that are in contact with medium. To ensure swift, safe and professional device returns, please read the return procedures and conditions on the Endress+Hauser website at www.services.endress.com/return-material... - Page 25 RIA15 Technical data 12.3.2 Maximum measured error Input Range Measured error of measuring range Current 4 to 20 mA ±0.1 % Over range up to 22 mA 12.3.3 Resolution Signal resolution > 13 bit 12.3.4 Influence of ambient temperature < 0.01 %/K (0.0056 %/°F) of measuring range 12.3.5...
- Page 26 Technical data RIA15 12.5.2 Storage temperature –40 to 85 °C (–40 to 185 °F) 12.5.3 Climate class IEC 60654-1, Class B2 12.5.4 Altitude Up to 5 000 m (16 400 ft) above MSL in accordance with IEC61010-1 12.5.5 Degree of protection...
- Page 27 RIA15 Technical data 12.6 Mechanical construction 12.6.1 Design, dimensions Panel-mount housing 109.75 (4.32) 96 (3.78) 37 (1.46) 4.5 (0.18) mm (in.) 89.5 (3.52) A0017721 Dimensions of the panel housing å 10 Required panel cutout 45x92 mm (1.77x3.62 in.), max. panel thickness 13 mm (0.51 in).
- Page 28 Technical data RIA15 Field housing 131 (5.16) 55.5 (2.19) mm (in.) A0017722 Dimensions of the field housing å 11 12.6.2 Weight Panel-mount housing 115 g (0.25 lb.) Field housing 520 g (1.15 lb.) 12.6.3 Materials Panel-mount housing Front: aluminum Rear panel: polycarbonate PC...
- Page 29 RIA15 Technical data 12.7 Operability 12.7.1 Local operation The device is operated with the 3 operating keys on the front of the housing. The device setup can be disabled with a 4-digit user code. A padlock symbol appears on the display when the setup is disabled.
- Page 30 Various accessories, which can be ordered with the device or subsequently from Endress +Hauser, are available for the device. Detailed information on the order code in question is available from your local Endress+Hauser sales center or on the product page of the Endress +Hauser website: www.endress.com.
- Page 31 RIA15 Technical data 12.9.1 Device-specific accessories Protective cover 201 (7.91) 298 (11.73) (2.48) mm (in.) A0017731 Mounting kit for wall/pipe mounting mm (in.) 82 (3.23) 11.5 (0.45) 115 (4.53) A0017801 Dimensions of the mounting bracket å 12 Endress+Hauser...
