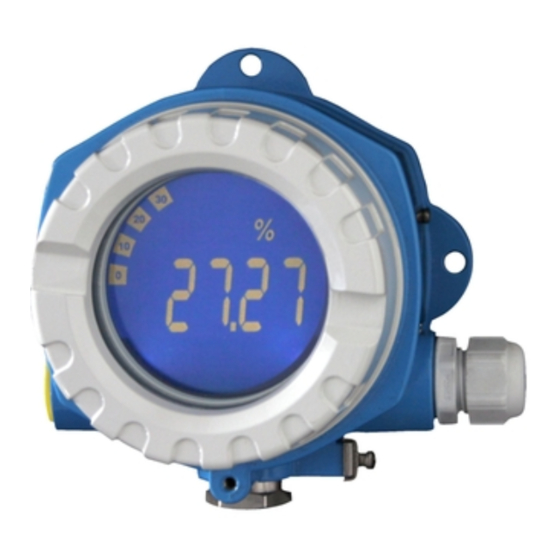

Endress+Hauser RID14 Brief Operating Instructions
8-channel field indicator with profibus pa protocol
Hide thumbs
Also See for RID14:
- Operating instructions manual (68 pages) ,
- Brief operating instructions (44 pages) ,
- Operating instructions manual (56 pages)
Table of Contents
Advertisement
Quick Links

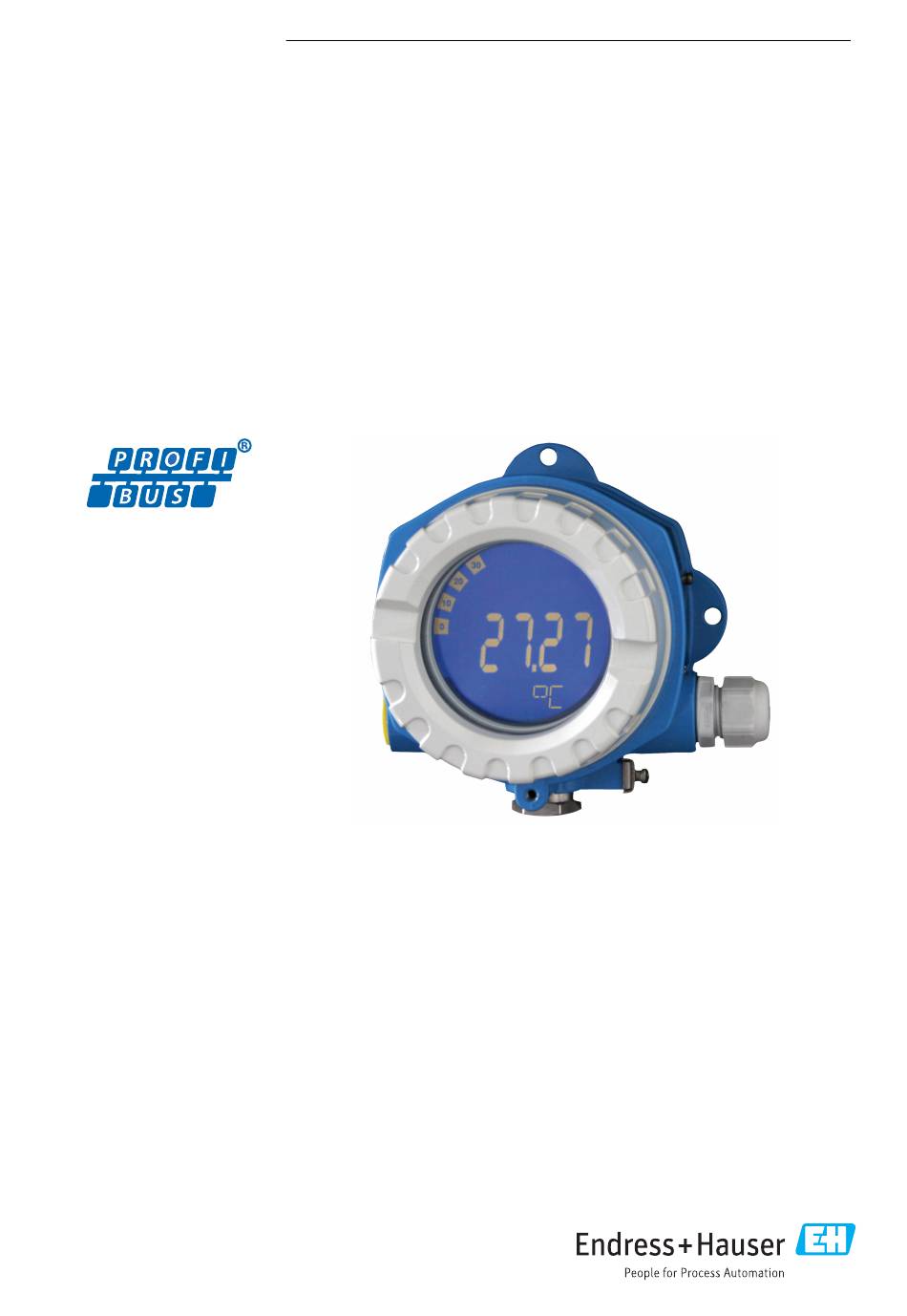

KA01156K/09/EN/04.23-00
71616051
2023-01-31
Products
Brief Operating Instructions
RID14
8-channel field indicator
with PROFIBUS® PA protocol
These Brief Operating Instructions are not a substitute for the
Operating Instructions pertaining to the device.
Detailed information is provided in the Operating Instructions
and other documentation.
Available for all device versions via:
• Internet:
www.endress.com/deviceviewer
• Smartphone/tablet: Endress+Hauser Operations app
Solutions
Services
Advertisement
Table of Contents
Related Manuals for Endress+Hauser RID14
Summary of Contents for Endress+Hauser RID14
- Page 1 These Brief Operating Instructions are not a substitute for the Operating Instructions pertaining to the device. Detailed information is provided in the Operating Instructions and other documentation. Available for all device versions via: • Internet: www.endress.com/deviceviewer • Smartphone/tablet: Endress+Hauser Operations app...
- Page 2 RID14 Order code: XXXXX-XXXXXX Ser. no.: XXXXXXXXXXXX Ext. ord. cd.: XXX.XXXX.XX Serial number www.endress.com/deviceviewer Endress+Hauser Operations App A0023555 Endress+Hauser...
-
Page 3: Table Of Contents
RID14 Table of contents Table of contents About this document ............. . 4 Symbols . -
Page 4: About This Document
About this document RID14 About this document Symbols 1.1.1 Safety symbols DANGER This symbol alerts you to a dangerous situation. Failure to avoid this situation will result in serious or fatal injury. WARNING This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in serious or fatal injury. -
Page 5: Safety Instructions
RID14 Safety instructions Symbol Meaning Symbol Meaning Reference to documentation Reference to page Reference to graphic … Series of steps Result of a step Visual inspection 1.1.4 Symbols in graphics Symbol Meaning Symbol Meaning 1, 2, 3,... Item numbers …... -
Page 6: Operational Safety
Incoming acceptance and product identification RID14 Operational safety Damage to the device! ‣ Operate the device in proper technical condition and fail-safe condition only. ‣ The operator is responsible for the interference-free operation of the device. Product safety This measuring device is designed in accordance with good engineering practice to meet state- of-the-art safety requirements, has been tested, and left the factory in a condition in which it is safe to operate. -
Page 7: Product Identification
(www.endress.com/deviceviewer): all the information about the device and an overview of the Technical Documentation supplied with the device are displayed. • Enter the serial number on the nameplate into the Endress+Hauser Operations App or scan the 2-D matrix code (QR code) on the nameplate with the Endress+Hauser Operations App: all the information about the device and the technical documentation pertaining to the device is displayed. -
Page 8: Certificates And Approvals
Mounting RID14 Certificates and approvals For certificates and approvals valid for the device: see the data on the nameplate Approval-related data and documents: www.endress.com/deviceviewer → (enter the serial number) 3.4.1 PROFIBUS The field indicator has successfully passed the PROFIBUS PA physical layer test. As a "non- active"... -
Page 9: Mounting The Measuring Device
RID14 Mounting 4.1.1 Dimensions 132 (5.2) 112 (4.4) 106 (4.2) 121 (4.8) 166 (6.5) A0011152 1 Dimensions of the field indicator; dimensions in mm (in) 4.1.2 Mounting location Information about the conditions (such as the ambient temperature, degree of protection, climate class etc.) that must be present at the installation location so that the device can be... - Page 10 Mounting RID14 The display can be turned in 90° steps. Remove the cover clamp (1) and the housing cover (2). Remove the display (3) from the electronics unit (4). Turn the display to the desired position and then attach it to the electronics unit.
-
Page 11: Post-Mounting Check
RID14 Electrical connection Post-mounting check After installing the device, always perform the following checks: Device condition and specifications Notes Is the measuring device damaged? Visual inspection Is the seal undamaged? Visual inspection Is the device securely fastened to the wall or the mounting plate? Is the housing cover fixed tightly? Does the device correspond to the measuring point specifications, e.g., ambient... - Page 12 Electrical connection RID14 A0012568 4 Opening the field indicator housing Open the cable gland, or remove the cable gland to use a fieldbus connector (optional accessory). Remove the cover clamp. Remove the housing cover. Remove the display. Remove the screws from the electronics unit.
- Page 13 RID14 Electrical connection Quick wiring guide ® PROFIBUS PA A0021496 5 Terminal assignment Terminal Terminal assignment PROFIBUS® PA connection (+) PROFIBUS® PA connection (-) 5.2.2 Connection to PROFIBUS® PA Devices can be connected to the PROFIBUS® PA in two ways: •...
- Page 14 Fieldbus connector As an option, a fieldbus connector can be screwed into the field housing instead of a cable gland. Fieldbus connectors can be ordered from Endress+Hauser as an accessory (see ' A ccessories' section in the Operating Instructions). The connection technology for PROFIBUS® PA enables measuring devices to be connected to the fieldbus via uniform mechanical connections such as T-boxes, junction boxes, etc.
- Page 15 RID14 Electrical connection Supply line/T-box shielding Always use cable glands with good EMC properties, where possible with wrapround cable shielding (Iris spring). This requires minimum differences in potential, and possibly potential equalization. • The shielding of the PA cable may not be interrupted.
-
Page 16: Ensuring The Degree Of Protection
Electrical connection RID14 Connector technical data: • Degree of protection IP 67 (NEMA 4x) • Ambient temperature: –40 to +105 °C (–40 to +221 °F) Ensuring the degree of protection The devices fulfill the requirements for the IP 67 degree of protection. Compliance with the... -
Page 17: Operation Options
RID14 Operation options Operation options Overview of operation options 6.1.1 Display A0012574 8 LC display of the field indicator Bar graph display in increments of 10% with indicators for underranging (item 1a) and overranging (item 1b) Measured value display, status indication "Bad measured value status"... - Page 18 Operation options RID14 6.1.2 Operation options Two options are available to the operator for configuring and commissioning the device: 1. Configuration programs Device-specific parameters are configured via the service interface (CDI). A special device driver (DTM) for an FDT operating program (e.g., DeviceCare, FieldCare) is available for this purpose →...
-
Page 19: Access To The Operating Menu Via The Operating Tool
RID14 Operation options The field indicator analyzes the devices active on the bus. Via their addresses, these devices can be assigned to up to 8 channels if DTM operation is used, or 2 channels in the case of operation with DIP switches. - Page 20 Operation options RID14 A0021499 10 Hardware configuration of the field indicator Data Address 8 16 32 64 Offset Write Remote protect A0051892 11 Assignment of the DIP switches 6.3.1 Switching write protection on/off Write protection is switched on or off via the "WRITE LOCK" DIP switch. When write protection is active, ("WRITE LOCK"...
-
Page 21: Device Configuration
RID14 Operation options Set the DIP switch "Address/Offset" to "ON", the bus address of the measuring device whose values are to be displayed can be set using DIP switches 1 to 64. Valid address range: 0 to 125 Set DIP switch "Set" from "OFF" to "ON" in order to accept the address setting in the device. - Page 24 *71616051* 71616051 www.addresses.endress.com...
