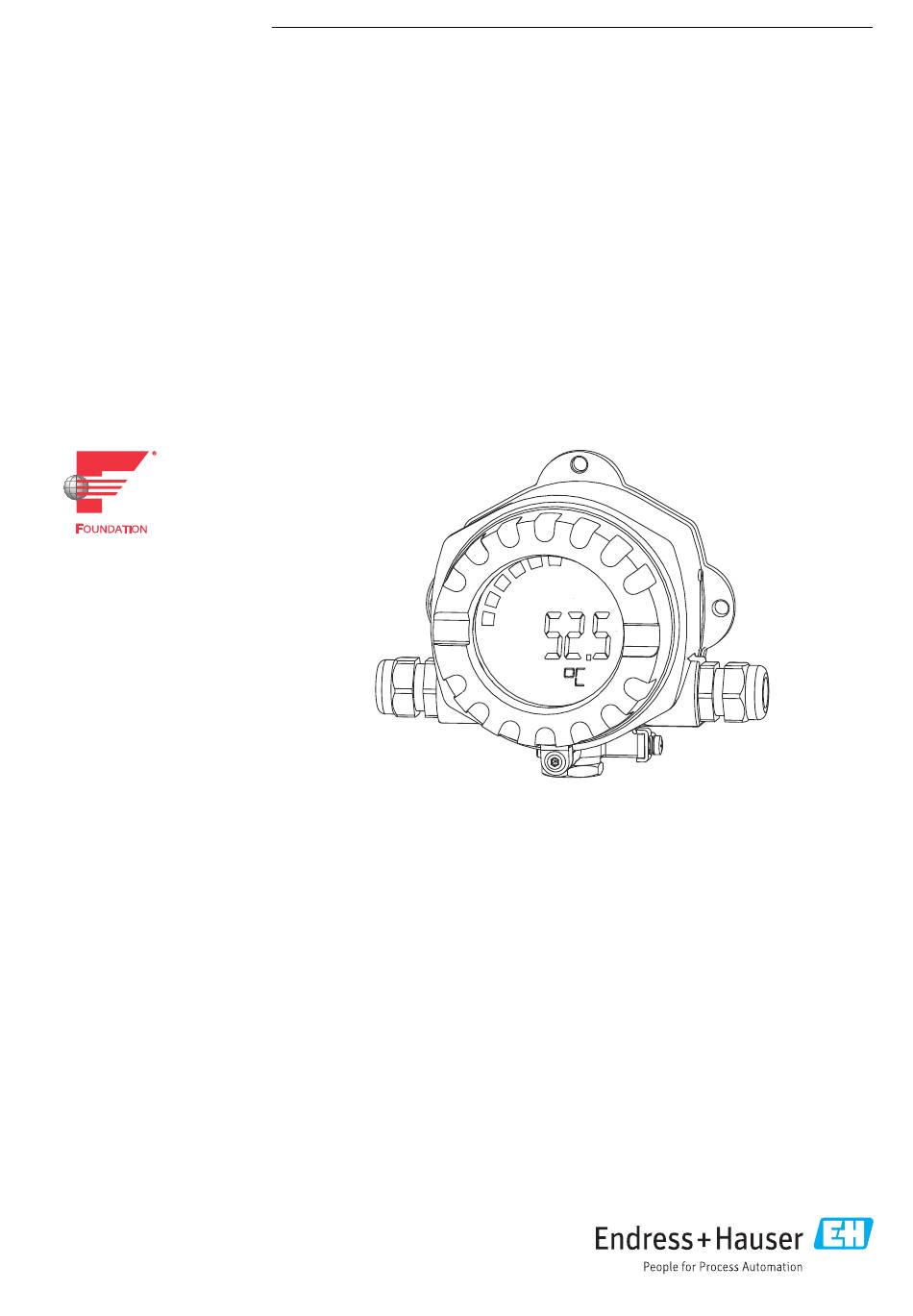

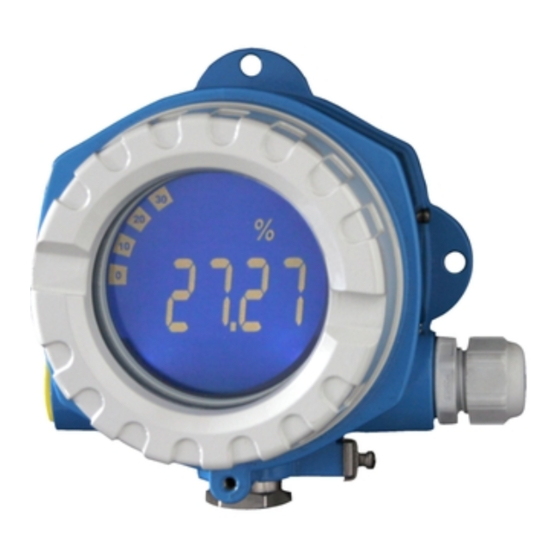

Operating Instructions
RID14
Fieldbus indicator
with FOUNDATION Fieldbus™ protocol
Solutions
50
40
30
20
10
0
Services

Advertisement

Table of Contents
loading

Related Manuals for Endress+Hauser RID14

Summary of Contents for Endress+Hauser RID14

  • Page 1 Products Solutions Services BA00282R/09/EN/15.16 71335943 Valid from version 02.00.xx (device software) Operating Instructions RID14 Fieldbus indicator with FOUNDATION Fieldbus™ protocol...

  • Page 3: Table Of Contents

    Communication-specific accessories ..31 Troubleshooting ....32 10.1 Trouble shooting instructions ... . . 32 Endress+Hauser...

  • Page 4: Document Information

    Document information RID14 Document information Document function These Operating Instructions contain all the information that is required in various phases of the life cycle of the device: from product identification, incoming acceptance and storage, to mounting, connection, operation and commissioning through to troubleshooting, maintenance and disposal.
  • Page 5 RID14 Document information 1.2.3 Symbols for certain types of information Symbol Meaning Permitted Procedures, processes or actions that are permitted. Preferred Procedures, processes or actions that are preferred. Forbidden Procedures, processes or actions that are forbidden. Indicates additional information. Reference to documentation...

  • Page 6: Safety Instructions

    Conversions to the device Unauthorized modifications to the device are not permitted and can lead to unforeseeable dangers. ‣ If, despite this, modifications are required, consult with Endress+Hauser. Repair To ensure continued operational safety and reliability, ‣ Carry out repairs on the device only if they are expressly permitted.

  • Page 7: Product Safety

    It meets general safety standards and legal requirements. It also complies with the EC directives listed in the device-specific EC Declaration of Conformity. Endress+Hauser confirms this by affixing the CE mark to the device.

  • Page 8: Identification

    The measuring system meets the legal requirements of the applicable EC guidelines. These are listed in the corresponding EC Declaration of Conformity together with the standards applied. Endress+Hauser confirms successful testing of the device by affixing to it the CE mark.
  • Page 9 RID14 Identification 3.3.3 EAC mark The product meets the legal requirements of the EEU guidelines. The manufacturer confirms the successful testing of the product by affixing the EAC mark. 3.3.4 CSA General Purpose 3.3.5 Certification Foundation Fieldbus™ The field indicator has successfully passed all the tests and is certified and registered by the Fieldbus Foundation.

  • Page 10: Installation

    Installation RID14 Installation Incoming acceptance, transport, storage The permitted ambient and storage conditions must be observed. The precise specifications can be found in Section "Technical data". 4.1.1 Incoming acceptance On receipt of the goods, check the following points: • Are the packaging or contents damaged? •...

  • Page 11: Installation Instructions

    RID14 Installation 4.2.2 Installation location Information on conditions that must be present at the installation location to mount the device correctly can be found in Section ' T echnical data' . These include the ambient temperature, degree of protection, climate class etc.

  • Page 12: Post-Installation Check

    Installation RID14 A0011258  4 Mounting the field indicator on a pipe with the mounting bracket for pipe diameters 1.5 to 2.2" Mounting plate Mounting bracket 2 M6 nuts Post-installation check After installing the device, always run the following final checks:...

  • Page 13: Wiring

    RID14 Wiring Wiring WARNING Danger of explosion if unit is connected incorrectly in hazardous area ‣ When connecting Ex-approved devices please take special note of the instructions and connection schematics in the Ex-specific supplement to these Operating Instructions. If you have any questions, please do not hesitate to contact your E+H representative.

  • Page 14: Connection To The Foundation Fieldbus

    Wiring RID14 5.1.1 Quick wiring guide ESD - electrostatic discharge Protect the terminals from electrostatic discharge. Failure to observe this may result in destruction or malfunction of parts of the electronics. A0012751 FOUNDATION Fieldbus A0012569  6 Terminal assignment Terminal Terminal assignment FOUNDATION Fieldbus™...
  • Page 15 Fieldbus connector Optionally, a fieldbus connector can be installed in field housing instead of a cable gland. Fieldbus connectors can be ordered from Endress+Hauser as an accessory (see Section ' A ccessories' ) . The connection technology of FOUNDATION Fieldbus™ allows measuring devices to be connected to the fieldbus via uniform mechanical connections such as T-boxes, junction boxes, etc.

  • Page 16: Foundation Fieldbus™ Cable Specification

    Wiring RID14 26.5 mm (1.040") 250 mm (9.84”) 150 mm (5.91”) M20x1.5 / NPT 1/2” 7/8-16 UNC A0012573  8 Connectors for connecting to the FOUNDATION Fieldbus™ Pin-Belegung / Farbcodes Fieldbus connector Blue wire: FF– (terminal 2) Field indicator Brown wire: FF+ (terminal 1)
  • Page 17 RID14 Wiring Type A Type B Attenuation constant at 39 kHz 3 dB/km 5 dB/km Capacitive asymmetry 2 nF/km 2 nF/km Envelope delay distortion (7.9 to 39 kHz) 1.7 mS/km Shield coverage 90 % Max. cable length (incl. spurs > 1 m...
  • Page 18 Wiring RID14 To comply with both requirements, the FOUNDATION Fieldbus™ basically allows three different types of shielding: • Shielding at both ends • Shielding at one end on the feed side with capacitance connection to the field device • Shielding at one end on the feed side Experience shows that the best results with regard to EMC are achieved in most cases in installations with one-sided shielding.

  • Page 19: Degree Of Protection

    RID14 Wiring Degree of protection The devices fulfill the requirements for IP 67 degree of protection. Compliance with the following points is mandatory to ensure IP 67 protection is guaranteed after installation or after service work: • The housing seal must be clean and undamaged when it is inserted into the groove. The seal should be cleaned, dried or replaced.

  • Page 20: Operating The Field Indicator

    Operating the field indicator RID14 Operating the field indicator Quick operation guide Operators have two options for configuring and commissioning the device: 1. Configuration programs The configuration of FF functions and device-specific parameters is done via the fieldbus interface. You can obtain special configuration and operating programs from various manufacturers for these purposes →...

  • Page 21: Display And Operating Elements

    RID14 Operating the field indicator Display and operating elements 6.2.1 Display A0012574  11 LC display of the field indicator Bar graph display in increments of 10% with indicators for underranging (item 1a) and overranging (item 1b) Measured value display, status indication "Bad measured value status"...
  • Page 22 Operating the field indicator RID14 Visualization and monitoring e. g. P View, FieldCare and diagnostic software Field controller High speed Ethernet (HSE) 100 Mbit/s Linking Linking Linking 31.25 kbit/s Device Device Device H1 IEC 61158-2 FISCO RID16 RID14 up to 32 devices per segment A0011300-EN ...
  • Page 23 RID14 Operating the field indicator Data can be directly exchanged between field devices, e.g. a sensor and an actuating valve. Each bus user ’publishes’ its data on the bus and all the bus users configured accordingly obtain this data. Publication of this data is carried out by a ’bus administrator’ known as the ’Link Active Scheduler’, which controls the sequence of bus communication centrally.

  • Page 24: Configuration Of The Field Indicator

    Operating the field indicator RID14 In the case of sensors these are typically the following blocks: • "Analog Input" or • "Discrete Input" (digital input) Actuating valves normally have the function blocks: • "Analog Output" or • "Discrete Output" (digital output) For control tasks there are the blocks: •...

  • Page 25: Hardware Settings

    RID14 Operating the field indicator The FF communication system will only function properly if correctly configured. You can obtain special configuration and operating programs from various manufacturers for the configuration. Process control systems Asset management systems Emerson DeltaV Endress+Hauser FieldCare/DeviceCare Rockwell Control Logix/FFLD National Instruments NI-Configurator (≥...
  • Page 26 Operating the field indicator RID14 A0011641  13 Hardware settings via DIP switches Switch position ON Switch position OFF Write lock Endress+Hauser...

  • Page 27: Commissioning

    ID, device type and device serial number. It is unique and can never be assigned twice. The DEVICE_ID of the device is composed as follows: DEVICE_ID = 452B4810CF-XXXXXXXXXXX 452B48 = Endress+Hauser 10CF = RID1x XXXXXXXXXXX = device serial number (11-digit)
  • Page 28 4. Switch the device on.  The first time you establish a connection, the device reacts as follows in the configuration system: EH_RID14-xxxxxxxxxxx (for RID14, xxx... = serial number) 452B4810CF-xxxxxxxxxxx (DEVICE_ID) for RID1x Block structure →  28 5. Using the DEVICE_ID noted, identify the field device and assign the desired tag name (PD_TAG) to the fieldbus device in question.
  • Page 29 RID14 Commissioning Block description Permanent Block class Advanced Diagnostic Manufacturer-specific Standard Input Selector 1 Standard Input Selector 2 Standard Arithmetic Standard Integrator Standard The device is delivered from the factory with the bus address “247” and is thus in the address range for readdressing field devices.

  • Page 30: Maintenance

    Maintenance RID14 Maintenance No special maintenance work is required on the device. Endress+Hauser...

  • Page 31: Accessories

    Various accessories, which can be ordered with the device or subsequently from Endress +Hauser, are available for the device. Detailed information on the order code in question is available from your local Endress+Hauser sales center or on the product page of the Endress+Hauser website: www.endress.com.

  • Page 32: Troubleshooting

    Troubleshooting RID14 Troubleshooting 10.1 Trouble shooting instructions In the event of a critical error, it might be necessary to return the indicator to the manufacturer for repair. Follow the instructions in →  37 before returning the indicator. Always start troubleshooting with the checklists below if faults occur after start up or during operation.

  • Page 33: Status Messages

    RID14 Troubleshooting Problems when configuring function blocks Transducer Blocks: Check whether the operating mode of the Resource Block is set to AUTO → The operating mode MODE_BLK parameter group / TARGET parameter. cannot be set to AUTO. Transducer Blocks: The device description file (Device Description, DD) has not yet been loaded to the The manufacturer-specific host system or the configuration program? →...

  • Page 34: Spare Parts

    The message is only displayed during a reset. 10.3 Spare parts Always quote the serial number of the device when ordering spare parts! A0013204  14 Spare parts for field indicator Item No. RID14 housing Certificates: Non-hazardous area + Ex nA Endress+Hauser...

  • Page 35: Software History And Overview Of Compatibility

    3x thread NPT1/2, w/o terminal block 3x M20x1.5, w/o terminal block 3x thread G1/2, w/o terminal block Version: Standard RIA141G- ← complete order code for RID14 housing Item No. Type Order number Housing cover cpl. display, aluminum Ex d + RIA141X-HK seal Housing cover cpl.
  • Page 36 Troubleshooting RID14 The version number on the nameplate and in the Operating Instructions indicates the device release: XX.YY.ZZ (example 01.02.01). Change to main version. No longer compatible. The device and Operating Instructions change. Change to functions and operation. Compatible. The Operating Instructions change.

  • Page 37: Return

    The measuring device must be returned if it is need of repair or a factory calibration, or if the wrong measuring device has been delivered or ordered. Legal specifications require Endress+Hauser, as an ISO-certified company, to follow certain procedures when handling products that are in contact with the medium.

  • Page 38: Disposal

    Disposal RID14 Disposal The device contains electronic components and must therefore be disposed of as electronic waste. Comply with local disposal regulations. Endress+Hauser...

  • Page 39: Technical Data

    RID14 Technical data Technical data 13.1 Communication 13.1.1 Failure information Status message as per the fieldbus specification. 13.1.2 Switch-on delay 13.1.3 FOUNDATION Fieldbus™ • FOUNDATION Fieldbus™ H1, IEC 61158-2 • FDE (Fault Disconnection Electronic) = 0 mA • Data transmission rate, supported baudrate: 31.25 kBit/s •...
  • Page 40 Technical data RID14 Link settings Slot time Min. Inter PDU delay Max. response delay Blocks Block description Block index Permanent Block execution time Block category Resource Extended Display Transducer Manufacturer-specific Advanced Diagnostic Manufacturer-specific 1100 30 ms Standard Input Selector 1...

  • Page 41: Power Supply

    RID14 Technical data 13.2 Power supply 13.2.1 Electrical connection A0021528  15 Terminal assignment of the field indicator Fieldbus connection 13.2.2 Supply voltage Voltage is supplied via the fieldbus. U = 9 to 32 V , polarity-independent (max. voltage U = 35 V).

  • Page 42: Environment

    Technical data RID14 13.4 Environment 13.4.1 Ambient temperature range –40 to +80 °C (–40 to +176 °F) The display can react slowly at temperatures < –20 °C (–4 °F). At temperatures < –30 °C (–22 °F) the readability of the display can no longer be guaranteed.

  • Page 43: Mechanical Construction

    RID14 Technical data 13.5 Mechanical construction 13.5.1 Design, dimensions 132 (5.2) 112 (4.4) 106 (4.2) 121 (4.8) 166 (6.5) A0011152  16 Dimensions of the field indicator; dimensions in mm (in) • Aluminum housing for general applications or optional stainless steel housing •...

  • Page 44: Operability

    Technical data RID14 13.6 Operability 13.6.1 Local operation Display elements A0011307  17 LC display of the field indicator (backlit, can be plugged in in 90° stages) Bar graph display in increments of 10% with indicators for underranging (item 1a) and overranging (item 1b) Measured value display, digit height 20.5 mm (0.8 in), status indication "Bad measured value status"...

  • Page 45: Certificates And Approvals

    The measuring system meets the legal requirements of the applicable EC guidelines. These are listed in the corresponding EC Declaration of Conformity together with the standards applied. Endress+Hauser confirms successful testing of the device by affixing to it the CE mark.

  • Page 46: Appendix

    Appendix RID14 Appendix 14.1 Block model In the FOUNDATION™ Fieldbus all the device parameters are categorized according to their functional properties and task and are generally assigned to three different blocks. A block may be regarded as a container in which parameters and the associated functionalities are contained.
  • Page 47 RID14 Appendix 14.2.1 Selecting the operating mode The operating mode is set via the MODE_BLK parameter group. The Resource Block supports the following operating modes: • AUTO (automatic mode) • OOS (out of service) The ' O ut Of Service' (OOS) mode is also shown via the BLOCK_ERR parameter. In the OOS operating mode, you can access all the write parameters without restriction if write protection is not enabled.
  • Page 48 This parameter is required only for interoperability tests and has no significance in normal operation. DD Resource Read only Displays the source for the device description in the device. (DD_RESOURCE) Display: (BLANK SPACE) Manufacturer ID Read only Displays the manufacturer' s ID number. (MANUFAC_ID) Display: 0 x 452B48 = Endress+Hauser Endress+Hauser...
  • Page 49 RID14 Appendix Resource Block Parameter Parameters Write access Description Index with operating mode (MODE_BLK) Device type (DEV_TYPE) Read only Displays the device ID number in hexadecimal format. Display: 0 x 10CF hex for RID1x Device Revision (DEV_REV) Read only Use this function to view the device revision number.
  • Page 50 Appendix RID14 Resource Block Parameter Parameters Write access Description Index with operating mode (MODE_BLK) Free Time (FREE_TIME) Read only Displays the free system time available (as a percentage) for the execution of additional function blocks. This parameter always displays the value 0 because the function blocks of the device are preconfigured.
  • Page 51 RID14 Appendix Resource Block Parameter Parameters Write access Description Index with operating mode (MODE_BLK) Acknowledge Option AUTO - OOS This parameter is used to specify whether a process alarm must be acknowledged by (ACK_OPTION) the fieldbus host system when the alarm is detected. If the option is activated, the process alarm is acknowledged automatically.
  • Page 52 Appendix RID14 Resource Block Parameter Parameters Write access Description Index with operating mode (MODE_BLK) Factory setting: Operator Field device diagnostic Read only The main version of the FF field diagnostic specification which was used for version (FD_VER) development purposes for this device.

  • Page 53: Transducer Blocks

    RID14 Appendix Resource Block Parameter Parameters Write access Description Index with operating mode (MODE_BLK) Block Error Description 1 Read only Displays additional information to troubleshoot a block error. (BLOCK_ERR_DESC_1) • Simulation permitted: simulation is permitted with the activated simulation switch •...
  • Page 54 Appendix RID14 Transducer Block Parameter Parameters Write access Description Index with operating mode (MODE_BLK) Block Mode (MODE_BLK) AUTO - OOS Displays the actual and target operating mode of the corresponding Transducer Block, the permitted modes which the Resource Block supports and the normal operating mode.
  • Page 55 RID14 Appendix Transducer Block Parameter Parameters Write access Description Index with operating mode (MODE_BLK) Possible display: • No Error (normal state) • Electronics Failure • Data Integrity Error • Mechanical Failure • Configuration Error • Calibration Error • General Error...
  • Page 56 Appendix RID14 Transducer Block Parameter Parameters Write access Description Index with operating mode (MODE_BLK) DISP_VALUE_1_SETTINGS AUTO - OOS This parameter defines all the values for the setup of the indicator. The following DISP_VALUE_2_SETTINGS parameters are included: DISP_VALUE_3_SETTINGS • DISP_VALUE_1[...8]_LISTENER_MODE: DISP_VALUE_4_SETTINGS Activates the "Listener mode".
  • Page 57 RID14 Appendix Transducer Block Parameter Parameters Write access Description Index with operating mode (MODE_BLK) • DISP_VALUE_1[...8]_DESC: Use this function to enter customized text, max. 16 characters. This text is shown beneath the value. The text will scroll if it is longer than 5 characters.
  • Page 58 Appendix RID14 14.3.5 Transducer Block "Advanced Diagnostic" The Advanced Diagnostic Block provides information about the current and last device status. In addition, it also indicates the channel in which the current diagnostic event occurred. It contains minimum and maximum values for every analog channel.

  • Page 59: Pid Function Block (Pid Controller)

    RID14 Appendix Transducer Block Parameter Parameters Write access Description Index with operating mode (MODE_BLK) STATUS_SIGNAL Read only Copy of "ACTUAL_STATUS_CATEGORY" but with the "Status signal" label Block Error Description 1 Read only Displays additional information to troubleshoot a block error.

  • Page 60: Configuration Of The Device Behavior When Events Occur In Accordance With Foundation Fieldbus™ Field Diagnostics

    Appendix RID14 negative, or net flow. This capability is useful to calculate volume or mass variation in vessels or as an optimization tool for flow ratio control. The Integrator function block supports mode control, demand reset, a reset counter, and signal status calculation.
  • Page 61 RID14 Appendix 14.8.2 Assignment parameters Event categories are assigned to event groups via four assignment parameters. They can be found in the RESOURCE Block (RB2): • FD_FAIL_MAP: for the "Failure (F)" event category • FD_CHECK_MAP: for the "Function check (C)" event category •...
  • Page 62 Appendix RID14 A0019661 In the FD_FAIL_MAP parameter of the Resource Block, deselect the corresponding check box for the "Highest Configuration" group. A0019663 In the FD_CHECK_MAP parameter of the Resource Block, tick the corresponding check box for the "Highest Configuration" group.

  • Page 63: Transmission Of Event Messages To The Bus

    RID14 Appendix YYY = Diagnostic number The value in the example above is 1437 14.9 Transmission of event messages to the bus The process control system used must support the transmission of event messages. 14.9.1 Event priority Event messages are only transmitted to the bus if their priority is between 2 and 15.
