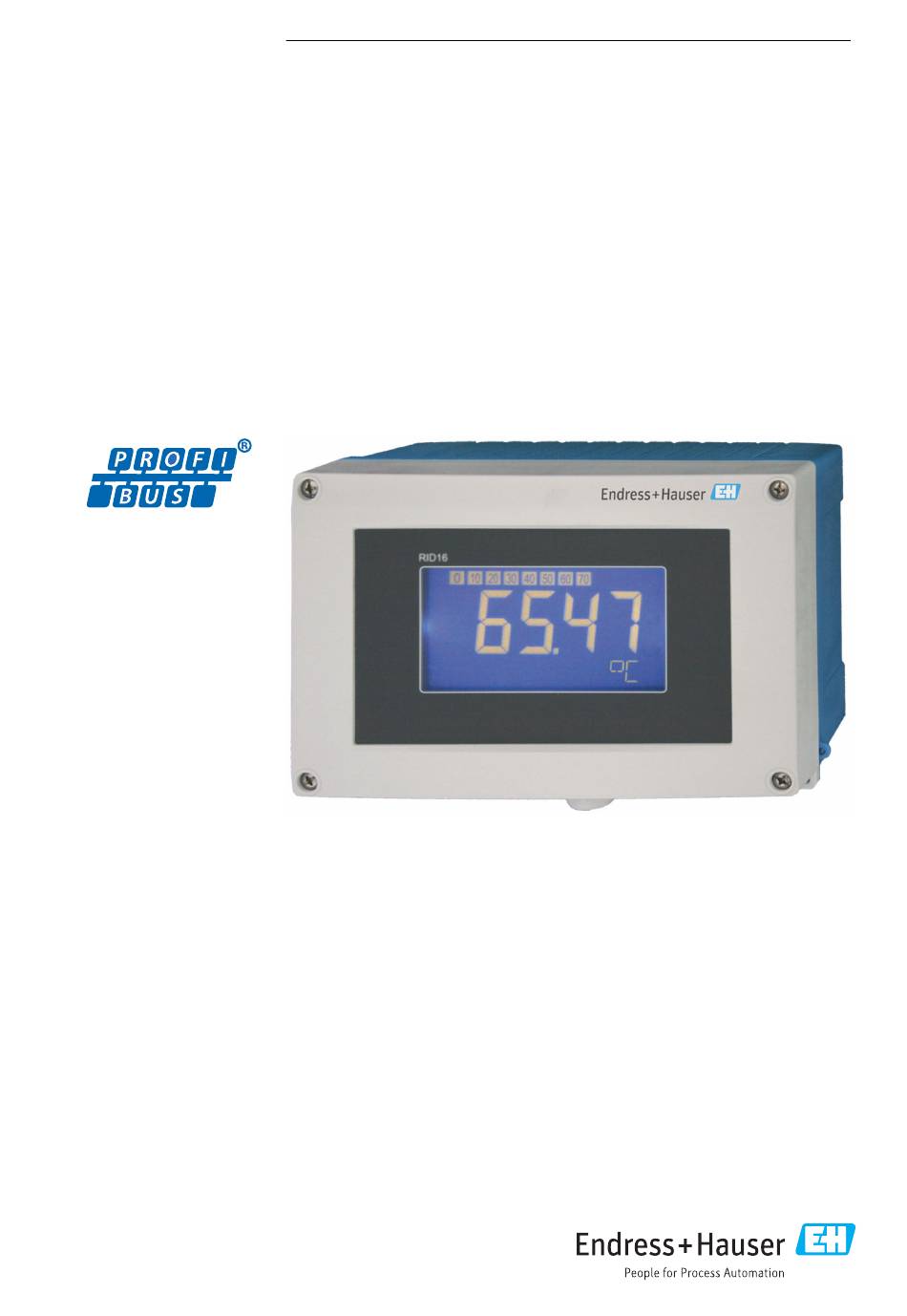

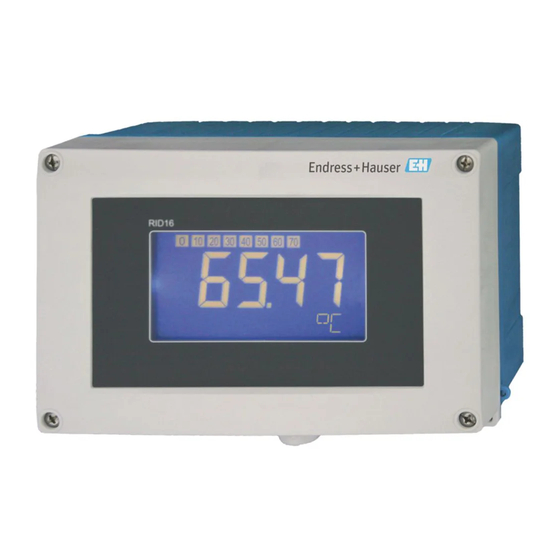

Brief Operating Instructions
RID16
8-channel field indicator
with PROFIBUS® PA protocol
These Brief Operating Instructions are not a substitute for the
Operating Instructions pertaining to the device.
Detailed information is provided in the Operating Instructions
and other documentation.
Available for all device versions via:
• Internet:
www.endress.com/deviceviewer
• Smartphone/tablet: Endress+Hauser Operations app
Solutions
Services

Advertisement

Table of Contents
loading

Summary of Contents for Endress+Hauser RID16

  • Page 1 These Brief Operating Instructions are not a substitute for the Operating Instructions pertaining to the device. Detailed information is provided in the Operating Instructions and other documentation. Available for all device versions via: • Internet: www.endress.com/deviceviewer • Smartphone/tablet: Endress+Hauser Operations app...
  • Page 2 RID16 Order code: XXXXX-XXXXXX Ser. no.: XXXXXXXXXXXX Ext. ord. cd.: XXX.XXXX.XX Serial number www.endress.com/deviceviewer Endress+Hauser Operations App A0023555 Endress+Hauser...
  • Page 3: Table Of Contents

    RID16 Table of contents Table of contents About this document ............. . 4 Symbols .
  • Page 4: About This Document

    About this document RID16 About this document Symbols 1.1.1 Safety symbols DANGER This symbol alerts you to a dangerous situation. Failure to avoid this situation will result in serious or fatal injury. WARNING This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in serious or fatal injury.
  • Page 5: Safety Instructions

    RID16 Safety instructions Symbol Meaning Symbol Meaning Reference to documentation Reference to page Reference to graphic … Series of steps Result of a step Visual inspection 1.1.4 Symbols in graphics Symbol Meaning Symbol Meaning 1, 2, 3,... Item numbers …...
  • Page 6: Operational Safety

    Incoming acceptance and product identification RID16 Operational safety Damage to the device! ‣ Operate the device in proper technical condition and fail-safe condition only. ‣ The operator is responsible for the interference-free operation of the device. Product safety This measuring device is designed in accordance with good engineering practice to meet state- of-the-art safety requirements, has been tested, and left the factory in a condition in which it is safe to operate.
  • Page 7: Product Identification

    (www.endress.com/deviceviewer): all the information about the device and an overview of the Technical Documentation supplied with the device are displayed. • Enter the serial number on the nameplate into the Endress+Hauser Operations App or scan the 2-D matrix code (QR code) on the nameplate with the Endress+Hauser Operations App: all the information about the device and the technical documentation pertaining to the device is displayed.
  • Page 8: Certificates And Approvals

    Mounting RID16 Certificates and approvals For certificates and approvals valid for the device: see the data on the nameplate Approval-related data and documents: www.endress.com/deviceviewer → (enter the serial number) 3.4.1 PROFIBUS The field indicator has successfully passed the PROFIBUS PA physical layer test. As a "non- active"...
  • Page 9: Mounting The Measuring Device

    RID16 Mounting 4.1.1 Dimensions 96 (3.78) 199 (7.83) 163 (6.42) A0011162  1 Dimensions of the field indicator; dimensions in mm (in) Bore for direct wall mounting or on mounting plate with 4 screws ⌀ 5 mm (0.2 in) 4.1.2...
  • Page 10 Mounting RID16 A0011269  2 Mounting the field indicator on a pipe with a mounting kit, steps 1 to 2. A0011270  3 Mounting the field indicator on a pipe with a mounting kit, steps 3 to 4. Mounting plate...
  • Page 11: Post-Mounting Check

    RID16 Electrical connection Post-mounting check After installing the device, always perform the following checks: Device condition and specifications Notes Is the measuring device damaged? Visual inspection Is the seal undamaged? Visual inspection Is the device securely fastened to the wall or the mounting plate? Is the front of the housing fixed tightly? Does the device correspond to the measuring point specifications, e.g., ambient...
  • Page 12: Connecting The Measuring Device

    Electrical connection RID16 Connecting the measuring device 5.2.1 Connecting the cable to the field indicator Preparing the connection Mounting the cable gland or fieldbus connector for the plastic housing A0021557  4 Mounting the cable gland or fieldbus connector Mounting plate...
  • Page 13 RID16 Electrical connection Procedure for wiring the field indicator A0011636  5 Opening the field indicator housing Internal ground terminal (aluminum housing only) Open the cable gland and open the housing cover Guide the cable through the cable gland Connect the cable →  7,  14 Mount the cable shield clamps (aluminum housing only) →...
  • Page 14 Electrical connection RID16 Quick wiring guide PROFIBUS® PA A0021544  7 Terminal assignment Terminal Terminal assignment PROFIBUS® PA connection (+) PROFIBUS® PA connection (-) 5.2.2 Connection to PROFIBUS® PA Devices can be connected to the PROFIBUS® PA in two ways: •...
  • Page 15 Fieldbus connector As an option, a fieldbus connector can be screwed into the field housing instead of a cable gland. Fieldbus connectors can be ordered from Endress+Hauser as an accessory (see ' A ccessories' section in the Operating Instructions). The connection technology for PROFIBUS® PA enables measuring devices to be connected to the fieldbus via uniform mechanical connections such as T-boxes, junction boxes, etc.
  • Page 16 Electrical connection RID16 Supply line/T-box shielding Always use cable glands with good EMC properties, where possible with wrapround cable shielding (Iris spring). This requires minimum differences in potential, and possibly potential equalization. • The shielding of the PA cable may not be interrupted.
  • Page 17: Ensuring The Degree Of Protection

    RID16 Electrical connection Connector technical data: • Degree of protection IP 67 (NEMA 4x) • Ambient temperature: –40 to +105 °C (–40 to +221 °F) Ensuring the degree of protection The devices fulfill the requirements for the IP 67 degree of protection. Compliance with the...
  • Page 18: Operation Options

    Operation options RID16 Operation options Overview of operation options 6.1.1 Display A0011309  10 LC display of the field indicator Bar graph display in increments of 10% with indicators for underranging (item 1a) and overranging (item 1b) Measured value display, status indication "Bad measured value status"...
  • Page 19 RID16 Operation options The DTM file is available for download: www.endress.com/download → Select device driver → Type → Select product root. 2. Miniature switches (DIP switches) for various hardware settings You can make the following hardware settings for the fieldbus interface using miniature switches (DIP switches) on the electronics module →...
  • Page 20: Access To The Operating Menu Via The Operating Tool

    Operation options RID16 Access to the operating menu via the operating tool NOTICE Loss of explosion protection when housing is open ‣ The device must be configured outside the hazardous area. To configure the device using the FieldCare Device Setup software, connect the device to your PC.
  • Page 21 RID16 Operation options Data Address 8 16 32 64 Offset Write Remote protect A0051892  13 Assignment of the DIP switches 6.3.1 Switching write protection on/off Write protection is switched on or off via the "WRITE LOCK" DIP switch. When write protection is active, ("WRITE LOCK"...
  • Page 22: Device Configuration

    Operation options RID16 Set DIP switch "Set" from "OFF" to "ON" in order to accept the address setting in the device. The settings are only accepted if the "Set" switch is changed from "OFF" to "ON. Power-on of the device with the "Set" switch "ON" position has no effect, nor does a change of the "Set"...
