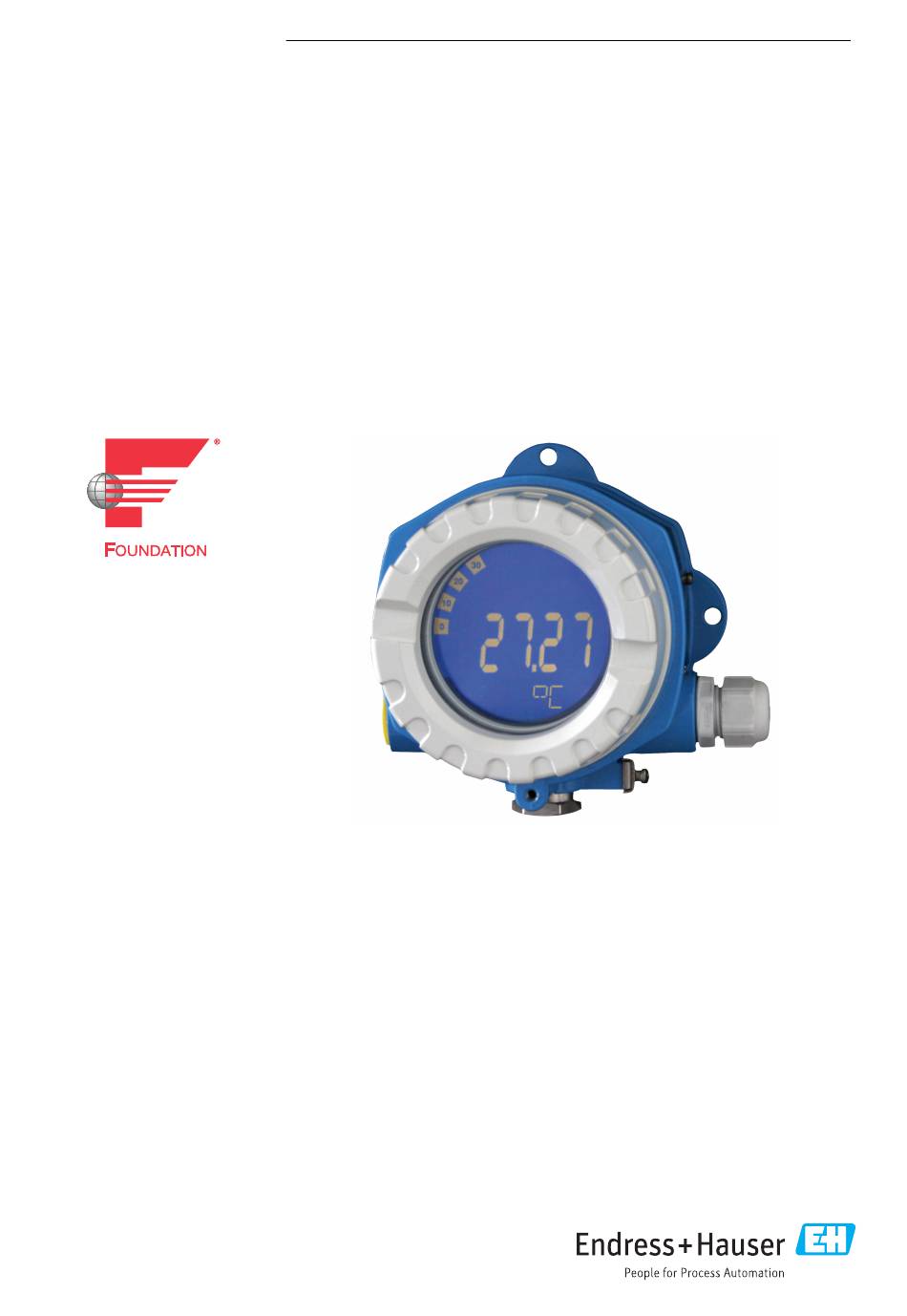

Brief Operating Instructions
RID14

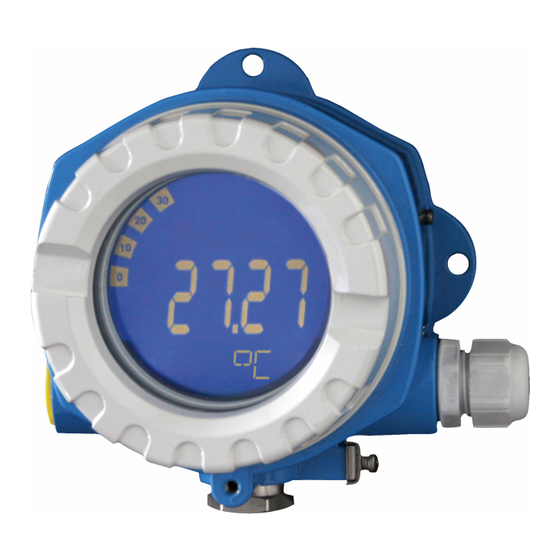

8-channel field indicator
with FOUNDATION Fieldbus™
These Brief Operating Instructions are not a substitute for the
Operating Instructions pertaining to the device.
Detailed information is provided in the Operating Instructions
and other documentation.
Available for all device versions via:
• Internet:
www.endress.com/deviceviewer
• Smartphone/tablet: Endress+Hauser Operations app
Solutions
Services
Advertisement
Table of Contents
Related Manuals for Endress+Hauser RID14
Summary of Contents for Endress+Hauser RID14
