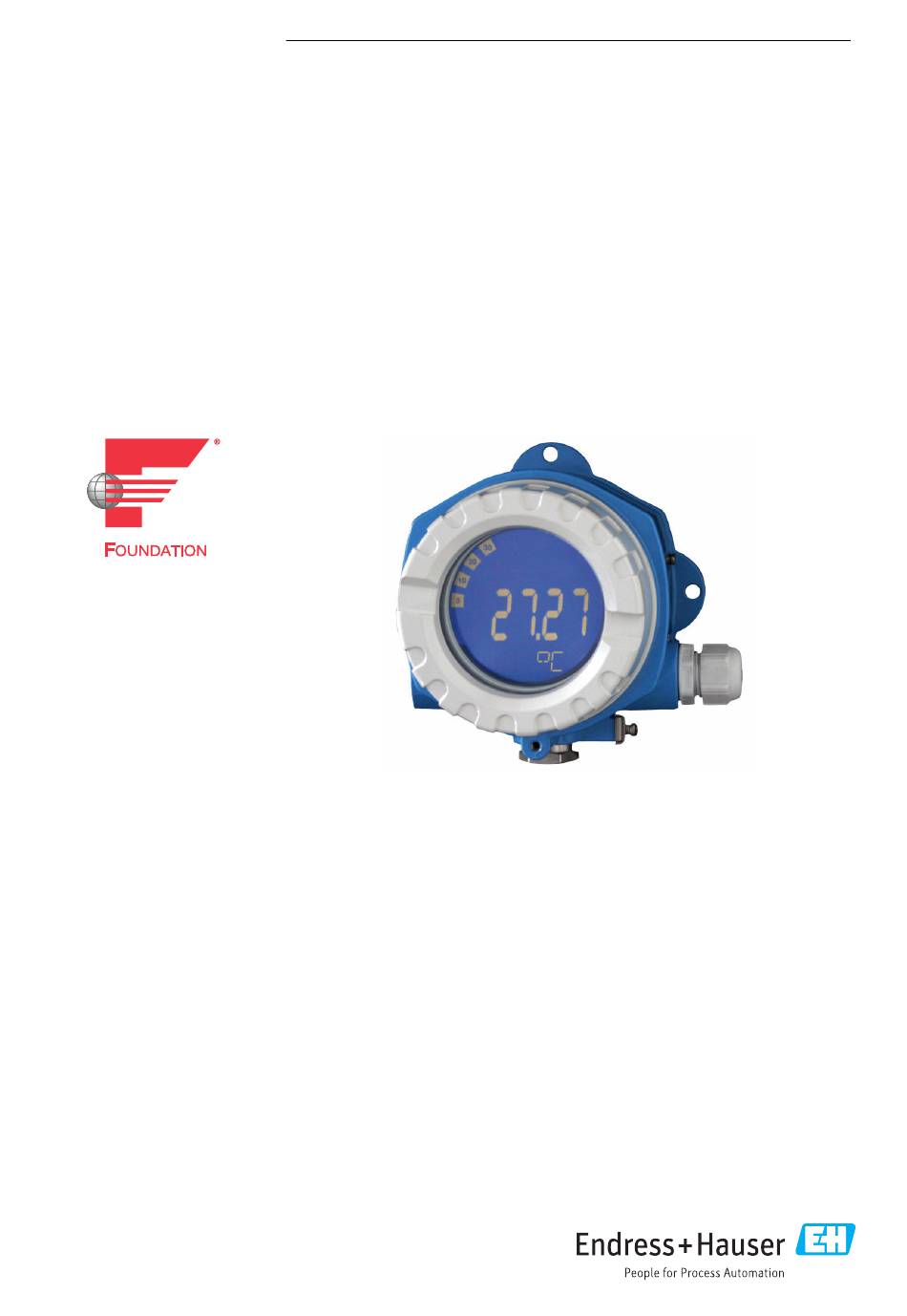

KA00281R/09/EN/15.22-00
71593373
2022-07-28
Products
Brief Operating Instructions

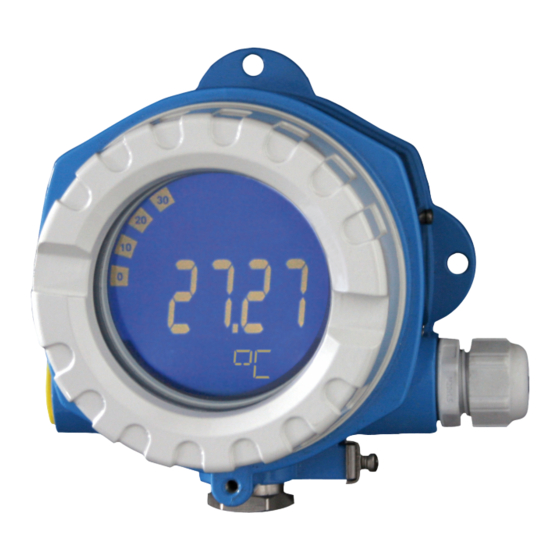

RID14
8-channel field indicator
with FOUNDATION Fieldbus™
These Brief Operating Instructions are not a substitute for the
Operating Instructions pertaining to the device.
Detailed information is provided in the Operating Instructions
and other documentation.
Available for all device versions via:
• Internet: www.endress.com/deviceviewer
• Smartphone/tablet: Endress+Hauser Operations app
Solutions
Services
Advertisement
Table of Contents
Related Manuals for Endress+Hauser RID14
Summary of Contents for Endress+Hauser RID14
- Page 1 These Brief Operating Instructions are not a substitute for the Operating Instructions pertaining to the device. Detailed information is provided in the Operating Instructions and other documentation. Available for all device versions via: • Internet: www.endress.com/deviceviewer • Smartphone/tablet: Endress+Hauser Operations app...
- Page 2 RID14 Order code: XXXXX-XXXXXX Ser. no.: XXXXXXXXXXXX Ext. ord. cd.: XXX.XXXX.XX Serial number www.endress.com/deviceviewer Endress+Hauser Operations App A0023555 Endress+Hauser...
-
Page 3: Table Of Contents
RID14 Table of contents Table of contents About this document ............. . 3 Symbols . - Page 4 About this document RID14 NOTICE This symbol contains information on procedures and other facts which do not result in personal injury. 1.1.2 Electrical symbols Symbol Meaning Symbol Meaning Direct current Alternating current Direct current and alternating current Ground connection A grounded terminal which, as far as the operator is concerned, is grounded via a grounding system.
-
Page 5: Safety Instructions
RID14 Safety instructions 1.1.4 Symbols in graphics Symbol Meaning Symbol Meaning 1, 2, 3,... Item numbers … Series of steps A, B, C, ... Views A-A, B-B, C-C, ... Sections Hazardous area Safe area (non-hazardous area) 1.1.5 Tool symbols Symbol... -
Page 6: Designated Use
It meets general safety standards and legal requirements. It also complies with the EC directives listed in the device-specific EC Declaration of Conformity. Endress+Hauser confirms this by affixing the CE mark to the device. Identification Device designation 3.1.1... -
Page 7: Scope Of Delivery
RID14 Identification Made in Germany 2013 RID14 D-87484 Nesselwang Order code: RID14-XXXX/X Ser. no.: XXXXXXXXXXX Ext. ord. cd.: RID14-XXXXX 9 - 32 V IP66/67 Type 4X Ta = -40 ...+55/70/80°C FW: 1.00.00-[1...1] DevRev: X A0012565 1 Nameplate of the field indicator (example) -
Page 8: Installation
Installation RID14 3.3.4 CSA General Purpose 3.3.5 Certification Foundation Fieldbus™ The field indicator has successfully passed all the tests and is certified and registered by the Fieldbus Foundation. The device meets all the requirements of the following specifications: • Certified in accordance with FOUNDATION Fieldbus™ specification •... -
Page 9: Installation Instructions
RID14 Installation NOTICE Shorter display operating life at higher temperatures ‣ Where possible do not operate the device in the higher temperature range. The display can react slowly at temperatures < –20 °C (–4 °F). The readability of the display is no longer guaranteed at temperatures < –30 °C (–22 °F). - Page 10 Installation RID14 4.3.1 Turning the display Pos. 1 Pos. 2 Pos. 3 Pos. 4 90° 90° 90° A0023724 3 Field indicator, 4 display positions, can be fitted in 90° stages The display unit can be turned in 90 ° stages.
-
Page 11: Post-Installation Check
RID14 Wiring A0011258 4 Mounting the field indicator on a pipe with the mounting bracket for pipe diameters 1.5 to 2.2" Mounting plate Mounting bracket 2 M6 nuts Post-installation check After installing the device, always run the following final checks:... -
Page 12: Connecting The Cable To The Field Indicator
Wiring RID14 NOTICE Electronics can be destroyed if the unit is connected incorrectly ‣ Switch off the power supply before installing or connecting the device. Failure to observe this may result in the destruction of parts of the electronics. ‣... -
Page 13: Connection To Foundation Fieldbus
RID14 Wiring 5.1.1 Quick wiring guide ESD - electrostatic discharge Protect the terminals from electrostatic discharge. Failure to observe this may result in the destruction or malfunction of parts of the electronics. A0012751 FOUNDATION Fieldbus A0012569 6 Terminal assignment... - Page 14 Fieldbus connector Optionally, a fieldbus connector can be screwed into the field housing instead of a cable gland. Fieldbus connectors can be ordered as accessories from Endress+Hauser (see the ' A ccessories' section in the Operating Instructions). The connection technology of FOUNDATION Fieldbus™ allows measuring devices to be connected to the fieldbus via uniform mechanical connections such as T-boxes, junction boxes, etc.
-
Page 15: Degree Of Protection
RID14 Wiring 26.5 mm (1.040") 250 mm (9.84”) 150 mm (5.91”) M20x1.5 / NPT 1/2” 7/8-16 UNC A0012573 8 Connector for connecting to the FOUNDATION Fieldbus™ Pin assignment / color codes Fieldbus connector Blue wire: FF- (terminal 2) Field indicator... -
Page 16: Post-Connection Check
Operating the field indicator RID14 Post-connection check After completing the device' s electrical installation, carry out the following checks: Device condition and specifications Notes Are the device or cables damaged (visual inspection)? Electrical connection Notes Does the supply voltage match the specifications on the nameplate? - Page 17 RID14 Operating the field indicator You can make the following hardware settings for the FOUNDATION Fieldbus™ interface using miniature switches (DIP switches) on the electronics module → 19: Switching the hardware write protection on/off Not used WRITE LOCK A0011638 ...
-
Page 18: Display And Operating Elements
Operating the field indicator RID14 Display and operating elements 6.2.1 Display A0012574 10 LC display of the field indicator Bar graph display in increments of 10% with indicators for underranging (item 1a) and overranging (item 1b) Measured value display, status indication "Bad measured value status"... -
Page 19: Configuration Of The Field Indicator
RID14 Operating the field indicator Configuration of the field indicator NOTICE The device is not explosion-protected when the housing is open ‣ The device must be configured outside the hazardous area. The FF communication system will only function properly if correctly configured. You can obtain special configuration and operating programs from various manufacturers for the configuration. -
Page 20: Device Configuration
Operating the field indicator RID14 To set the DIP switches, proceed as follows: Remove the housing cover and remove the display → 5, 12 Configure the DIP switches. Switch to ON = function enabled, switch to OFF = function disabled. - Page 24 *71593373* 71593373 www.addresses.endress.com...
